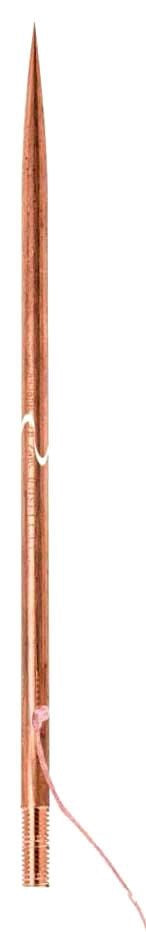

585CCAT2/0 Tower Air Terminal – Copper Clad Steel Lightning Protection

The 585CCAT2/0 Tower Air Terminal is designed to provide reliable lightning protection for towers, antennas, dishes, and tower lighting. Manufactured by Harger, this copper clad steel air terminal offers superior strength and enhanced resistance to wind shear compared to solid copper alternatives. It is suitable for use by electrical distributors and switchgear suppliers seeking robust grounding and lightning protection solutions.

Specifications

• Material: 10 Mil Copper Clad Steel
• Overall Dimension: 5/8 Inch Diameter x 5 Foot Length
• Thread Size: 5/8 Inch-11 UNC-2A x 2 Inch
• Conductor Size: 25 Foot Stranded-19 2/0 AWG Copper
• Product Weight: 15.4 lbs
• Mounting: Mounted on top or sides of towers
• Includes: (2) Stainless Steel Jam Nut, Lock Washer, and Flat Washer

Features

• Copper clad steel construction provides superior strength and durability
• Less susceptible to wind shear than solid copper air terminals
• Tail conductor exothermically welded to air terminal for secure grounding
• Complete with stainless steel hardware for corrosion resistance
• Designed to protect tower lighting, antennas, and dishes from direct lightning strikes
