5836CUAT Air Terminal - Copper Lightning Protection

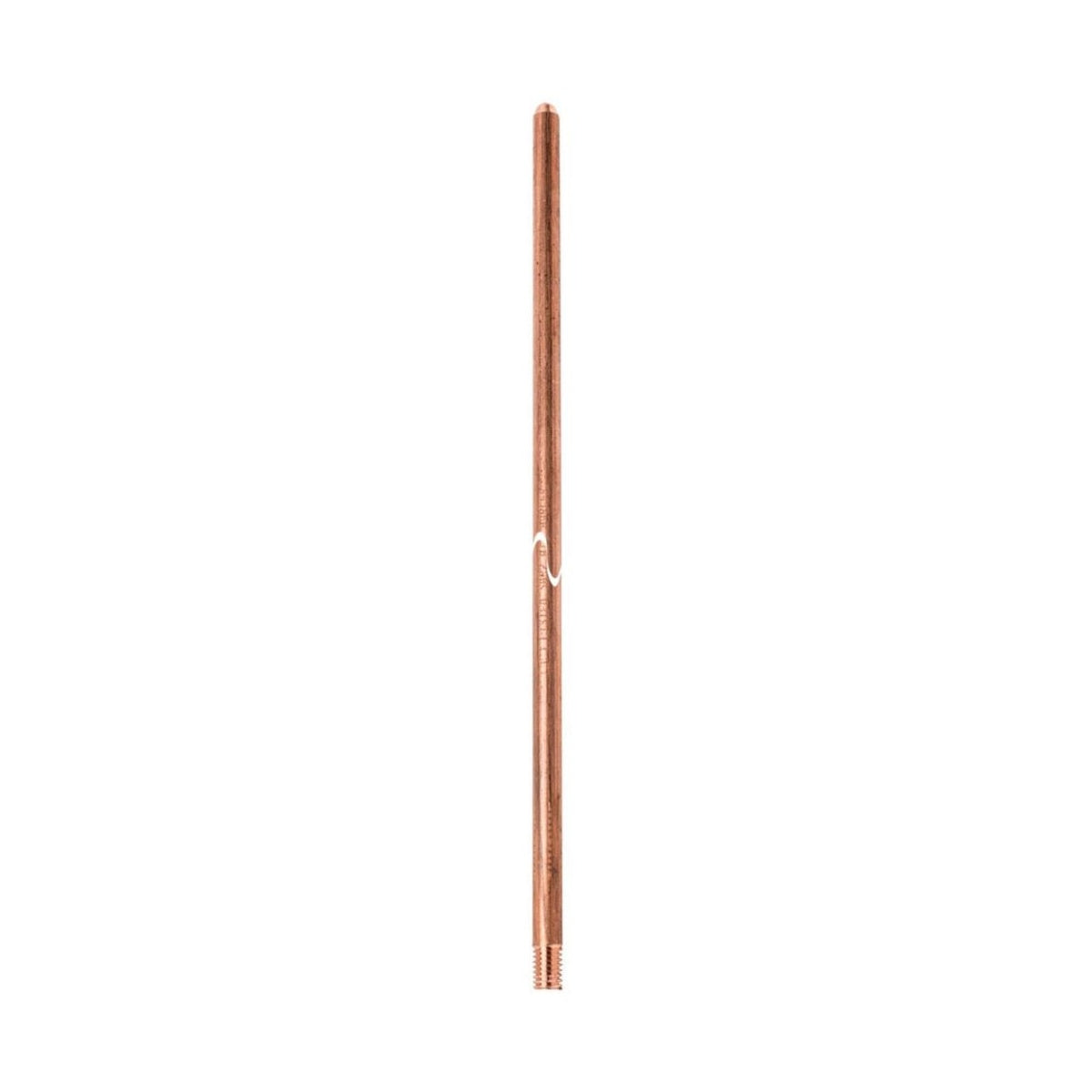

The 5836CUAT Air Terminal by Harger is a Class II copper air terminal designed for lightning protection on structures exceeding 75 feet in height. Manufactured from highly conductive electrolytic tough pitch copper alloy 110, this air terminal ensures reliable grounding and lightning dissipation, making it suitable for electrical distributors and lighting solutions providers focused on wire and cable and switchgear applications.

Specifications

• Material: Copper Alloy 110
• Class: II
• Diameter: 5/8 Inch (0.625 in)
• Length: 36 Inches
• Thread Size: 5/8 Inch-11 UNC-2A
• Product Weight: 3.68 lbs
• Applicable Standards: NFPA 780, UL (Canada and US)
• Manufacturer: Harger
• Manufacturer Part #: 5836CUAT
• Application: For use on structures greater than 75' in height

Features

• Constructed from highly conductive electrolytic tough pitch copper with conductivity greater than 99% when annealed
• Standard UNC threads for compatibility with extension rods and couplers
• Tapered tip with rounded point for effective lightning dissipation
• Complies with NFPA 780 requirements for air terminal height and support
• Designed to be securely mounted to prevent overturning or displacement
