5824CUATT Air Terminal – Lightning Protection Solutions

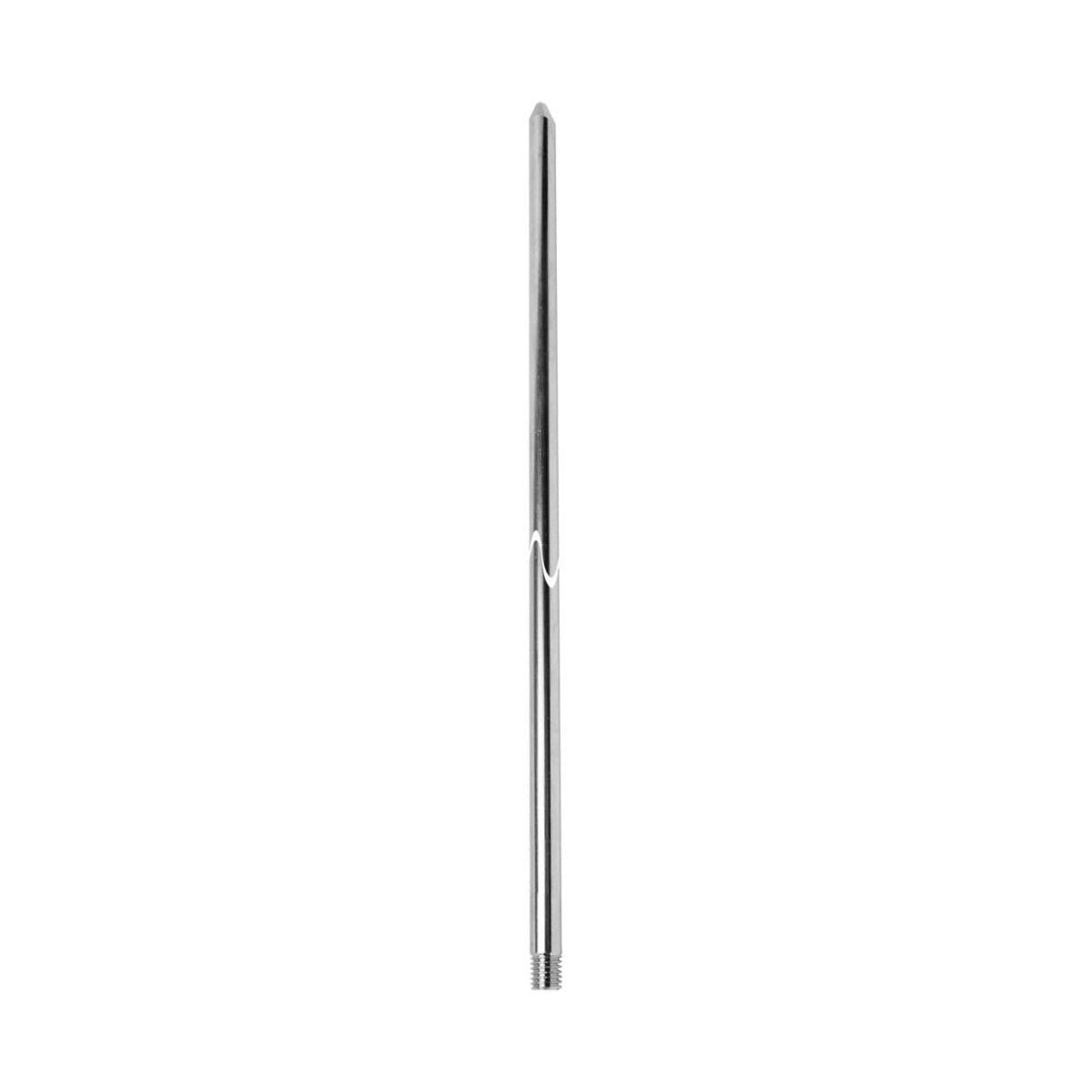

The 5824CUATT Air Terminal by Harger is a Class II tapered tip air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured from tin-plated 110 copper alloy, it ensures high conductivity and durability. This air terminal is suitable for use by electrical distributors and switchgear suppliers in lighting solutions and wire and cable systems requiring reliable lightning protection components.

Specifications

• Material: Tin Plated 110 Copper Alloy
• Class: II
• Overall Dimensions: 0.625 Inch Diameter x 24 Inch Length
• Thread Size: 5/8 Inch-11 UNC-2A
• Product Weight: 2.45 lbs
• Application: For use on structures greater than 75' in height
• Manufacturer: Harger
• Manufacturer Part #: 5824CUATT
• Standards: NFPA 780, UL (Canada and US) Listed

Features

• Tapered tip with rounded point for effective lightning strike interception
• Highly conductive electrolytic tough pitch copper alloy with conductivity greater than 99% when annealed
• Standard UNC threads for compatibility and secure attachment
• Designed to be supported against overturning or displacement per NFPA 780 guidelines
• Suitable for integration with extension rods and couplers for longer installations
