5824CUATN Air Terminal – Lightning Protection Solutions

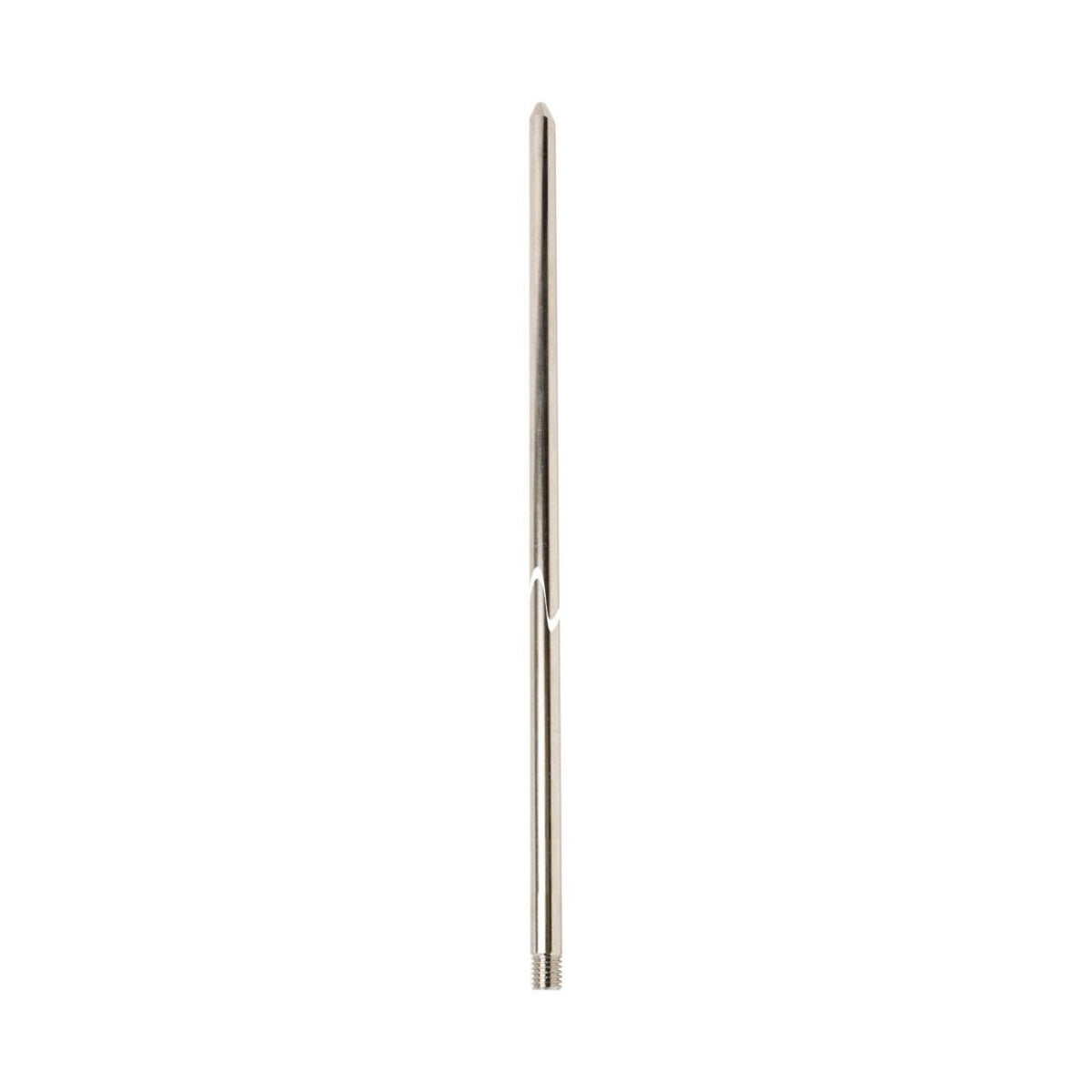

The 5824CUATN Air Terminal by Harger is a Class II tapered tip air terminal designed for use on structures exceeding 75 feet in height. Manufactured from nickel-plated 110 copper alloy, this air terminal provides reliable lightning protection and is suitable for electrical distributors and lighting solutions requiring durable wire and cable grounding components. It features a rounded point tip and standard 5/8 inch-11 UNC-2A threading for secure attachment.

Specifications

• Material: Nickel Plated 110 Copper Alloy
• Class: II
• Diameter: 5/8 inch (0.625 in)
• Length: 24 inches
• Thread Size: 5/8 inch-11 UNC-2A
• Weight: 2.45 lbs
• Applicable Standards: NFPA 780, UL (Canada and US)
• Application: For use on structures greater than 75 feet in height

Features

• Tapered tip with rounded point for effective lightning strike capture
• Constructed from highly conductive electrolytic tough pitch copper alloy with nickel plating for corrosion resistance
• Standard UNC threads ensure compatibility with extension rods and couplers
• Complies with NFPA 780 air terminal height and support requirements
• Designed to be secured against overturning or displacement by attachment or bracing
