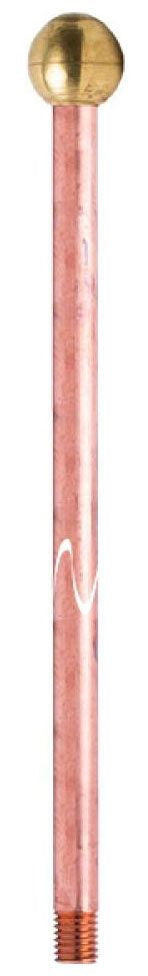

5824CSTAT Air Terminal - Copper Safety Tipped Air Terminal

The 5824CSTAT Air Terminal is a Class II copper safety tipped air terminal designed for use on structures greater than 75 feet in height. Manufactured by Harger, this product serves as a critical component in lightning protection systems, suitable for electrical distributors and switchgear suppliers requiring reliable and UL-listed air terminals. Its robust construction and design ensure effective lightning strike interception and grounding.

Specifications

• Material: Copper Alloy 110
• Overall Dimensions: 5/8 inch Diameter x 24 inch Length
• Tip Diameter: 3/4 inch
• Thread Size: 5/8 inch-11 UNC-2A
• Class: II
• Product Weight: 2.45 lbs
• Applicable Standard: UL Listed (Canada and US)
• Width: 0.625 inches
• Height: 0.625 inches
• Length: 24 inches

Features

• Rounded safety tip design for enhanced protection against accidental falls
• Constructed from electrolytic tough pitch copper alloy for durability and conductivity
• Utilizes standard UNC threads for compatibility with flexible adapters
• UL Listed for compliance with safety standards in North America
• Suitable for use on structures of all heights, especially those exceeding 75 feet
