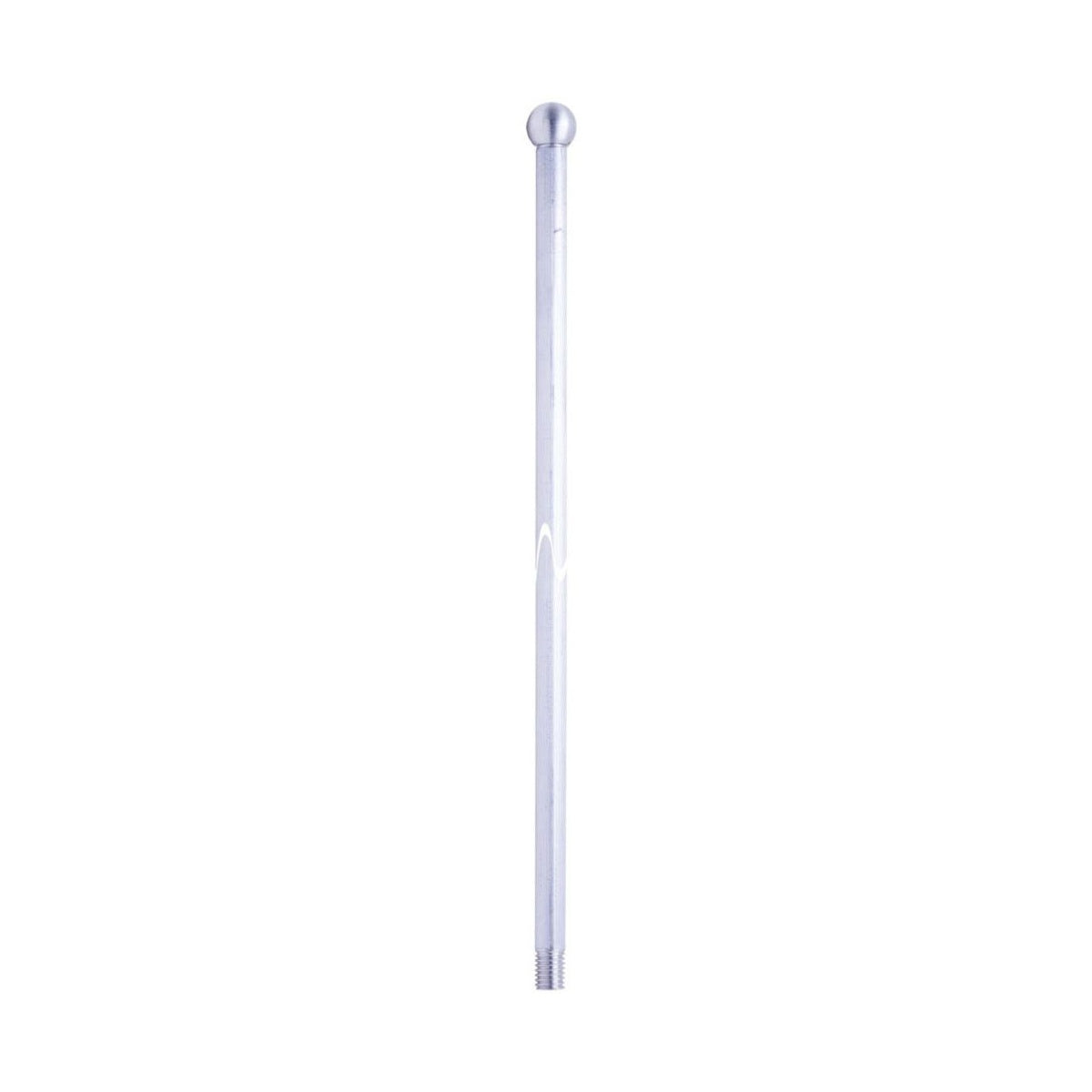

5818ASTAT Air Terminal – Aluminum Safety Tipped Lightning Protection

The 5818ASTAT Air Terminal is a Class II aluminum air terminal designed for lightning protection on structures of all heights, specifically suited for use on structures greater than 75 feet. Manufactured by Harger, this air terminal features a rounded safety tip to enhance protection against accidental falls. It is compatible with flexible adapters and incorporates standard UNC threads for secure installation. This product is UL listed for both Canada and the US, ensuring compliance with applicable safety standards.

Specifications

• Material: Aluminum
• Class: II
• Overall Dimension: 5/8 inch Diameter x 18 inch Length
• Tip Diameter: 3/4 inch
• Thread Size: 5/8 inch-11 UNC-2A
• Product Weight: 0.58 lbs
• Width: 0.625 in
• Height: 0.625 in
• Length: 18 in
• Application: For use on structures greater than 75' in height
• UL Listed: Canada and US

Features

• Highly conductive aluminum construction
• Rounded safety tip reduces risk of accidental injury
• Standard UNC threaded connection for compatibility with flexible adapters
• Class II rating suitable for all structure heights
