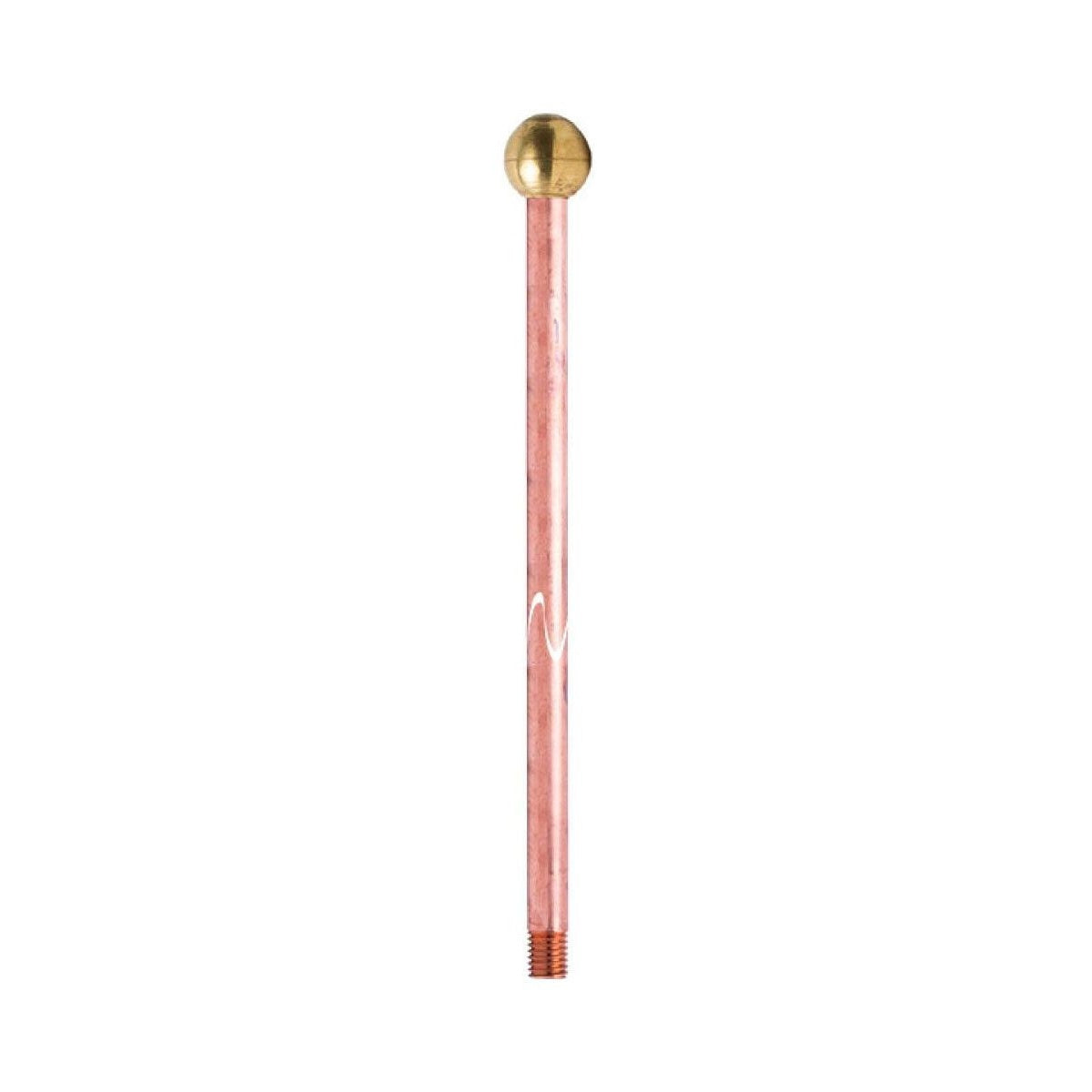

5816CSTAT Air Terminal Copper Safety Tipped Lightning Protection

The 5816CSTAT Air Terminal is a Class II lightning protection air terminal designed for use on structures greater than 75 feet in height. Manufactured by Harger, this copper safety tipped air terminal is suitable for electrical distributors and switchgear suppliers requiring reliable lightning protection components. It features a rounded safety tip to reduce accidental hazards and is compatible with flexible adapters in lighting solutions and wire and cable systems.

Specifications

• Material: Copper Alloy 110
• Overall Dimensions: 5/8 Inch Diameter x 16 Inch Length
• Tip Diameter: 3/4 Inch
• Thread Size: 5/8 Inch-11 UNC-2A
• Class: II
• Product Weight: 1.8 lbs
• Application: For use on structures greater than 75 feet in height
• Certification: UL Listed (Canada and US)

Features

• Rounded safety tip for enhanced protection against accidental falls
• Manufactured from electrolytic tough pitch copper alloy 110 for durability
• Utilizes standard UNC threads for secure attachment
• Designed for compatibility with flexible adapters
