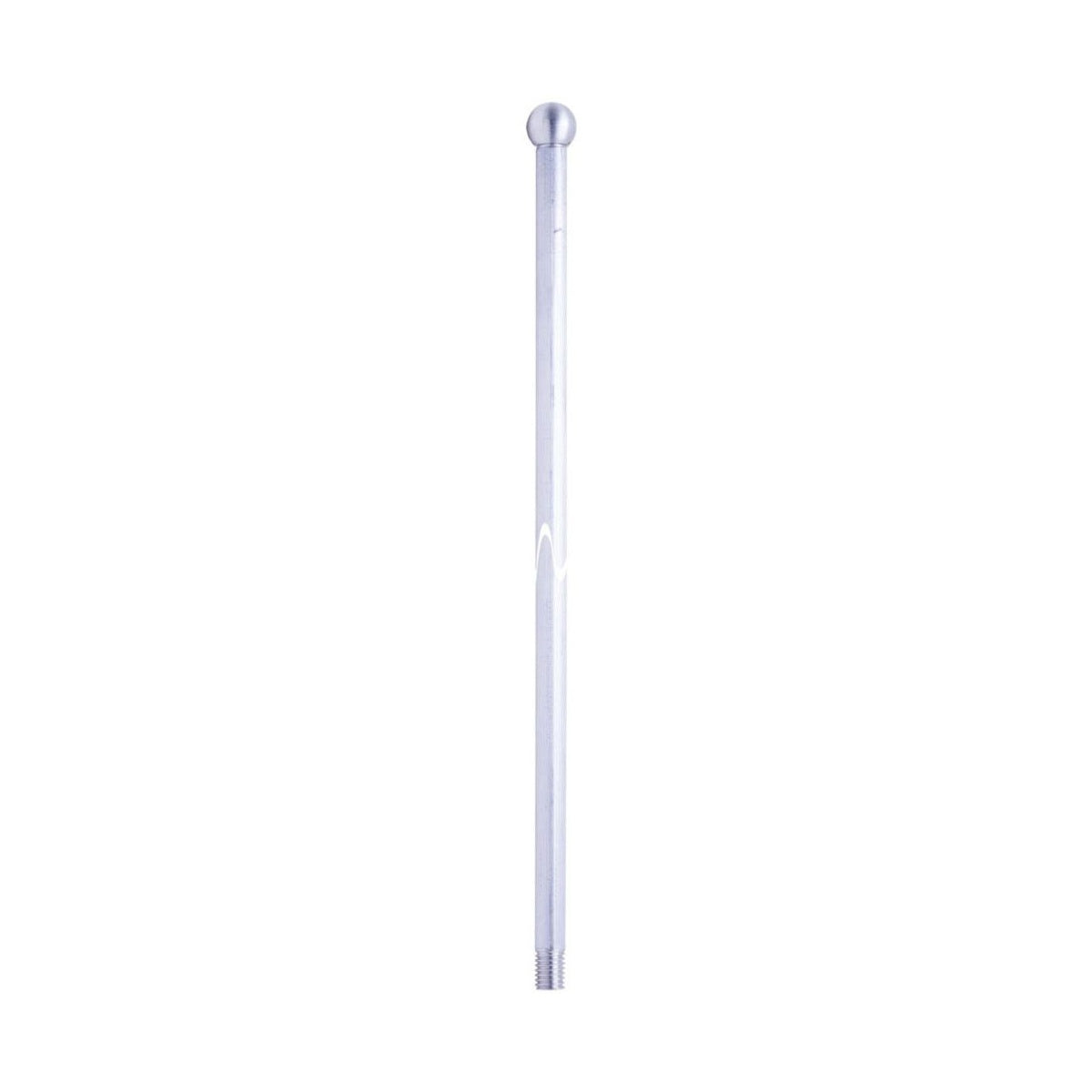

5816ASTAT Air Terminal - Lightning Protection Component

The 5816ASTAT Air Terminal is a Class II aluminum air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured by Harger, this component is suitable for use by electrical distributors and switchgear suppliers as part of comprehensive lightning protection and grounding systems. Its rounded safety tip minimizes personnel injury risks, making it appropriate for industrial and commercial lighting solutions and wire and cable installations requiring reliable surge protection.

Specifications

• Material: Aluminum
• Class: II
• Overall Dimension: 5/8 Inch Diameter x 16 Inch Length
• Tip Diameter: 3/4 Inch
• Thread Size: 5/8 Inch-11 UNC-2A
• Product Weight: 0.53 lbs
• Application: For use on structures greater than 75' in height
• Applicable Standard: UL (Canada and US)

Features

• Rounded safety tip reduces risk of accidental falls
• Highly conductive aluminum construction for efficient lightning dissipation
• Standard UNC threads ensure compatibility with flexible adapters
• UL listed for use in North America
