5812ASTAT Air Terminal Lightning Protection

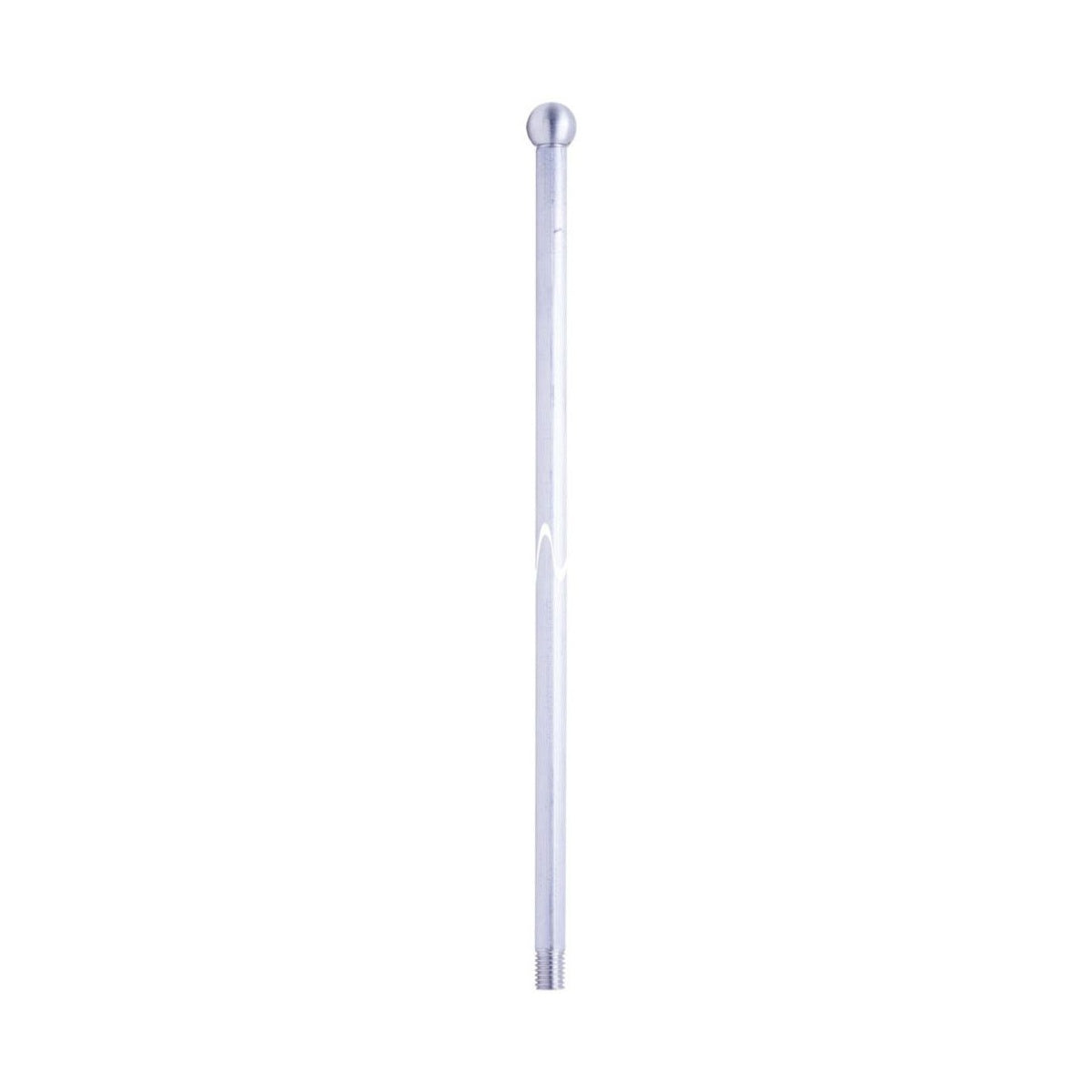

The 5812ASTAT is a Class II aluminum safety tipped air terminal designed for lightning protection on structures greater than 75 feet in height. Manufactured by Harger, this air terminal is intended for use by electrical distributors and switchgear suppliers as part of comprehensive lightning protection and grounding systems. It features a rounded safety tip to minimize personnel injuries from accidental contact and is compatible with flexible adapters for enhanced safety.

Specifications

• Material: Aluminum
• Class: II
• Diameter: 5/8 Inch (0.625 in)
• Length: 12 Inches
• Tip Diameter: 3/4 Inch
• Thread Size: 5/8 Inch-11 UNC-2A
• Weight: 0.37 lbs
• Applicable Standards: UL Listed (Canada and US)
• Manufacturer Part #: 5812ASTAT
• Application: For use on structures greater than 75 feet in height

Features

• Highly conductive aluminum construction for effective lightning dissipation
• Rounded 3/4" safety tip reduces risk of injury from accidental falls
• Standard UNC threads for easy installation and compatibility
• UL listed for compliance with North American safety standards
• Designed for use with flexible adapters to enhance installation safety
