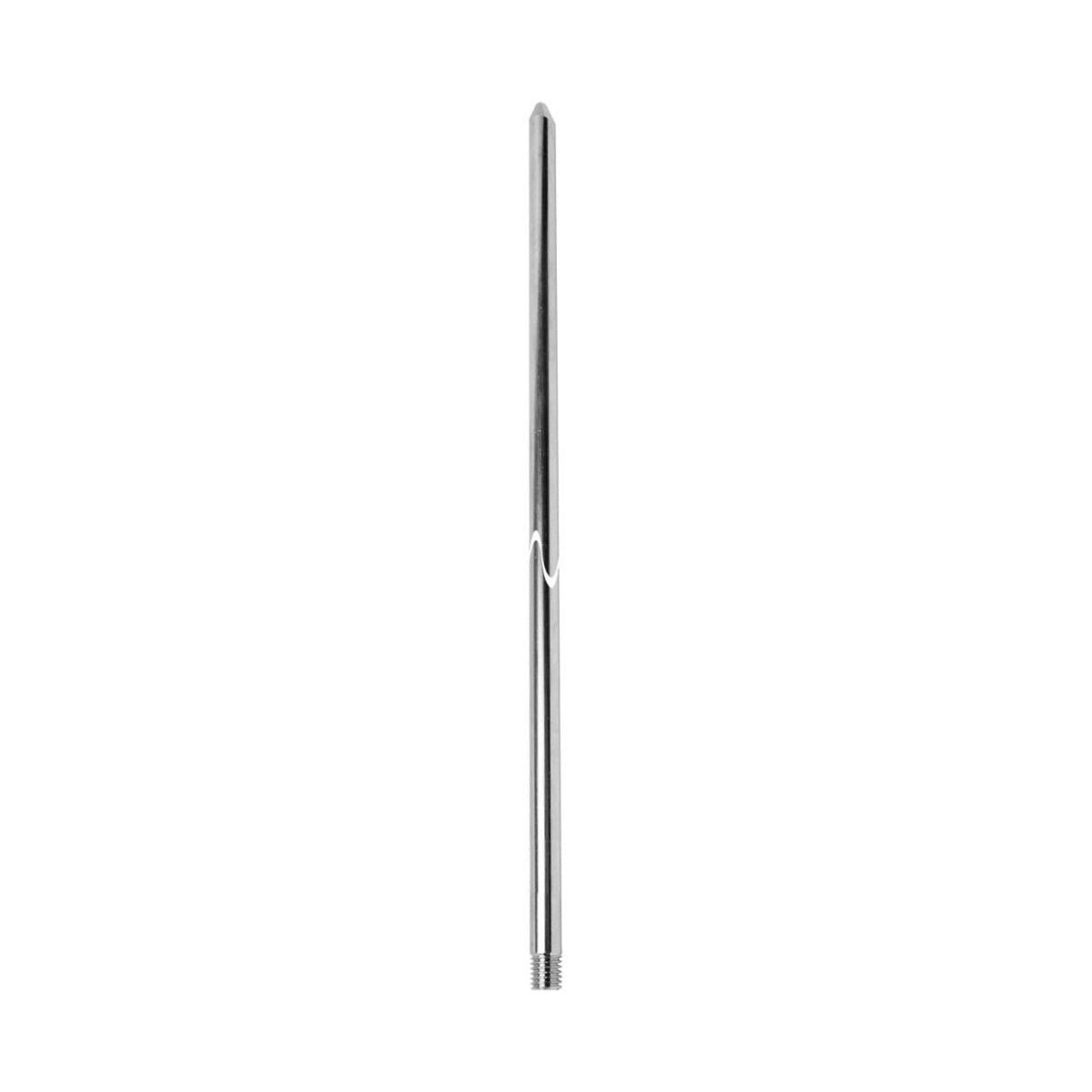

5810CUATT Air Terminal – Lightning Protection Component

The 5810CUATT Air Terminal is a Class II lightning protection device designed for use on structures exceeding 75 feet in height. Manufactured by Harger, this air terminal is constructed from tin-plated 110 copper alloy, providing high conductivity and durability. It is suitable for electrical distributors and lighting solutions requiring reliable wire and cable grounding and lightning strike mitigation. The product complies with NFPA 780 and UL standards for both Canada and the US, ensuring safety and performance in critical applications.

Specifications

• Material: Tin Plated 110 Copper Alloy
• Class: II
• Overall Dimension: 5/8 Inch Diameter x 10 Inch Length
• Thread Size: 5/8 Inch-11 UNC-2A
• Application: For use on structures greater than 75' in height
• Product Weight: 0.9750 lbs
• Width: 0.625 in
• Height: 0.625 in
• Length: 10 in
• Manufacturer: Harger
• Manufacturer Part #: 5810CUATT
• Standards: NFPA 780, UL (Canada and US)

Features

• Highly conductive electrolytic tough pitch copper alloy with conductivity greater than 99% when annealed
• Standard UNC threads for secure installation
• Tapered tip with rounded point for optimal lightning strike interception
• Designed to be secured against overturning or displacement per NFPA 780 guidelines
• Suitable for integration with extension rods and couplers for longer air terminal configurations
