5810BCCATTSE Specialty Air Terminal Lightning Protection

The 5810BCCATTSE Specialty Air Terminal by Harger is designed for use on structures greater than 75 feet in height, providing reliable lightning protection. This bent copper clad air terminal is suitable for electrical distributors and lighting solutions requiring robust grounding components. It is especially applicable for protecting security cameras mounted on poles, integrating effectively with wire and cable grounding systems and switchgear supplier installations.

Specifications

• Material: Copper Clad
• Class: II
• Overall Dimension: 5/8 Inch Diameter x 7 Foot Length x 0.563 Inch Thickness
• Thread Size: 5/8 Inch-11 UNC x 6 Inch
• Ground Rod Size: 5/8 Inch x 10 Foot
• Product Weight: 9 lbs
• Width: 1 Inch
• Height: 1 Inch
• Length: 1 Inch

Features

• Includes (2) Jam Nuts, (2) Lock Washers, and (2) Flat Washers for secure installation
• Manufactured from 5/8" x 10' copper clad ground rod for durability and corrosion resistance
• Thread size designed for compatibility with standard grounding hardware

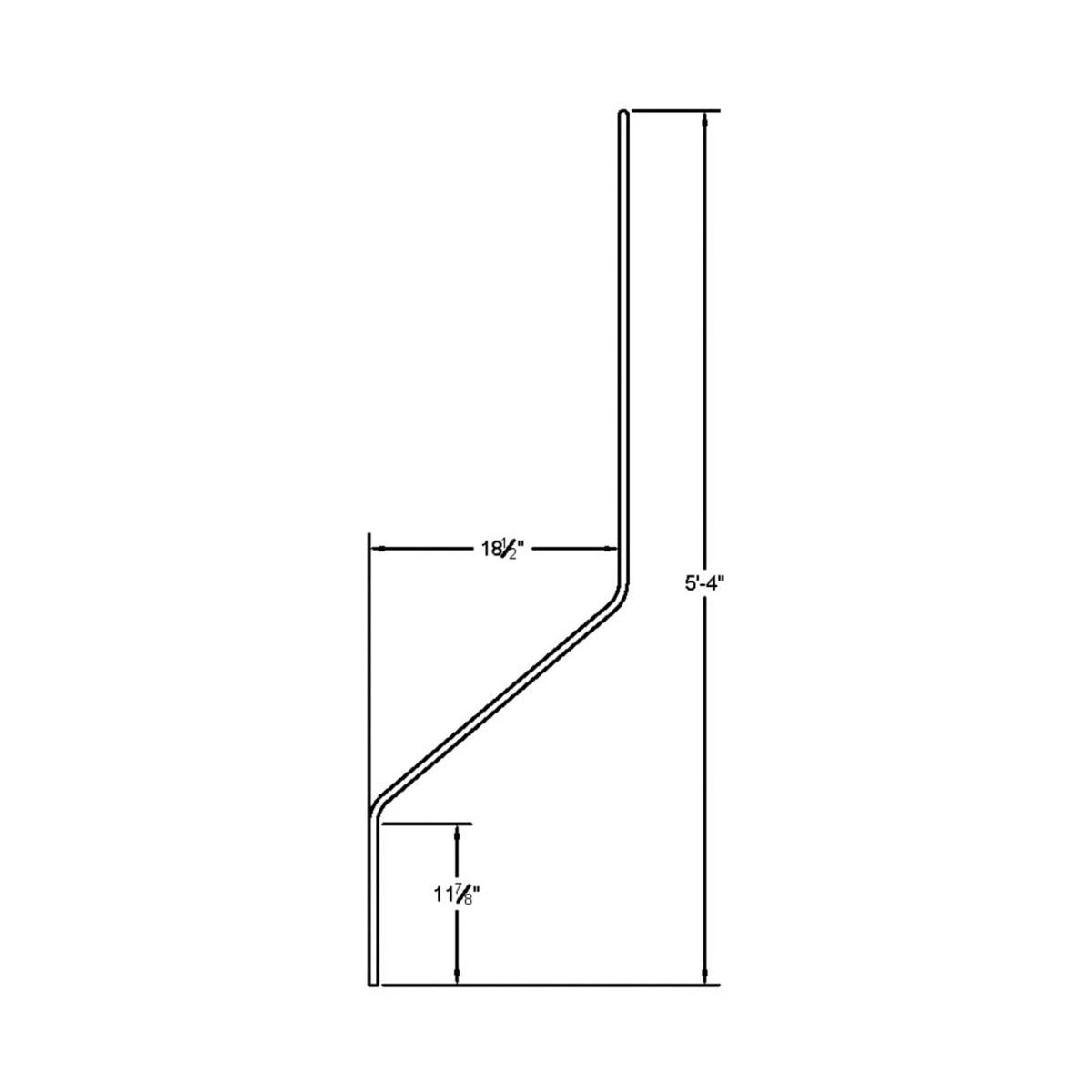

• Specially bent design to accommodate mounting on tall structures and poles
