55876701 - Alumaflex™ Type MC AL Feeder THHN/THWN-2 Conductors
SKU: #258492
Part: #55876701
UPC: 032886068003
55876701 - Alumaflex™ Type MC AL Feeder THHN/THWN-2 Conductors
SKU: #258492
Part: #55876701
UPC: 032886068003
Description

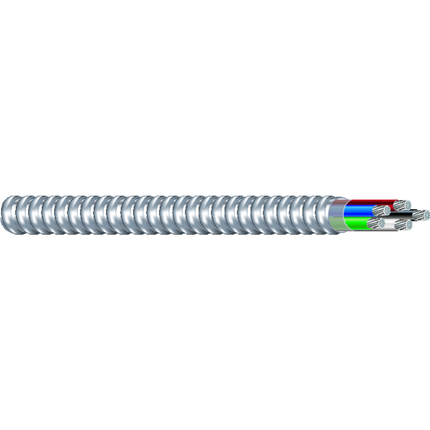

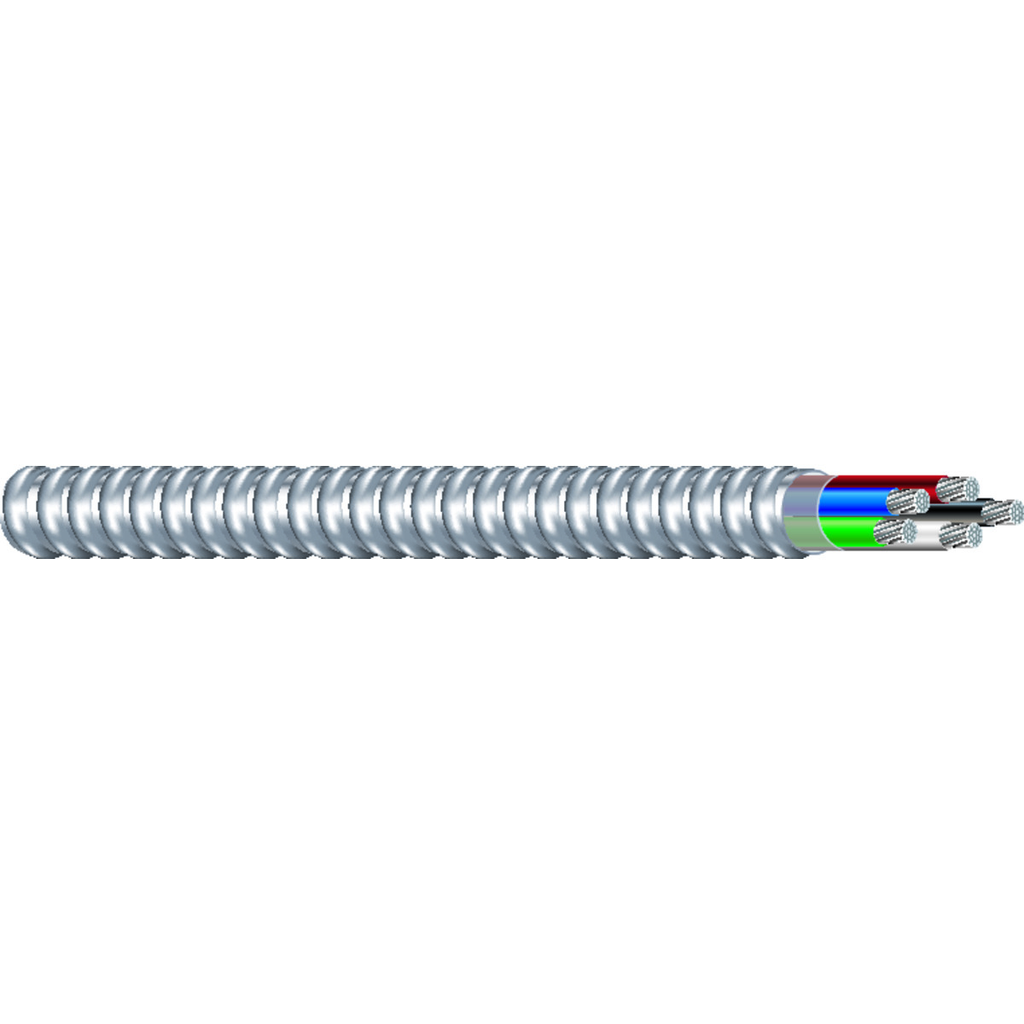

55876701 - Alumaflex™ Type MC AL Feeder THHN/THWN-2 Conductors Cable
This Southwire Alumaflex™ Type MC AL Feeder cable features 3/0-3 AWG AlumaFlex™ THHN/THWN-2 insulated singles with 8000 series Triple E™ aluminum alloy conductors and a bare AlumaFlex™ aluminum alloy grounding conductor. Designed for electrical distributors and wire and cable applications, it provides reliable feeder wiring solutions with lightweight aluminum interlocked armor. The cable is UL Listed and rated for 600 volts, suitable for commercial and industrial electrical installations.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: 55876701
- Voltage Rating: 600 Volts
- Conductor Material: 8000 series Triple E™ Aluminum Alloy
- Insulation: THHN/THWN-2
- Grounding Conductor: Bare AlumaFlex™ Aluminum Alloy
- Armor: Lightweight Aluminum Interlocked Armor
- Dimensions (W x H x L): 31.0 in x 45.0 in x 45.0 in
- Product Weight: 954.17 lbs
- Country of Origin: United States
- Made in USA: Yes
Features
- Lightweight aluminum interlocked armor for ease of handling and installation
- UL Listed for safety and compliance
- Suitable for feeder applications in commercial and industrial electrical systems
- Durable 8000 series Triple E™ aluminum alloy conductors for enhanced performance
