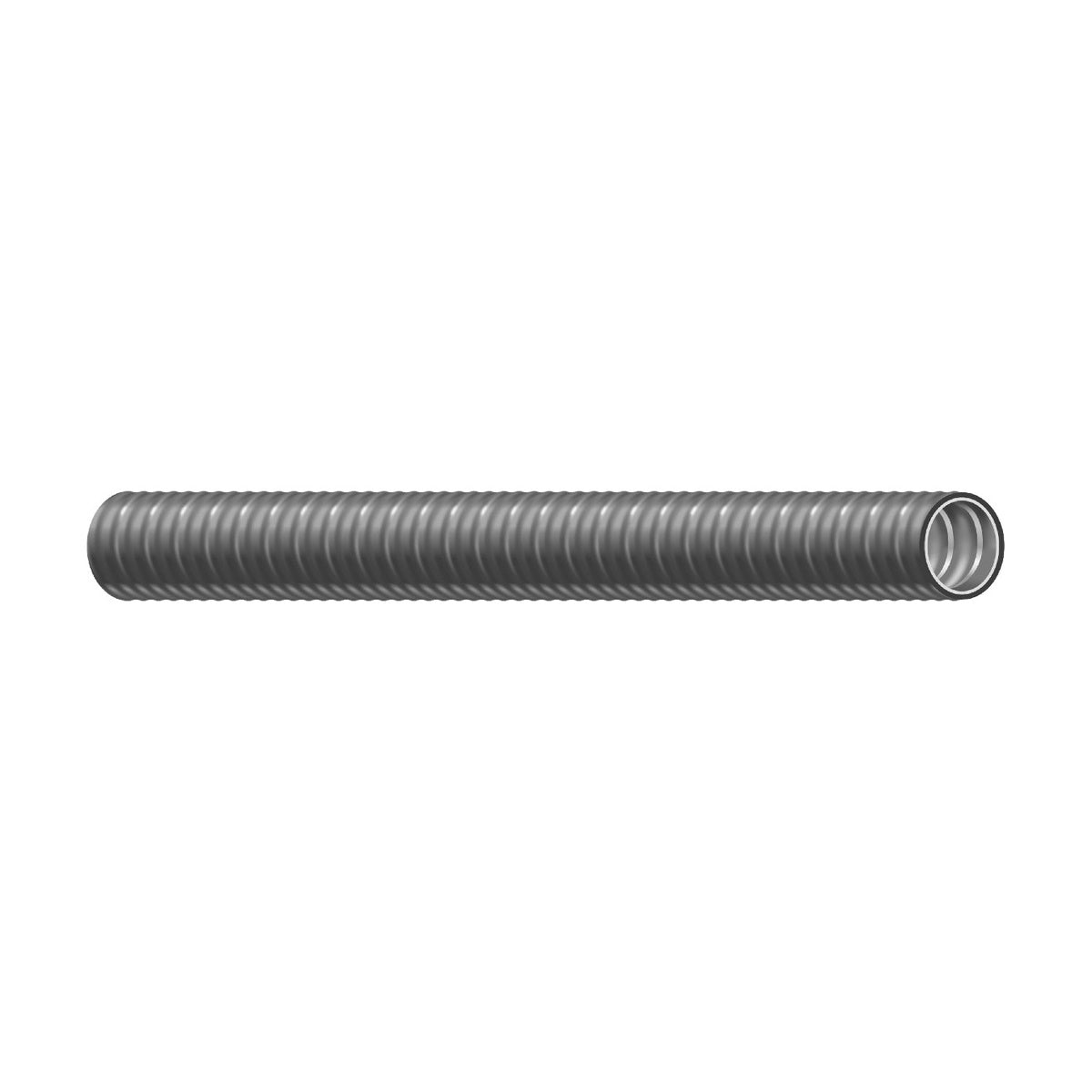

55093003 - Type UL Flexible Metal Conduit for Electrical Wiring

The 55093003 Type UL Flexible Metal Conduit (Titan®2 Type UL LFMC) is designed for robust protection and routing of electrical wiring in commercial and industrial applications. Manufactured by Southwire, this conduit features a heavy gauge, corrosion-resistant, hot-dipped galvanized steel core with a flame retardant, flexible PVC jacket. It is suitable for use by electrical distributors and switchgear suppliers requiring durable wire and cable protection solutions.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 55093003
• Product Weight: 60.0000 lbs
• Dimensions (inches): Width 6.68, Height 28.25, Length 28.25
• Country of Origin: United States
• Made in USA: Yes
• UPC: 032886042430

Features

• Core constructed with spiral wound heavy gauge galvanized steel strip for corrosion resistance
• 3/8" to 1-1/4" sizes feature square locked steel strip with integral copper bonding strip
• 1-1/2" to 4" sizes feature fully interlocked steel strip core
• Flame retardant, flexible PVC jacket resists oils, mild acids, and sunlight exposure
• Available in grey jacket color; other colors available subject to minimum order quantities

Downloads & Links

• Cutsheet
