55050, Straight Blade Power Receptacle – Power Receptacle

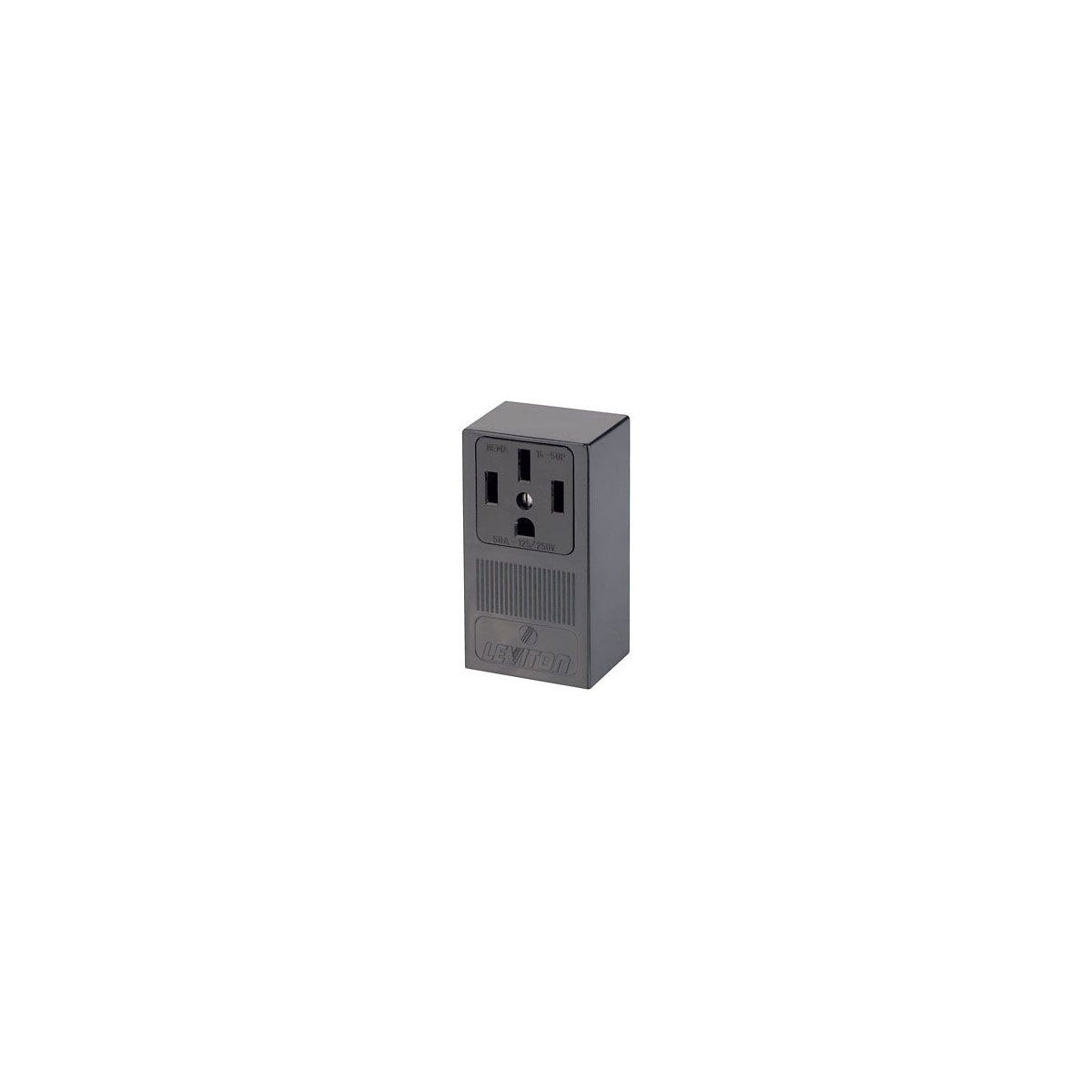

The Leviton 55050 Straight Blade Power Receptacle is a durable, industrial-grade electrical device designed for surface mounting applications. It supports 50 amperes at 125/250 volts with a NEMA 14-50R configuration, suitable for high-demand power distribution in commercial and industrial environments. This power receptacle is ideal for electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers requiring reliable grounding and heavy-duty performance.

Specifications

• Amperage: 50 amperes
• Voltage: 125/250 VAC
• NEMA: 14-50R
• Number of Poles: 3
• Wire: 4
• Dielectric Voltage: 2000 volts
• Horsepower Rating: 3 horse power
• Grounding: Grounding
• Operating Temperature: -40°C to 60°C
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Color: Black
• Flammability Class: Rated V-2 per UL 94
• Product Weight: 0.8400 lbs
• Strap Material: Galvanized Steel

Features

• Heavy-gauge, double-wire copper alloy contacts ensure durability and reliable conductivity
• Terminals feature ID markings for correct and speedy wiring
• Side wired with brass-hot, green-ground, and silver-neutral terminal identification
• Industrial grade construction suitable for demanding electrical installations
• Temperature rise limited to a maximum of 30°C after 50 cycles at 150% rated current
• Ratings permanently marked on device for easy identification
• Complies with ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, and UL498 standards
• 10-year limited warranty
