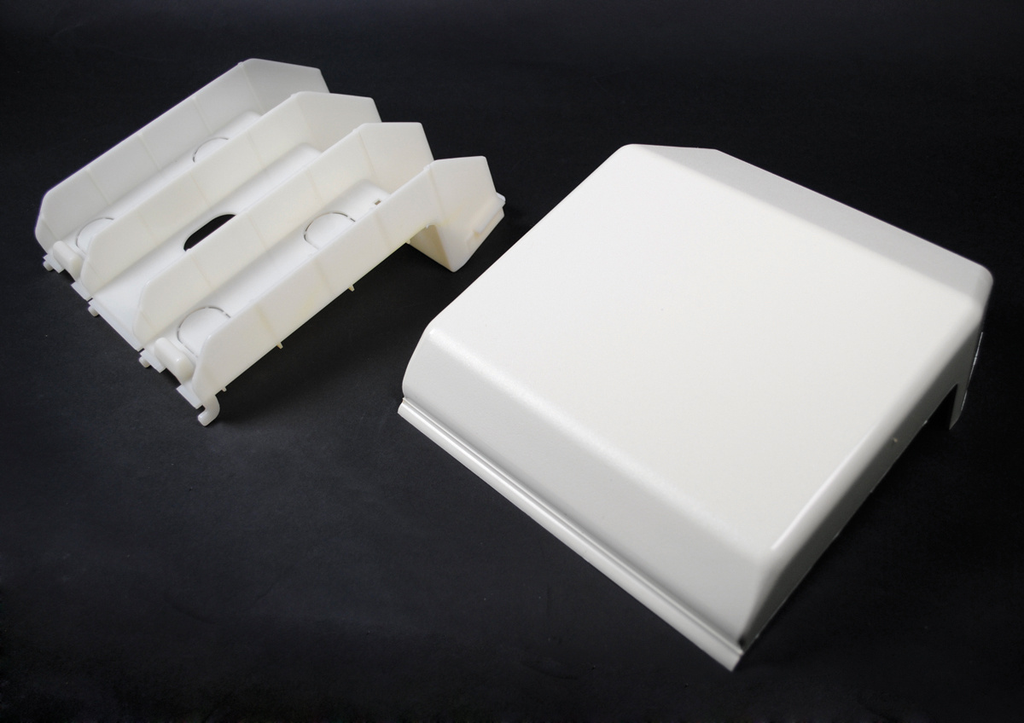

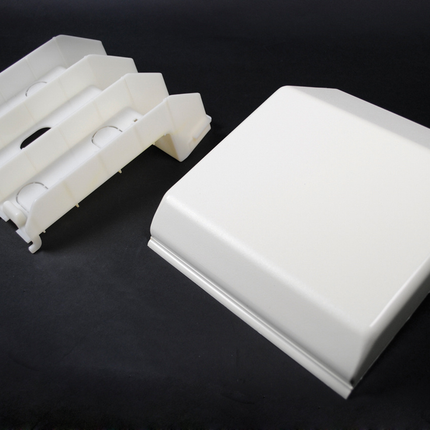

5500 Tee/Take Off Connector Fitting - Raceway Connector

The 5500 Tee/Take Off Connector Fitting from Wiremold is designed for branching raceway at right angles within the 5500 Series Raceway system. This fitting provides efficient wire and cable management solutions suitable for data, voice, A/V, and power applications. It is ideal for use in commercial and institutional settings such as schools and office buildings, supporting large cable and wire requirements. As a component of a trusted electrical distributor’s product line, it integrates seamlessly with existing wire and cable infrastructure.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5515-WH
• Dimensions: Length 8.187 in, Width 9.125 in, Depth 3.062 in
• Product Weight: 1.6 lbs
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776519044
• Order Minimum: 1 unit

Features

• Enables branching of raceway at right angles for flexible cable routing
• Compatible with 5500 Series Surface Nonmetallic Raceway system
• Constructed for use in wire and cable management for data, voice, A/V, and power circuits
• Supports large cable fill requirements typical in institutional and commercial environments
• Simple installation by snapping to raceway base and securing with screws
• Designed to maintain cable bend radius and organization within raceway system
