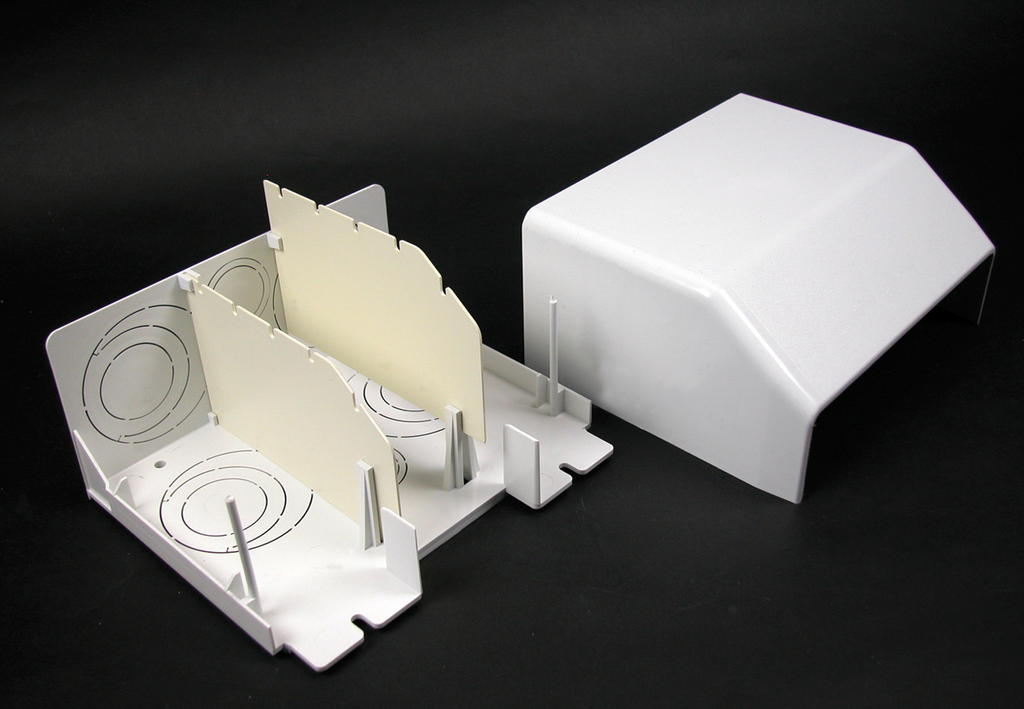

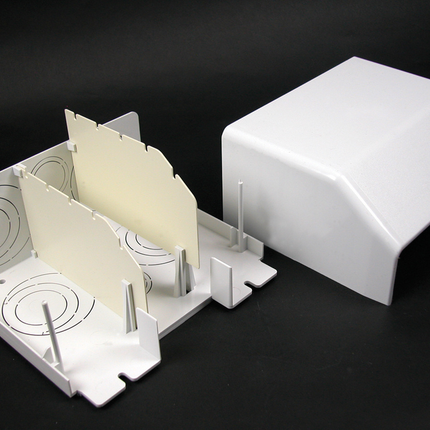

5500 Entrance End Fitting - Wire and Cable Management Raceway

The 5500 Entrance End Fitting by Wiremold is designed to provide efficient wire and cable management for data, voice, A/V, and power applications. As part of the 5500 Series Raceway system, it supports large cable and wire requirements commonly found in schools, office buildings, and institutional environments. This fitting facilitates the feed of raceways from larger conduits, ensuring organized and compliant wiring solutions for electrical distributors and lighting solutions providers.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5510D-WH
• Product Weight: 1.2 lbs
• Dimensions: Length 5.812 in, Height 6.875 in, Depth 3.75 in
• Country of Origin: United States
• Made in USA: Yes
• Order Minimum: 1 unit
• UPC: 786776519013

Features

• Feeds raceway from 3/4", 1", 1 1/2", and 2" trade size knockouts on end and back
• Includes two removable dividers for flexible cable management
• Snap-on cover overlaps raceway cover for secure installation
• Compatible with 5500 Series Raceway system, supporting large cable capacity in a low profile design
• Ideal for use in environments requiring organized wire and cable routing, including institutional and commercial buildings
• Durable, paintable PVC construction for easy customization and cleaning
