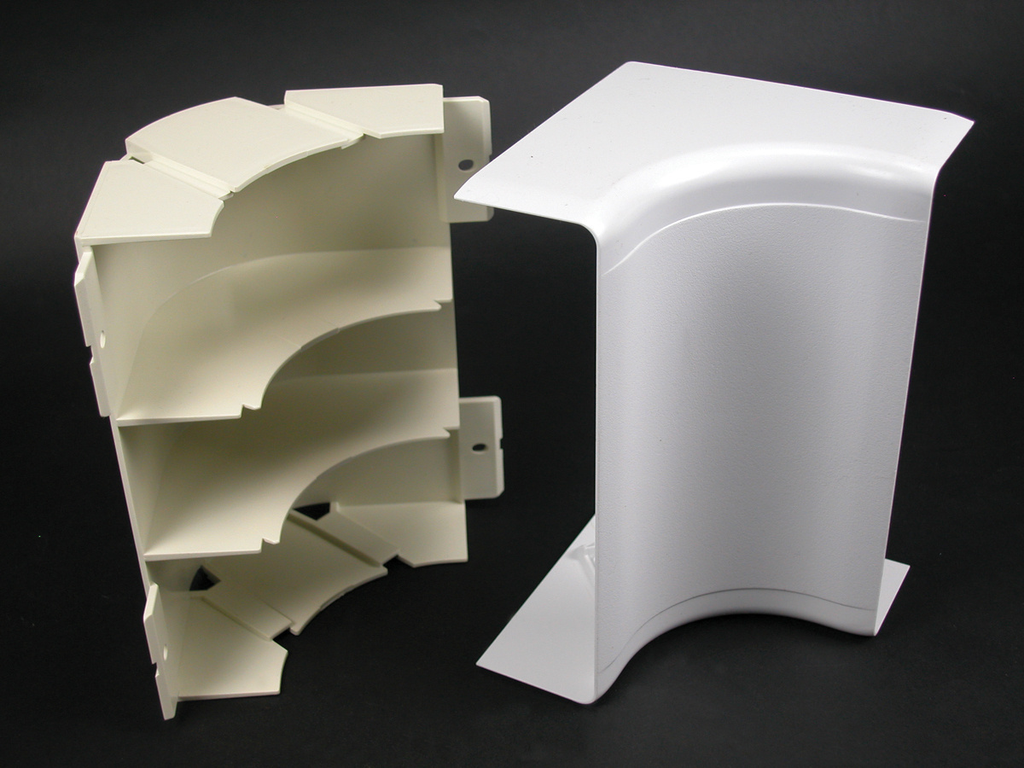

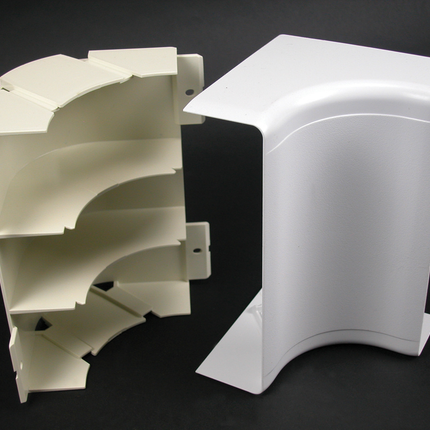

5500 Bend Radius Full Capacity Internal Elbow Fitting - Wire and Cable Management

The 5500 Bend Radius Full Capacity Internal Elbow Fitting (Model 5517FO-WH) from Wiremold is designed for wire and cable management in data, voice, A/V, and power applications. It is an integral part of the 5500 Series Raceway system, ideal for large cable and wire requirements in schools, office buildings, and institutional environments. This fitting provides a 2" (51mm) bend radius compliant solution for UTP and fiber optic installations, supporting both lay-in and pull-through cable installations. It is well-suited for electrical distributors and lighting solutions providers focusing on wire and cable routing and switchgear supplier needs.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5517FO-WH
• Product Weight: 1.05 lbs
• Dimensions: Length 4.5 in, Height 6.875 in, Depth 1.812 in
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776541014

Features

• Provides a 2" (51mm) bend radius compliant fitting for cable protection
• Integral dividers maintain full cable capacity and separate low-voltage and power wiring
• Suitable for UTP and fiber optic cables, supporting lay-in and pull-through installation methods
• Snap-on installation for aesthetic and secure mounting onto the 5500 Series Raceway base and cover
• Compatible with multi-channel nonmetallic raceway system for flexible wire and cable management
• Rugged, durable PVC construction for lightweight, easy cutting, and paintable finish
• Offered in white finish to blend with decor

Downloads & Links

• 5500 Series Raceway BIM
• Spec Sheet
• 5500 Series Large Capacity Raceway
• Wiremold¬Æ Large Capacity Nonmetallic Raceway Systems
• 5500 & 5400 Series Surface Nonmetallic Raceway
• 5500 Series Nonmetallic Raceway
