5500 Bend Radius Full Capacity Internal Elbow Fitting – Wire and Cable Management Raceway

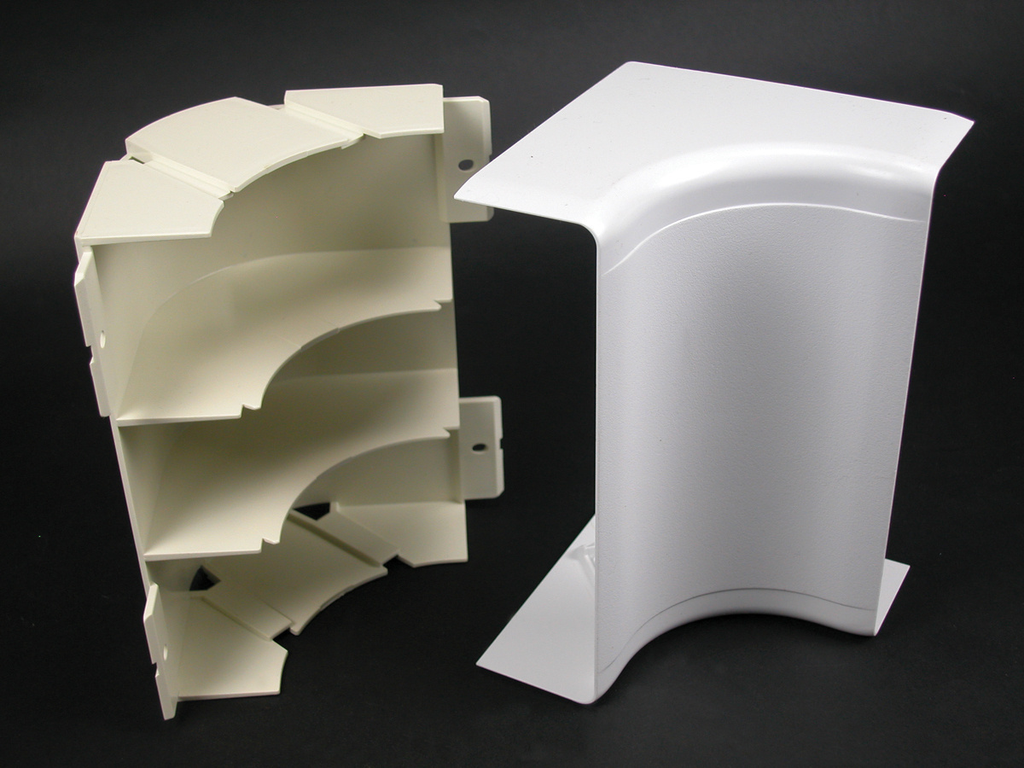

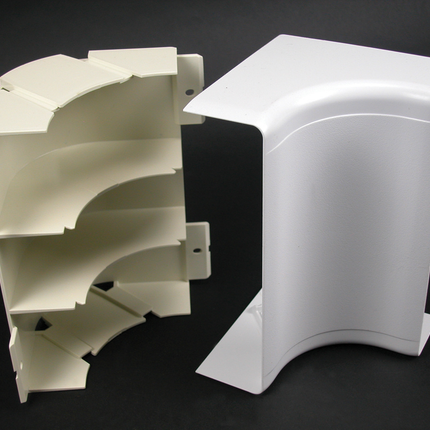

The 5500 Bend Radius Full Capacity Internal Elbow Fitting from Wiremold is designed for use within the 5500 Series Raceway system, providing integral cable bend radius control with a 2-inch (51mm) radius compliant with TIA/EIA-569 standards. This internal elbow fitting facilitates wire and cable management for data, voice, A/V, and power applications, making it suitable for large cable and wire requirements in institutional settings such as schools and office buildings. As part of a comprehensive electrical distributor's portfolio, it supports efficient installation and maintenance within lighting solutions, wire and cable systems, and switchgear supplier offerings.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5517FO
• Product Weight: 1.05 lbs
• Dimensions: Length 4.5 in, Height 6.875 in, Depth 1.812 in
• Made in USA: Yes
• Country of Origin: United States
• UPC: 786776541007

Features

• 2" (51mm) bend radius compliant fitting providing cable protection for UTP and fiber optic installations
• Integral dividers maintain full cable capacity within the elbow
• Snap-on cover design for aesthetic installation and ease of assembly
• Compatible with 5500 Series Raceway system for data, voice, A/V, and power wiring
• Ideal for lay-in and pull-through cable installations
• Durable, nonmetallic construction suitable for institutional environments
