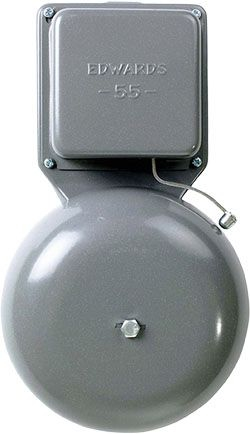

55-4AM General Purpose Vibrating Bell

The Edwards 55-4AM is a general purpose vibrating bell designed for light duty installations in factory and office environments. It is suitable for use by electrical distributors and switchgear suppliers in applications requiring reliable audible signaling, including AC powered security systems with battery standby. This model features a 4-inch gong and operates efficiently with low current draw, allowing for long wire runs in lighting solutions and wire and cable systems.

Specifications

• Manufacturer: Edwards Signaling
• Manufacturer Part #: 55-4AM
• Color: Gray
• Current: 0.85 amperes
• Gong Size: 4" (102 mm)
• Operating Voltage: 6V DC / 8V AC
• Sound Level: 78 dB at 1m / 68 dB at 10ft
• Weight: Approximately 1.05 lb
• Dimensions: 4" (A) x 2 1/8" (B) x 7 3/8" (C) (inches)

Features

• Single magnet vibrating bell with exposed striker
• Enclosed grounded terminal and case for safety
• Gray finish for industrial environments
• Low current drain suitable for long wire runs
• Compatible with AC powered security systems with battery backup

Downloads & Links

• Catalog
