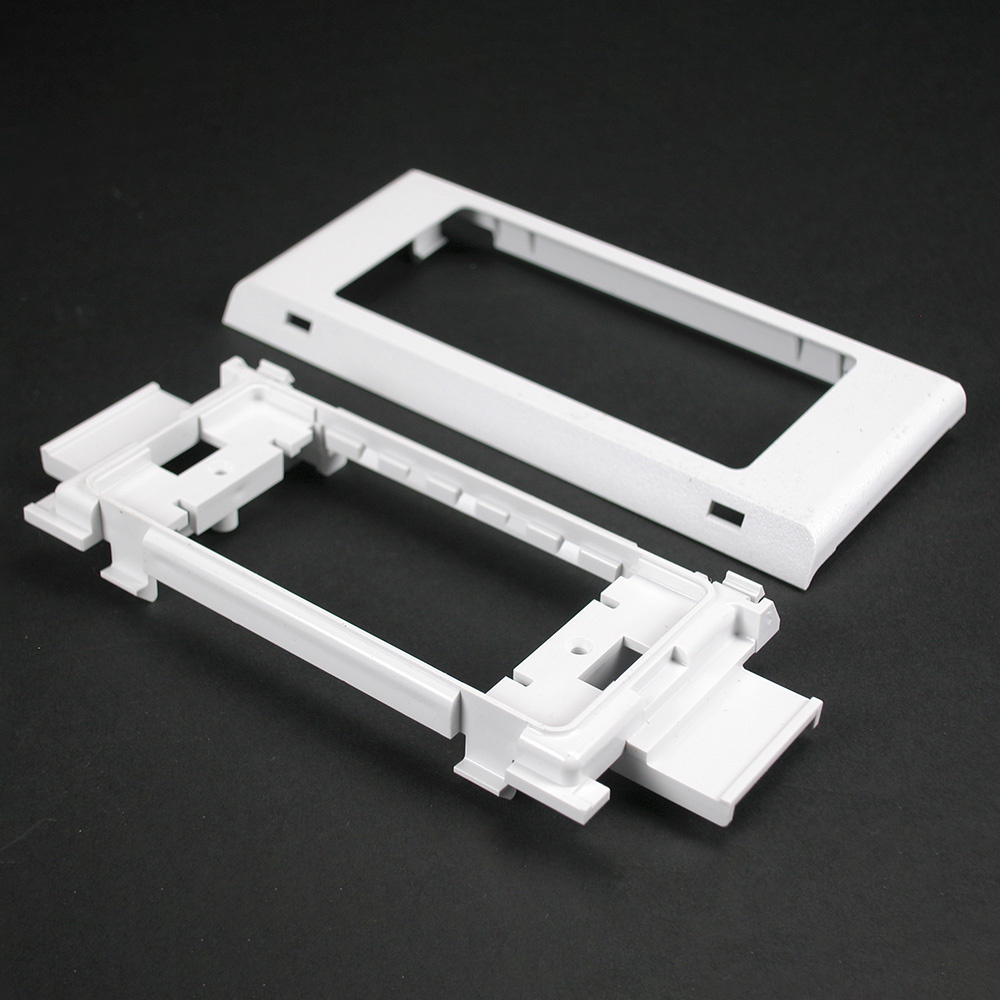

5400Twin Snap Device Bracket Fitting – Wire and Cable Management Solutions

The 5400Twin Snap Device Bracket Fitting by Wiremold is part of the 5400 Series™ Raceway system, designed for effective wire and cable management in data, voice, video, and power applications. This device bracket fitting supports installation flexibility in environments such as schools and offices, providing accessibility and segregation for power and low voltage services. It is a reliable component for electrical distributors and switchgear suppliers seeking a durable, low-profile solution to wire and cable organization.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5450TWH
• Product Weight: 0.2 lbs
• Dimensions: 4.9 in (Width) x 0.7 in (Height) x 2.5 in (Length)
• Material: PVC (Polyvinyl Chloride)
• Color: White (Ivory also available in series)
• Voltage Rating: UL Listed up to 600V
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776059144

Features

• Part of the 5400 Series™ Raceway system providing wire and cable management for multiple applications including data, voice, video, and power.
• Enables mounting of power and communication devices in-line with 5400TB Series Raceway.
• Compatible with 5507 Series Faceplates, Ortronics® TracJack and Series II Modules, Pass & Seymour® Activate Series Inserts, and Wiremold CM2 Series Open System Communication Modules.
• Lightweight PVC construction meets UL flammability requirements and is easy to cut and install.
• Twin Snap cover system allows complete segregation of power and low voltage services for installation flexibility.
• Pre-punched mounting holes for faster and easier installation.
• Paintable with latex paint to blend with décor.
• UL and cUL Listed component raceway meeting NEC Article 388 and CEC Section 12-600 standards.
