5400 Radiused Full Capacity Internal Elbow Fitting - Wire and Cable Raceway Solutions

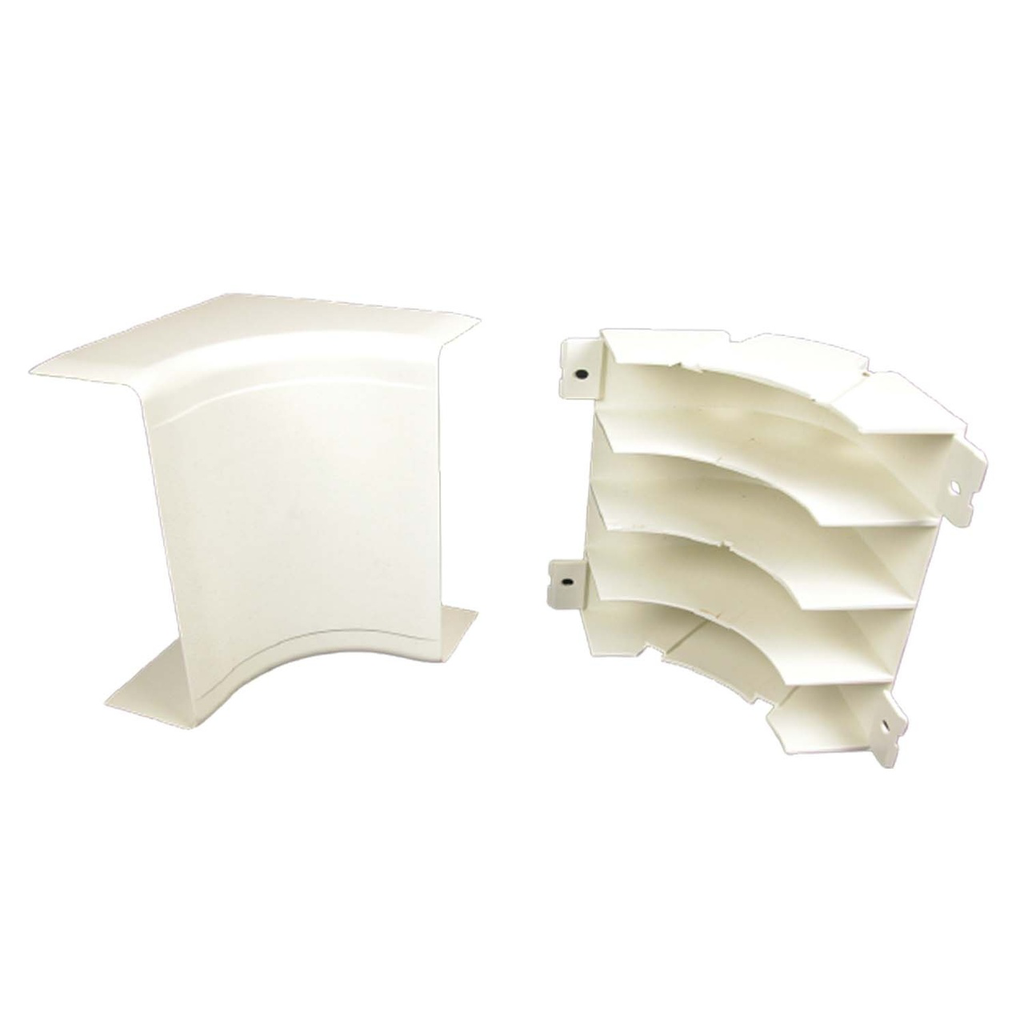

The 5400 Radiused Full Capacity Internal Elbow Fitting by Wiremold is designed for use within the 5400 Series™ Raceway system, providing a full capacity 90° internal corner with integral dividers that maintain a 2" (51mm) cable bend radius. This fitting is ideal for lay-in or pull-through installations, ensuring cable protection and compliance with bend radius requirements. It is suitable for data, voice, video, and power cable management in environments such as schools and offices, supporting flexible and accessible wire and cable routing. The product is manufactured in the USA and is part of a comprehensive wire and cable management solution offered by a leading electrical distributor and switchgear supplier.

Specifications

• Product Name: 5400 Radiused Full Capacity Internal Elbow Fitting
• Manufacturer: Wiremold
• Manufacturer Part #: 5417FO-WH
• Dimensions: 5.5 in (Width) x 4.0 in (Height) x 4.0 in (Length)
• Material: PVC
• UL Listed for up to 600V
• Made in USA
• Country of Origin: United States
• UPC: 786776540956

Features

• Maintains a 2" (51mm) cable bend radius for UTP and Fiber Optic cable installations
• Integral dividers provide full capacity and cable segregation
• Ideal for lay-in or pull-through cable installations
• Part of the 5400 Series Raceway system offering flexible wire and cable management for data, voice, video, and power applications
• Lightweight PVC construction, easy to cut and install
• Paintable with latex paint, available in ivory and white finishes
• UL and cUL Listed component raceway, meeting NEC Article 388 and CEC Section 12-600
