5400 Radiused Full Capacity Internal Elbow Fitting - Wire and Cable Raceway Solutions

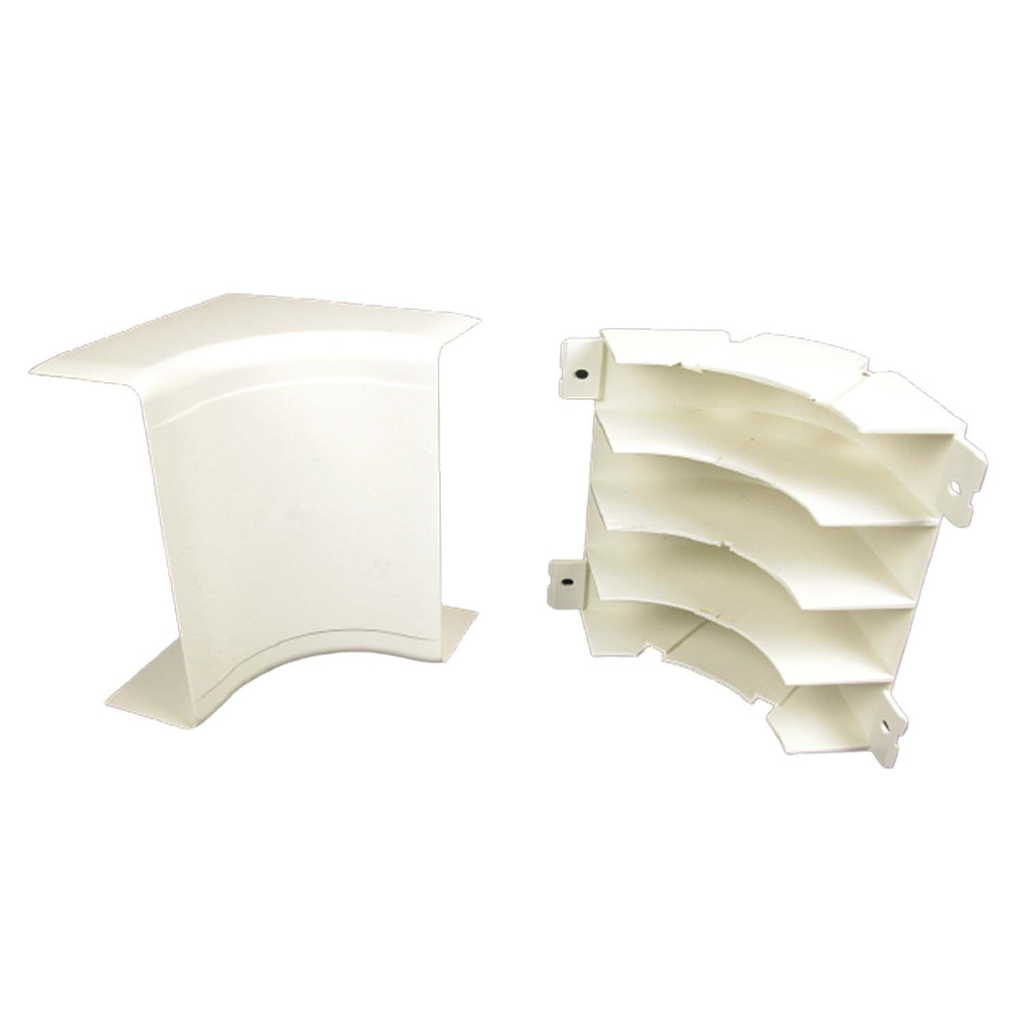

The 5400 Radiused Full Capacity Internal Elbow Fitting by Wiremold is a key component in the 5400 Series™ Raceway system, designed for wire and cable management in data, voice, video, and power applications. This fitting provides a full capacity 90° internal corner with integral dividers that maintain a 2" (51mm) cable bend radius, ensuring protection for UTP and fiber optic installations. Ideal for lay-in or pull-through cable installations, it supports the flexibility and accessibility needs typical of school and office environments. The fitting is manufactured in the USA and is suitable for electrical distributors and switchgear suppliers seeking reliable lighting and wire and cable management solutions.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 5417FO
• Dimensions: 4.0 in (Length) x 5.5 in (Width) x 4.0 in (Height)
• Material: PVC
• Cable Bend Radius: 2" (51mm) compliant
• Country of Origin: United States
• Made in USA: Yes
• UPC: 786776540949
• Product Weight: 1.0 lb

Features

• Full capacity 90° internal corner fitting with integral dividers for cable protection
• Maintains 2" (51mm) cable bend radius for UTP and fiber optic cables
• Supports both lay-in and pull-through cable installations
• Part of the 5400 Series™ Raceway system that provides wire and cable management for power, data, voice, and video
• Lightweight PVC construction, easy to cut and install
• Meets UL flammability requirements and is UL listed for up to 600V
• Designed for flexibility and accessibility in commercial and educational installations
