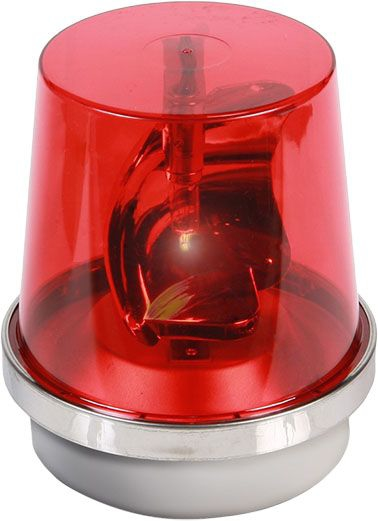

52R-N5-40WH Rotating Beacon Halogen Light

The 52R-N5-40WH is a rotating beacon halogen light designed for visual signaling in industrial and commercial applications. Manufactured by Edwards Signaling, this beacon is suitable for indoor or outdoor use when conduit mounted, making it ideal for electrical distributors, lighting solutions providers, and switchgear suppliers requiring reliable visual alert systems. The red lens enhances visibility for safety and warning purposes.

Specifications

• Manufacturer: Edwards Signaling
• Manufacturer Part #: 52R-N5-40WH
• Operating Voltage: 120V AC, 50/60 Hz
• Current: 0.35 amp
• Lamp Type: 40 Watt Halogen
• Lens Color: Red
• Revolution Rate: 75 rpm
• Mounting Type: 1/2" NPT conduit or surface mount (conduit mount required for outdoor use)
• Dimensions: 6" diameter x 8.5" height (approximate)
• Weight: Approximately 2.2 lbs

Features

• Rotating light with halogen lamp for high-intensity visual signaling
• Durable polycarbonate dome for easy cleaning and long-term use
• Bayonet lamp socket for easy lamp replacement
• Cast base functions as a junction box for wiring convenience
• Suitable for high ambient noise environments such as security systems and factory floors
• Can be mounted with lens facing upward or downward indoors; lens must face upward outdoors
• UL and cUL listed for safety compliance
• Operating temperature range from -31°F to 150°F (-35°C to 66°C)
