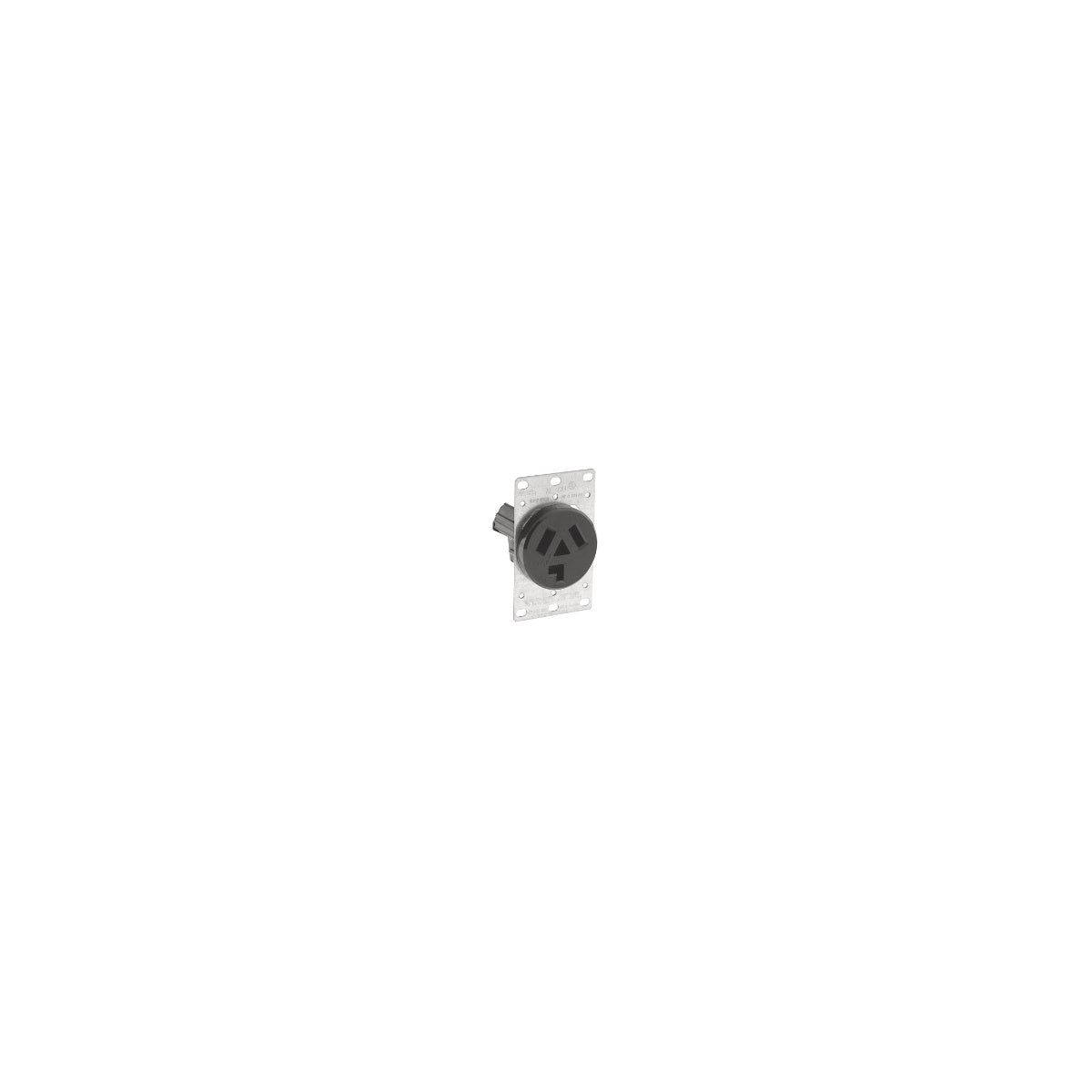

5207, 30 Amp Power Receptacle

This Leviton 5207 power receptacle is designed for electrical distribution and wiring applications requiring a 30 amp, 3-pole, 3-wire non-grounding connection. Suitable for use by electrical distributors and switchgear suppliers, it features durable construction and is intended for installation in circuits up to 2 horsepower at rated voltage.

Specifications

• Manufacturer: Leviton
• Manufacturer Part #: 5207
• Amperage: 30 amperes
• NEMA Configuration: 10-30R
• Number of Poles: 3
• Number of Wires: 3
• Material: Galvanized Steel
• Color: Black
• Grounding: Non-Grounding
• Dielectric Strength: 2000 volts
• ANSI Base: C-73
• Operating Temperature Range: -40 to 60 degrees Celsius
• Flammability Class: Rated V-2 Per UL94
• Product Weight: 0.3475 lbs
• At Rated Voltage: 2 horse power
• UPC: 078477811214

Features

• Constructed from durable thermoplastic with galvanized steel components
• Equipped with heavy-gauge, double-wire copper alloy contacts for reliable conductivity
• Terminals feature ID markings for accurate and efficient wiring
• Non-grounding design suitable for use with copper or aluminum conductors
