Description

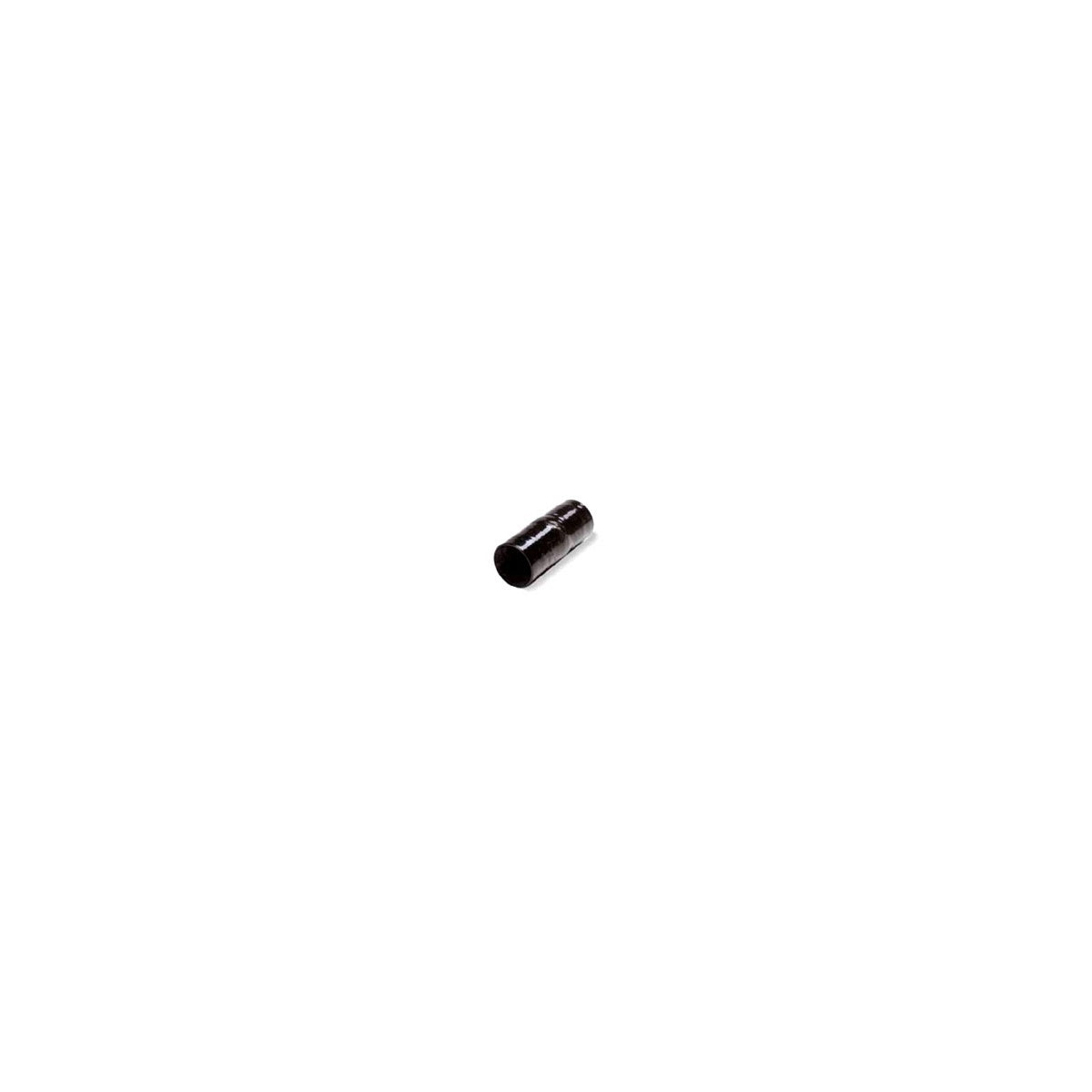

50C-SW-40, Conduit Stop Coupling – Fiberglass Conduit Fitting
The 50C-SW-40 Conduit Stop Coupling is a compression-type fitting designed for above-ground standard wall conduit systems. Manufactured by Champion Fiberglass, this coupling is made from phenolic fiberglass, providing a durable, concrete-tight connection for trade size 5-inch IPS conduit. It is suitable for use in electrical distribution and lighting solutions where a secure conduit system is required. The coupling features a 5.54-inch diameter and an 8-inch length, with a wall thickness of 0.07 inches, and is rated for temperature ranges from -60 to 250 degrees Fahrenheit. It meets UL 2515 and CSA C22.2 approvals, ensuring compliance with industry standards for safety and performance.
Specifications
- Material: Fiberglass
- Diameter: 5.54 inches
- Length: 8 inches
- Wall Thickness: 0.07 inches
- Temperature Rating: -60 to 250 °F
- Type: Compression, Above Ground, Standard Wall
- Trade Size: 5 Inch IPS
- Construction Feature: Concrete Tight
- Approvals: UL 2515, CSA C22.2
- Product Weight: 0.5 lbs
Features
- Manufactured from phenolic fiberglass using a single circuit filament winding process for strength and durability
- Non-tapered conduit sections with smooth internal walls for easy wire and cable installation
- Black color with carbon black ultraviolet inhibitor for outdoor protection
- Fire resistant and halogen-free materials meeting UL 2515 fire resistance standards
- Concrete-tight construction ensures secure and leak-resistant conduit connections
- Compatible with Champion Fiberglass conduit systems and fittings
- Meets environmental and quality management certifications including ISO 14001 and ISO 9001:2008
