5054, Straight Blade Power Receptacle - Industrial Electrical Distributor Solution

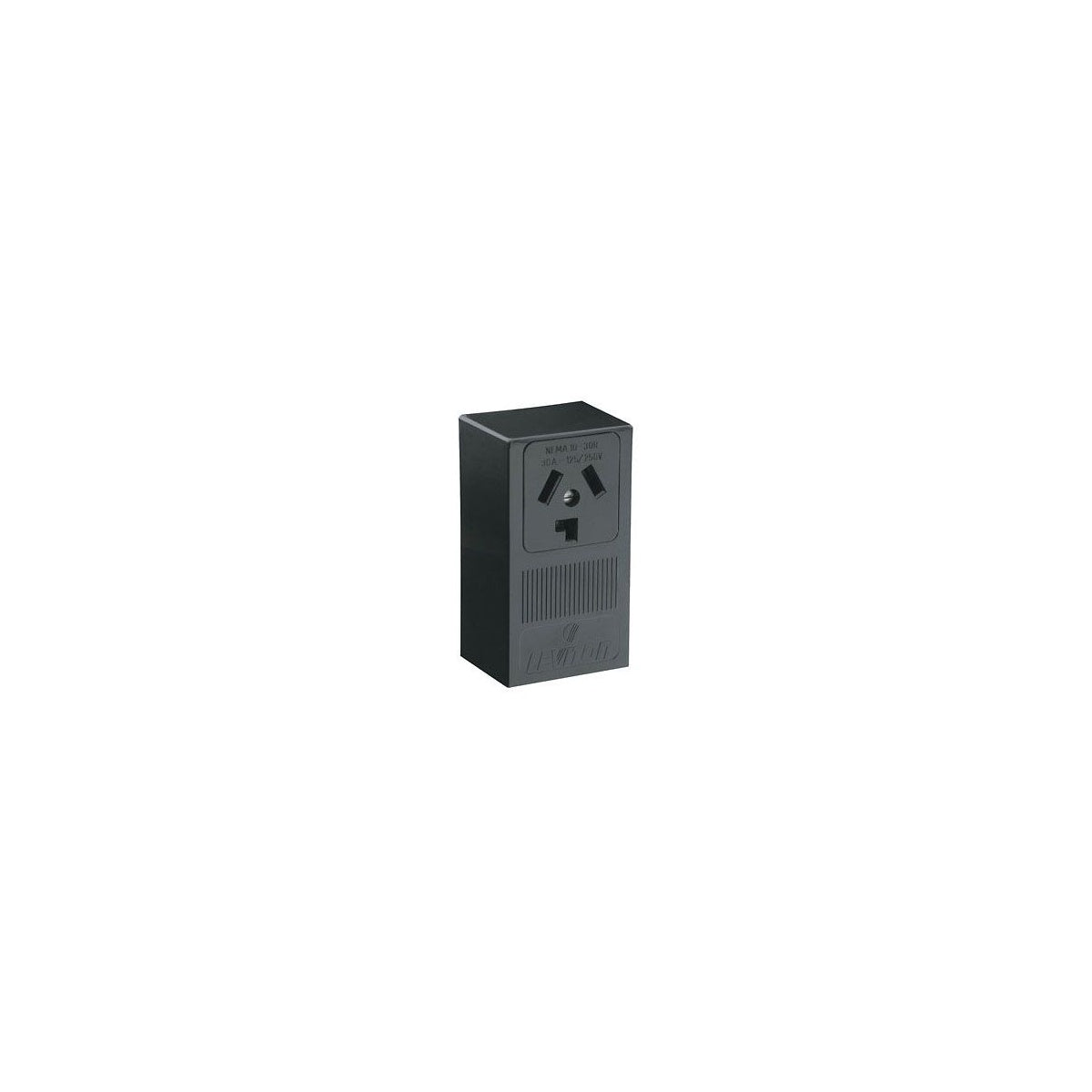

The 5054 Straight Blade Power Receptacle by Leviton is designed for industrial applications requiring reliable 30 Amp, 125/250 Volt power connections. This surface-mount device features a NEMA 10-30R configuration and is suitable for use with wire sizes up to 4 AWG. It is engineered to meet rigorous standards including UL 498 and CSA C22.2, making it an ideal component for electrical distributors and lighting solutions providers specializing in wire and cable and switchgear supply.

Specifications

• Configuration: NEMA 10-30R
• Voltage Rating: 125/250 Volt
• Current Rating: 30 Amp
• Number of Poles: 3
• Number of Wires: 3
• Ground Type: Non-Grounding
• Color: Black
• Material: Thermoplastic (Body and Face), Steel (Strap)
• Mounting: Surface Mount
• Power Rating: 2 Horsepower
• Wire Size Capacity: Up to 4 AWG
• Operating Temperature Range: -40 to 60 °C
• Dielectric Strength: 2000 Volts
• Flammability Rating: UL 94 V-2
• Approvals: UL 498, CSA C22.2
• Applicable Standards: ANSI C-73, UL 94 V-2, NOM 057, NEMA WD-6, ISO 9001
• Product Weight: 0.76 lbs

Features

• Heavy-gauge, double-wipe copper alloy contacts for enhanced conductivity
• Easy-to-wire terminals accept up to #4 AWG conductors with clear terminal identification
• Surface-mount design with concentric knockouts for 3/4" and 1" conduit and adjustable cord clamp for cable entry
• Durable thermoplastic body and face material for industrial-grade performance
• Rated for industrial applications with a power rating of 2 HP
• Operating temperature rating suitable for harsh environments from -40°C to 60°C
• Non-grounding design for use in specific circuit applications
