5010AST Straight Type; Die-Cast Zinc Material; Snap-in; UL
SKU: #70510
Part: #5010AST
UPC: 018997005175
5010AST Straight Type; Die-Cast Zinc Material; Snap-in; UL
SKU: #70510
Part: #5010AST
UPC: 018997005175
Total Price: $1.76 per each Sold in increments of 25 each
Description

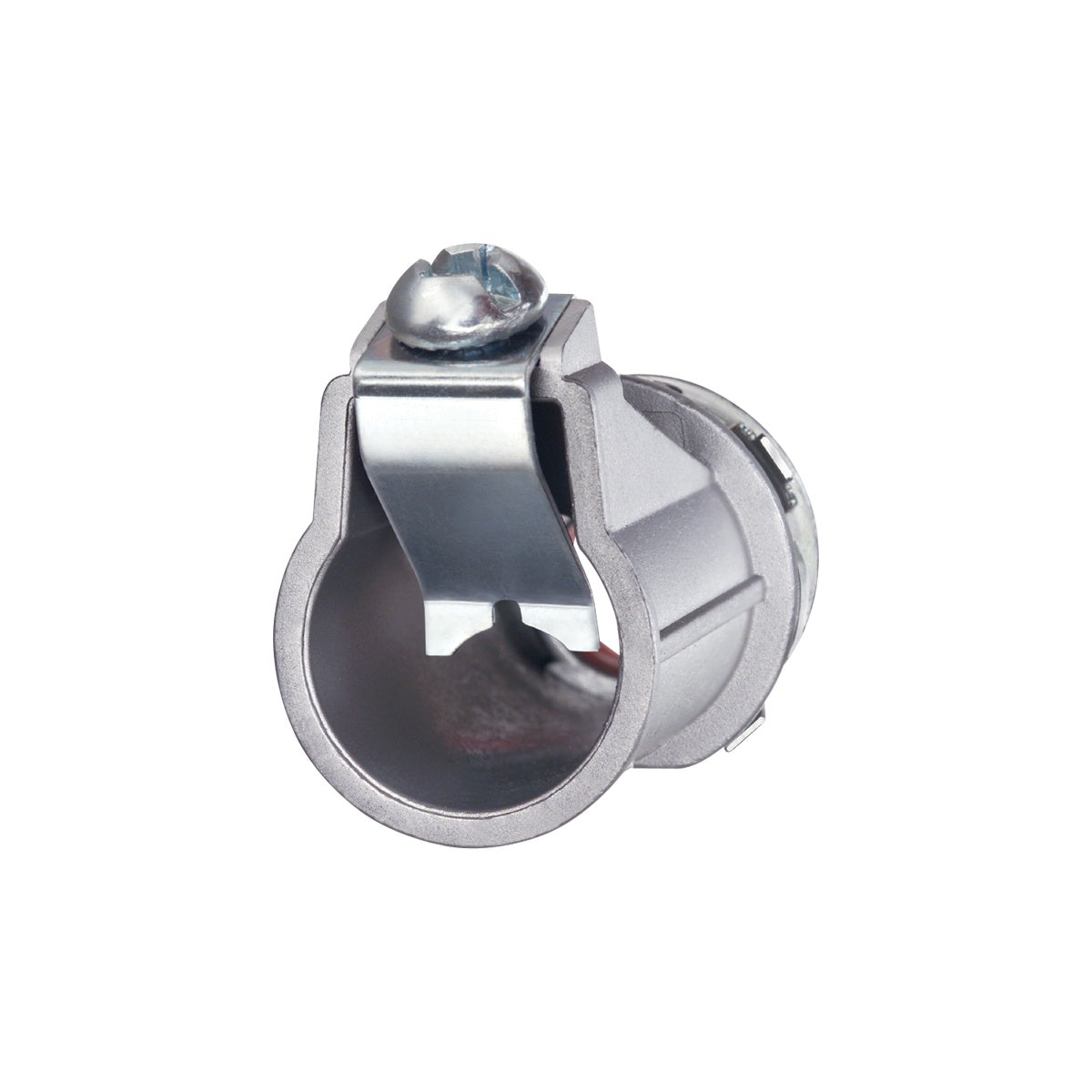

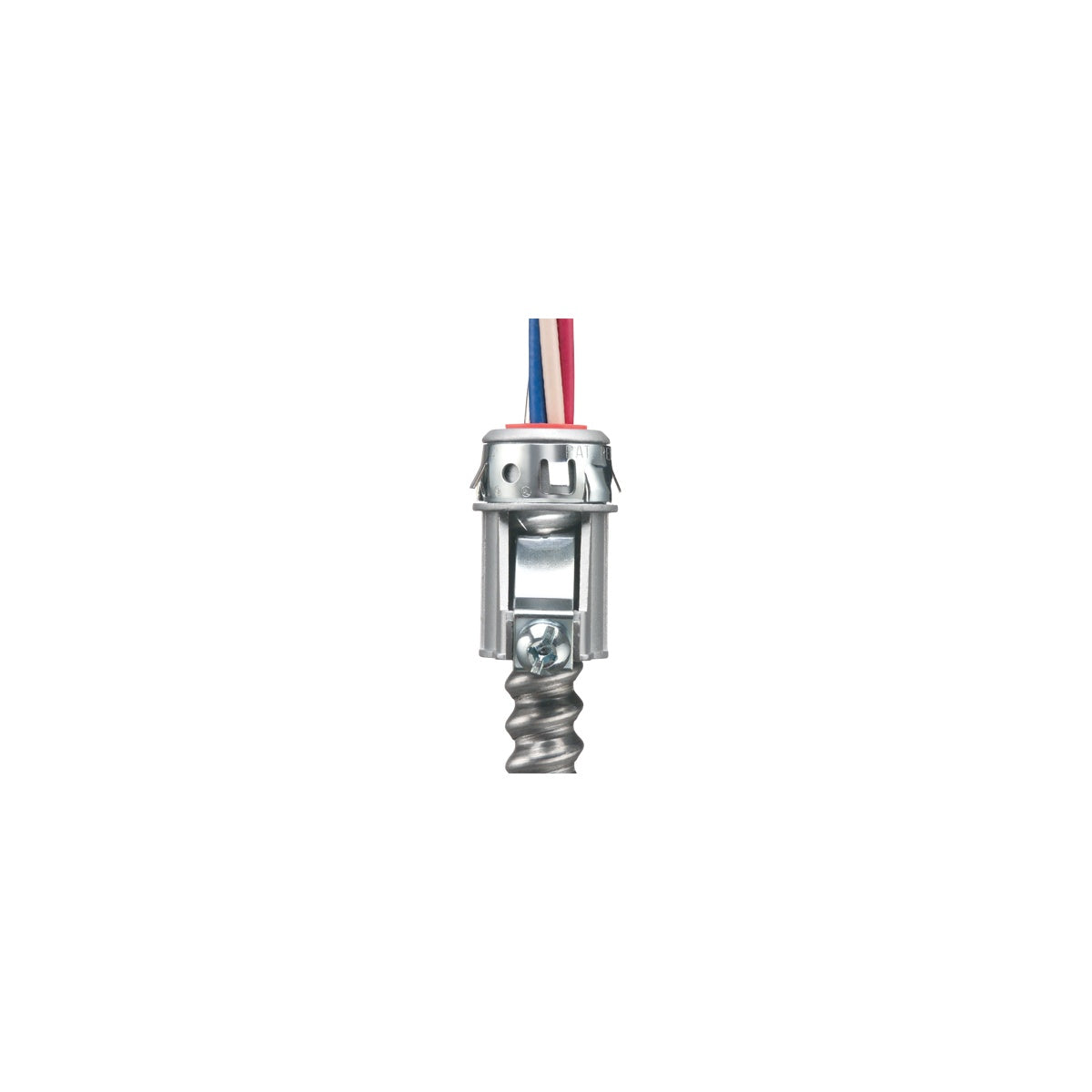

5010AST Straight Type MC Cable Connector
The Arlington 5010AST is a zinc die-cast MC cable connector designed for quick, secure, and tool-free installation in electrical distribution and lighting solutions. This snap-in connector features an insulated throat and an angled two-prong clip that locks down on MC cable, ensuring a firm hold and preventing pullout. It is suitable for a wide range of cables including AC, MC, HCF, MC continuous corrugated aluminum cable, MCI-A steel and aluminum cables, AC90, ACG90, and the new MC-PCS and MC-PCS HCF cables, making it ideal for use by electrical distributors and switchgear suppliers handling wire and cable applications.
Specifications
- Manufacturer: Arlington Industries
- Manufacturer Part #: 5010AST
- Material: Zinc (Die-Cast)
- Color: Silver
- Knockout Size: 1/2 inches
- Width: 1.514 inches
- Height: 2.210 inches
- Product Weight: 0.1110 lbs
- Country of Origin: United States
- Made in USA: Yes
- Cable Outside Diameter Range: 0.580 to 0.780 inches
Features
- Snap-in installation with no tools required
- Insulated throat for added safety
- Angled two-prong clip securely locks onto MC cable to prevent pullout
- Removable and reusable by loosening the clip screw
- Fully assembled and ready to use
- Concrete-tight when taped
- Compatible with a wide variety of cable types including new MC-PCS and MC-PCS HCF cables
- Listed by UL in accordance with ground fault requirements
