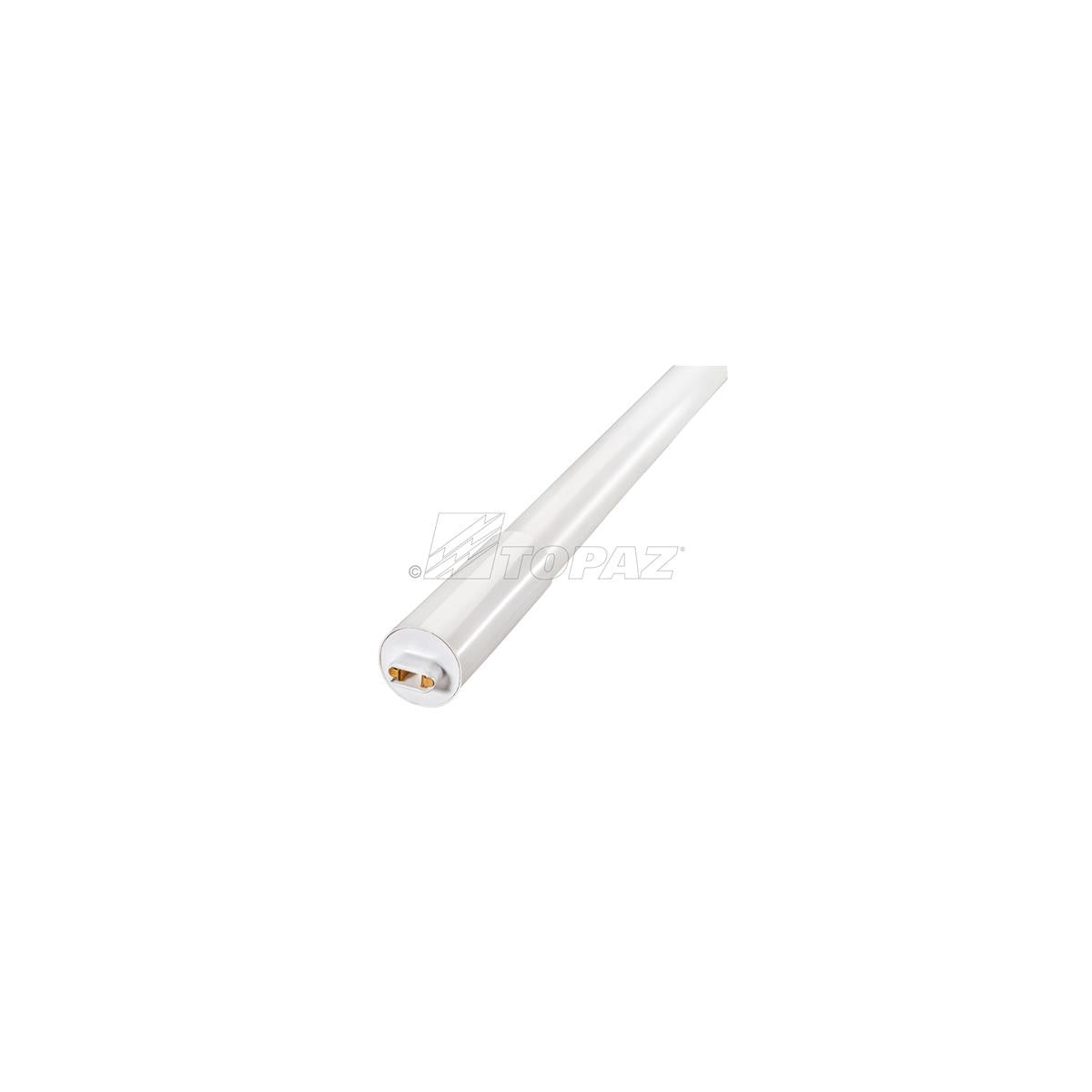

5000K LED T8 Ballast Bypass with R17d Double Contact Base
SKU: #187935
Part: #L8T8B/850/42F/R17D
UPC: 751338030893
5000K LED T8 Ballast Bypass with R17d Double Contact Base
SKU: #187935
Part: #L8T8B/850/42F/R17D
UPC: 751338030893
Description
5000K LED T8 Ballast Bypass with R17d Double Contact Base – LED Linear Lighting
Topaz’s 5000K LED T8 Ballast Bypass lamp with R17d double contact base is designed for retrofit use in high output (HO) fixtures. This LED linear lighting solution serves as an energy-efficient replacement for traditional 8 ft. fluorescent lamps, specifically 86W T8/HO or 110W T12/HO tubes. It features a ballast bypass design with a double-end connection, making it suitable for lighting distributors, wire and cable suppliers, and switchgear suppliers involved in commercial and retail lighting upgrades.
Specifications
- Wattage: 42W
- Color Temperature: 5000K
- Base Type: R17d Double Contact
- Length: 96 inches
- Voltage: 120-277V
- Color Rendering Index (CRI): 82
- Beam Spread: 160°
- Functional Life (L70): 50,000 hours
- Operating Temperature Range: -40° to 105°F
- Product Weight: 2.0 lbs
Features
- PET-coated frosted glass tube with shatter protection
- Ballast bypass, double-end connection for retrofit compatibility
- Energy efficient with extremely long life span
- Contains no mercury
- Designed for use in HO fixtures in warehouses, retail spaces, offices, and commercial environments
