Description

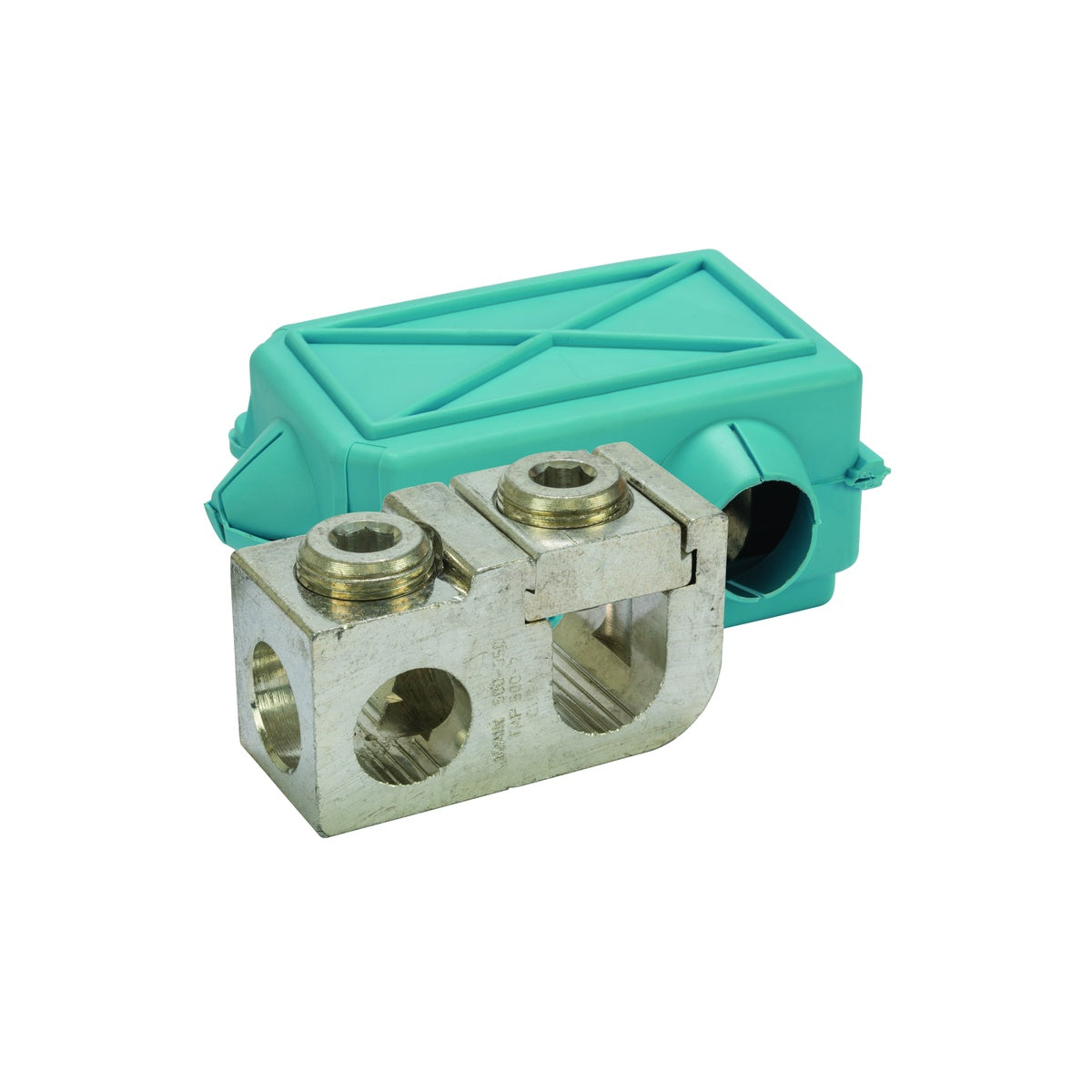

500-350 Main 500-2 Tap Connector with Cover
This 500 MCM Parallel "T" Tap Connector with Cover is designed for wire termination applications, allowing electrical distributors and switchgear suppliers to tap off main conductors without cutting, thanks to its lay-in feature. It supports parallel or "T" tap configurations with a flexible cover that accommodates wire entry from either orientation. The connector is suitable for use with aluminum and copper wire types and is rated for 600V and 90°C operation, making it compatible with a variety of electrical and lighting solutions.
Specifications
- Material: Aluminum
- Finish: Electro-tin plated
- Color: Blue Cover
- Dimensions (L x W x H): 4.89 in x 3.34 in x 2.12 in
- Wire Type: AL/CU
- Number of Conductors: 2
- Number of Poles: 1
- Maximum Temperature Rating: 90 degrees Celsius
- Voltage Rating: 600V
- Application: Wire Termination
- Country of Origin: United States
- Manufacturer: NSI Industries
- Manufacturer Part #: GP-500WC
- Product Weight: 0.74 lbs
- Order Minimum: 1 unit
Features
- Lay-in feature enables tapping off main conductor without cutting
- Perpendicular tap allows for parallel or "T" tap configuration
- Flexible cover supports either parallel or "T" tap wire entry
- Secure snap cover eliminates the need for taping
- Electro-tin plating provides low contact resistance
- UL Listed/cULus Listed for Wire Connector E155274 and UL486A/B
- CSA Certified (701642)
