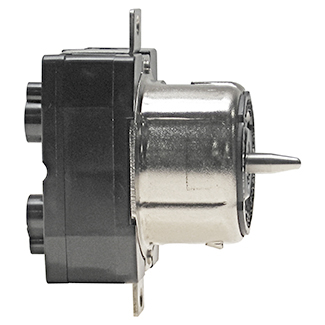

Features

• One piece contacts reduce friction and overheating
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Ratings and NEMA I.D. permanently marked on device
• Industry exclusive limited lifetime warranty

NEMA

• Non-NEMA

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Mechanical Specifications

• Amperage: 50 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage Withstand: 2000V minimum per UL 498
• Grounding: Grounding
• Maximum Working Voltage: 3-Phase 480V as rated
• Phase: 3-Phase
• Pole: 3
• Product ID: Ratings and Catalogue No. molded into face
• Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
• Terminal Accom.: AWG #10 to #6 for Ground (stranded only), and AWG #10 to #4 for line terminals
• Terminal ID: X, W, Y, and Green for ground
• Torque Range: 20-30 in-lbs
• Voltage: 480 VAC
• Wire: 4

Material Specifications

• Assembly Rivets: SS 302/304
• Back Cover: Flame-retardant Nylon
• Body and Contract Carrier: Flame-retardant Nylon
• Box Terminal: 0.062inch thick Copper
• Center Pin: SS 302/304
• Color: Black
• Compression Nut, Strain Relief: 0.100-inch thick Brass
• Connector Contact - Binding Plate: 0.100-inch thick Brass
• Connector Contact - Spring: 0.041-inch thick Brass
• Contact Rivet: Brass
• Face Module: Flame-retardant Nylon
• Mounting Screws: SS 302/304
• Mounting Strap: Single piece SS 302/304
• Shroud: .062-inch thick Nickel Plated Steel
• Terminal Block: 0.062-inch thick Copper
• Terminal Set Screw: SS 302/304

Product Features

• Brand: Black and White
• Device Type: Locking Receptacle
• NEMA: Non-NEMA

Standards and Certifications

• CSA C22.2 No. 42: File 152105
• NOM: 057
• RoHS: Compliant
• UL 498: File E13399
• Warranty: Limited Lifetime Warranty

Environmental Specifications

• Environment: Dry
• Flammability: UL94 V-0
• Operating Temperature: -40°C to 75°C

Downloads

Brochure

Instruction Sheet

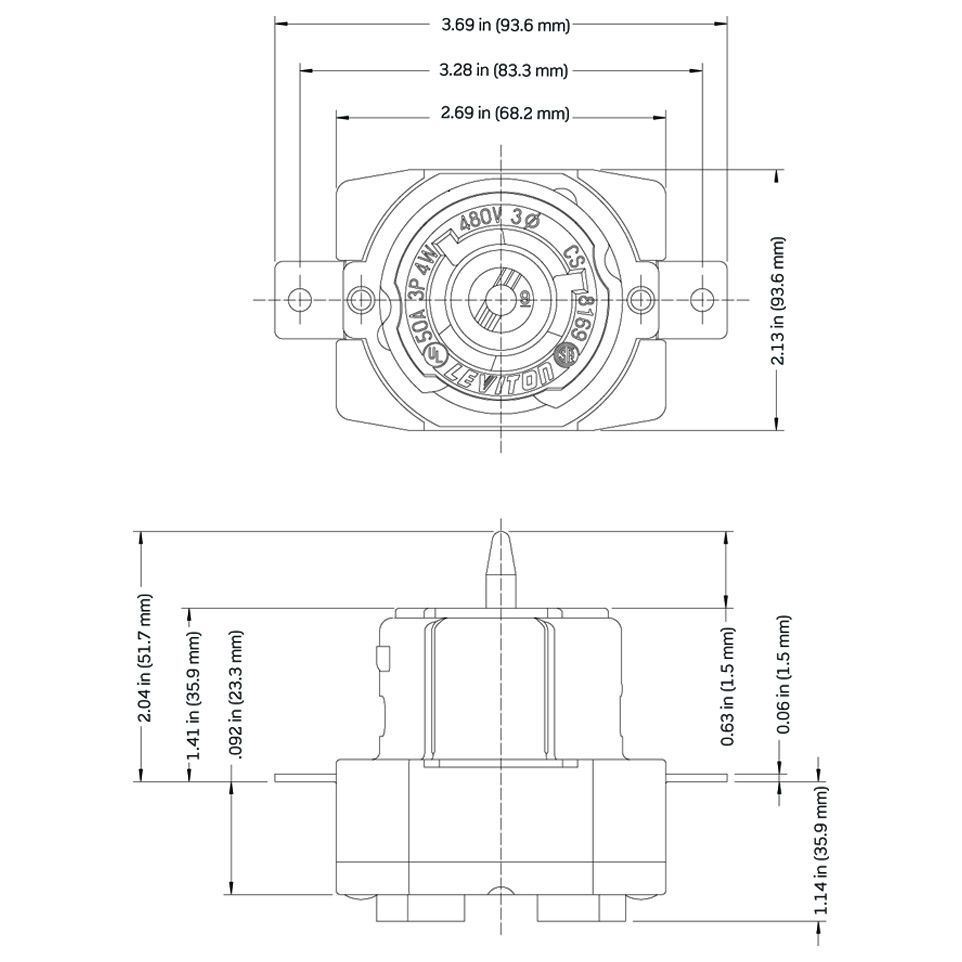

Dimensional Drawing
