50 Amp, 250 Volt, NEMA 6-50R, 2P, 3W, Surface Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Steel Strap, - Black
SKU: #18566
Part: #5378
UPC: 078477100233
50 Amp, 250 Volt, NEMA 6-50R, 2P, 3W, Surface Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, , Side Wired, Steel Strap, - Black
SKU: #18566
Part: #5378
UPC: 078477100233
Description

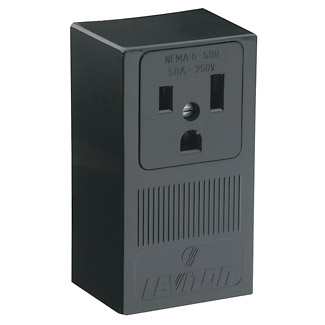

50 Amp, 250 Volt NEMA 6-50R Surface Mount Receptacle – Industrial Grade Electrical Connector
This Leviton 50 Amp, 250 Volt NEMA 6-50R surface mount receptacle is designed for industrial and commercial electrical applications requiring reliable power distribution. It is suitable for use by electrical distributors, lighting solutions providers, wire and cable specialists, and switchgear suppliers needing a durable, grounding receptacle with side wiring capability. The device supports 2-pole, 3-wire configurations with a straight blade design, ensuring compatibility with NEMA 6-50R plugs.
Specifications
- Manufacturer: Leviton
- Manufacturer Part #: 5378
- Amperage: 50 amperes
- Voltage: 250 volts
- NEMA Configuration: 6-50R
- Number of Poles: 2
- Wiring: Side Wired
- Body Material: Thermoplastic
- Face Material: Thermoplastic
- Color: Black
- Grounding: Grounding
- Dielectric Strength: 2000 volts
- Horsepower Rating: 3 horse power
- Operating Temperature: -40 degrees Celsius
- Flammability Class: Rated V-2 Per UL 94
- Product Weight: 0.7630 lbs
Features
- Industrial grade construction suitable for heavy-duty electrical environments
- Thermoplastic body and face provide durability and electrical insulation
- Side wired terminals facilitate secure and efficient wiring installation
- Grounding design enhances safety and compliance with electrical codes
- Rated for 3 horsepower motor loads, supporting industrial equipment
- Wide operating temperature range down to -40°C for versatile environmental use
- Flammability rating UL 94 V-2 ensures resistance to ignition and flame spread
