5 Watt miniature; T3; 20000 Average rated hours; 40 Lumens; Rigid Loop base; 24 Volt
SKU: #262160
Part: #S6995
UPC: 045923069956
5 Watt miniature; T3; 20000 Average rated hours; 40 Lumens; Rigid Loop base; 24 Volt
SKU: #262160
Part: #S6995
UPC: 045923069956
Description

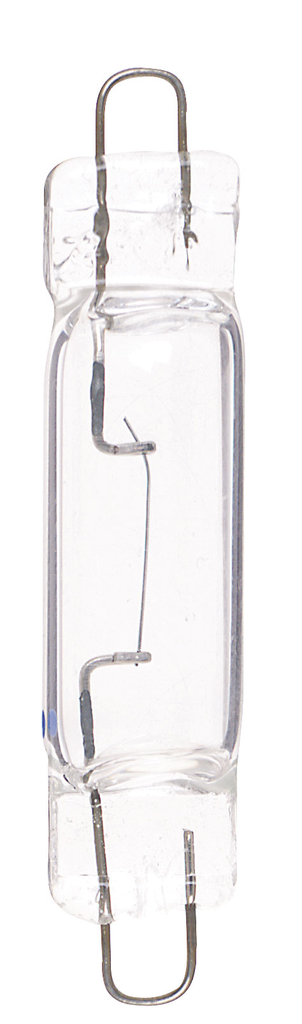

5 Watt miniature T3 Incandescent Lamp by Satco
This 5 watt miniature T3 incandescent lamp is designed for precise lighting applications requiring a clear finish and consistent performance. Suitable for electrical distributors and lighting solutions providers, it operates at 24 volts and delivers 40 lumens with a 360-degree beam spread. The lamp features a rigid loop base for secure installation and is ideal for use in wire and cable assemblies or as part of switchgear supplier inventories.
Specifications
- Manufacturer: Satco
- Manufacturer Part #: S6995
- Wattage: 5W
- Voltage: 24V
- Shape: T3
- Base: Rigid Loop
- Finish: Clear
- Lumens: 40 lumens
- Beam Spread: 360°
- Average Rated Life: 20,000 hours
- Amperage: 0.208 amperes
- Lamp Type: Miniature Incandescent
- Maximum Overall Length (MOL): 1.69 inches
- Maximum Overall Diameter (MOD): 0.38 inches
- RoHS Compliant: Yes
- Dimmable: No
Features
- Clear lens and finish for optimal light output
- Rigid loop base ensures stable and secure mounting
- Long average rated life of 20,000 hours reduces maintenance
- Compact T3 shape suitable for miniature lighting applications
- Consistent 360-degree beam spread for uniform illumination
- RoHS compliant for environmental safety standards
