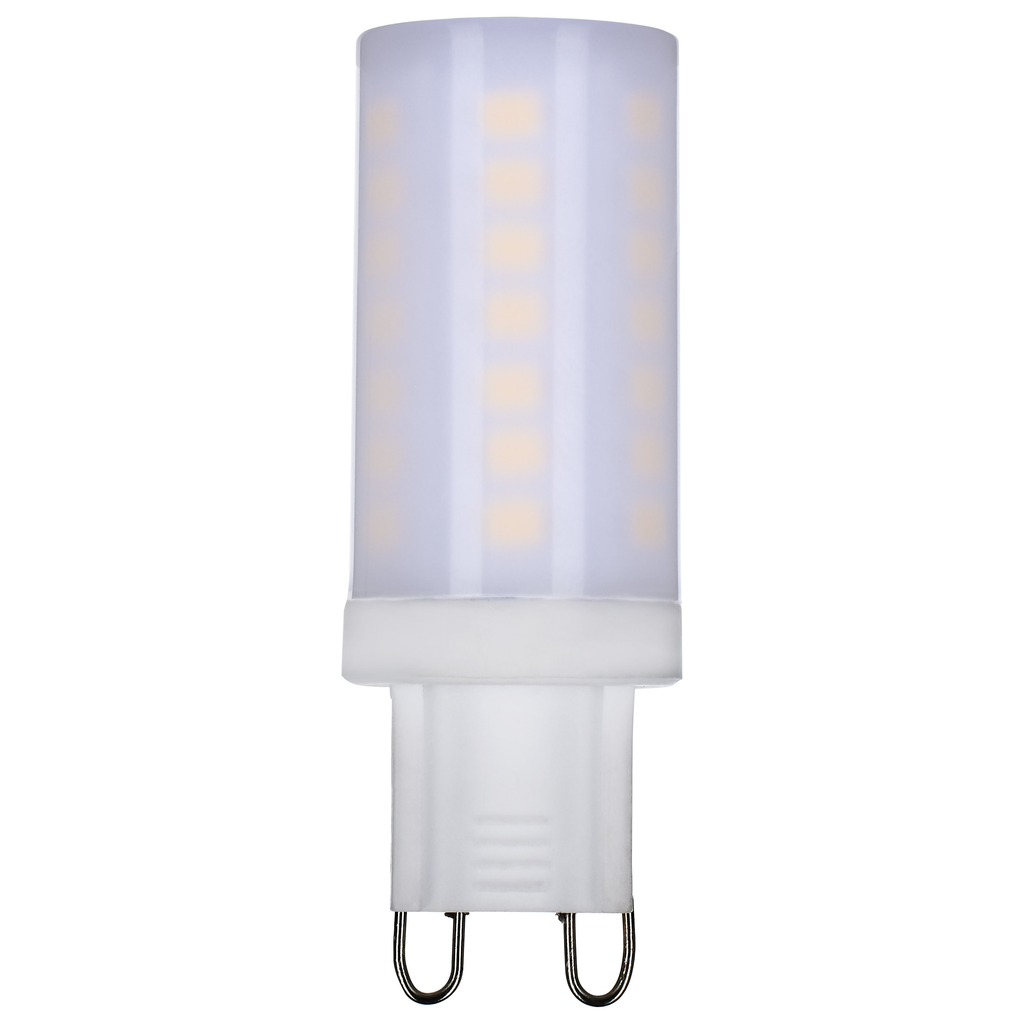

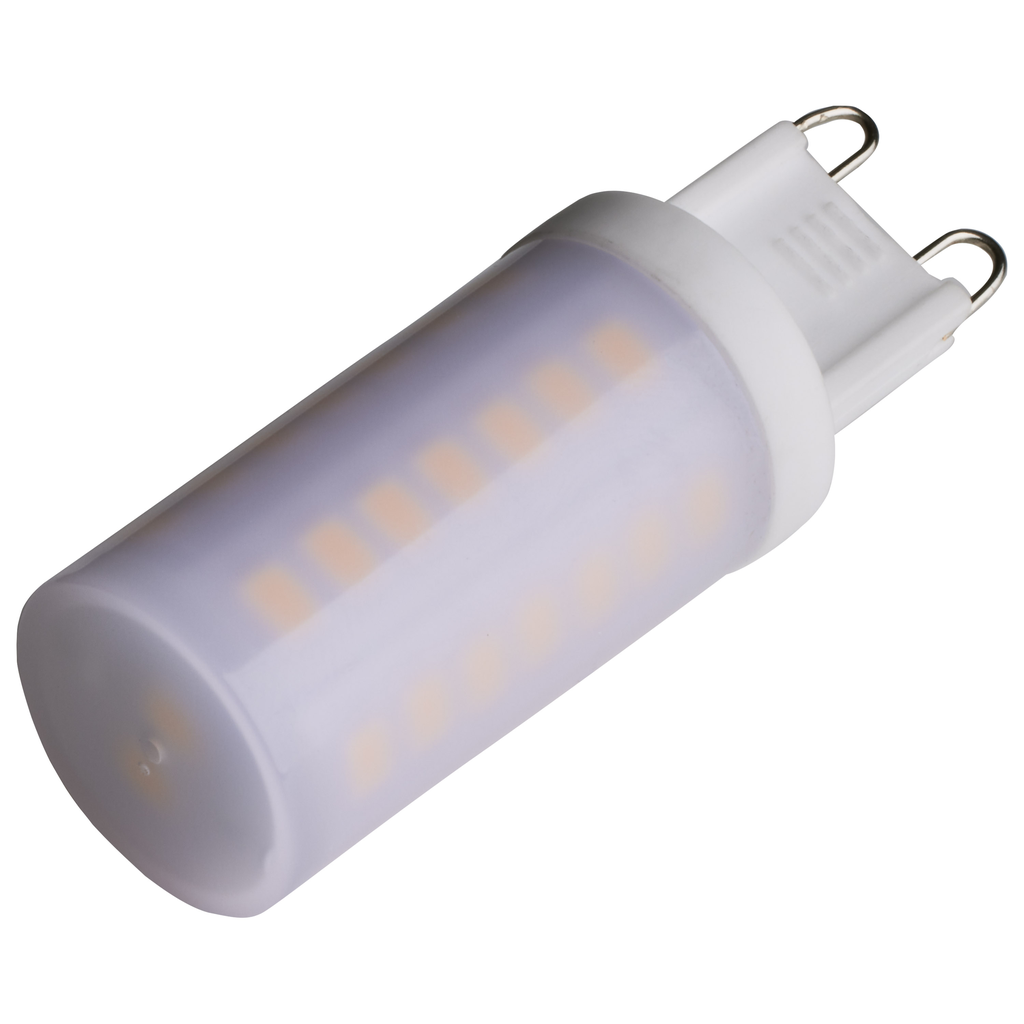

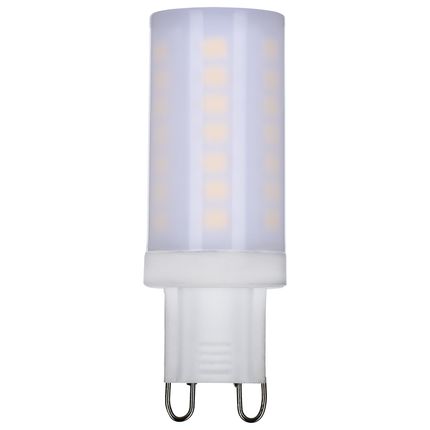

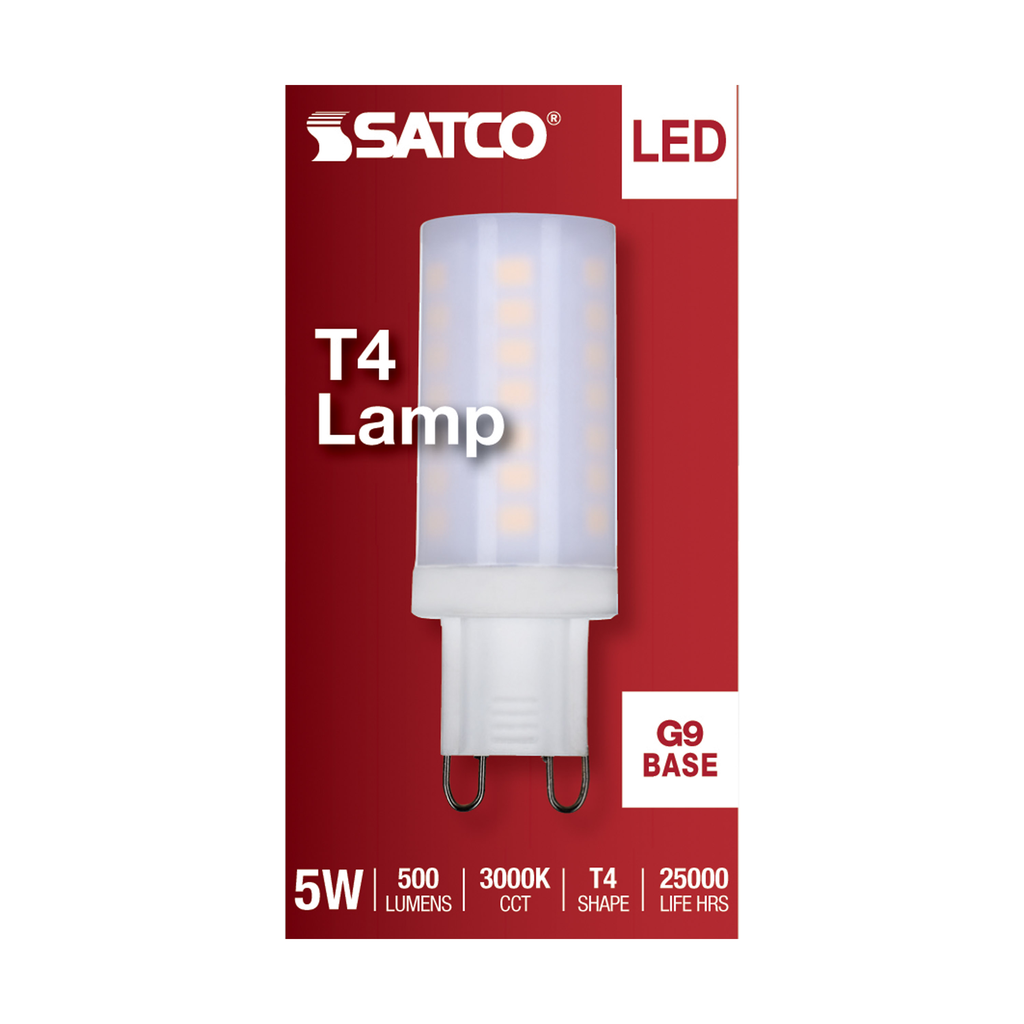

5 Watt JCD LED Frosted Lamp with G9 Base

This 5 watt LED lamp is designed for indoor lighting applications, suitable for electrical distributors and lighting solutions providers seeking efficient and durable light sources. Featuring a G9 double loop base, it operates at 120 volts and delivers a soft white light at 3000K color temperature. The lamp is dimmable, making it compatible with various dimming systems including forward phase, reverse phase, phase selectable, and triac dimmers. Its frost finish and plastic lens provide diffused illumination with an omni-directional beam spread of 300 degrees, ideal for commercial and residential environments.

Specifications

• Watts: 5W
• Incandescent Equivalent: 40 watts
• Voltage: 120V
• Shape: T4
• Base: G9 Double Loop
• Finish: Frosted
• Color Temperature: 3000K (Soft White)
• CRI: 80
• Lumens: 500 lumens
• Beam Spread: 300°
• Dimmable: Yes
• Rated Life: 25,000 hours
• Operating Temperature: -20°C to +40°C (-4°F to +104°F)
• Material: Ceramic housing with plastic lens
• Weight: 0.06 lb.
• Rated for Enclosed Fixture: Yes
• Safety Listing: cULus Listed
• Location Rating: Damp
• RoHS Compliant: Yes

Features

• Energy-efficient LED technology providing 40W incandescent equivalent output at 5W power consumption
• Frosted finish and lens for uniform, glare-free lighting
• Omni-directional 300° beam spread for broad illumination
• Dimmable with multiple dimming types for flexible lighting control
• Suitable for damp locations and commercial applications
• Long rated life of 25,000 hours reduces maintenance and replacement costs
• Compact T4 shape with G9 base for easy retrofit in compatible fixtures
• Compliant with California Title 20/24 and RoHS standards
