5 Terminal Ringless Large Closing Plate Lever Bypass Single Connector Locking 4-600kcmil Double Connector Locking 6-350kcmil Long Island Lighting Company
SKU: #214596
Part: #U5073-X-K3L-K2L-LIS
UPC: 784572311176
5 Terminal Ringless Large Closing Plate Lever Bypass Single Connector Locking 4-600kcmil Double Connector Locking 6-350kcmil Long Island Lighting Company
SKU: #214596
Part: #U5073-X-K3L-K2L-LIS
UPC: 784572311176
Description
5 Terminal Ringless Large Closing Plate Lever Bypass Single Connector Locking 4-600kcmil Double Connector Locking 6-350kcmil Electrical Enclosure

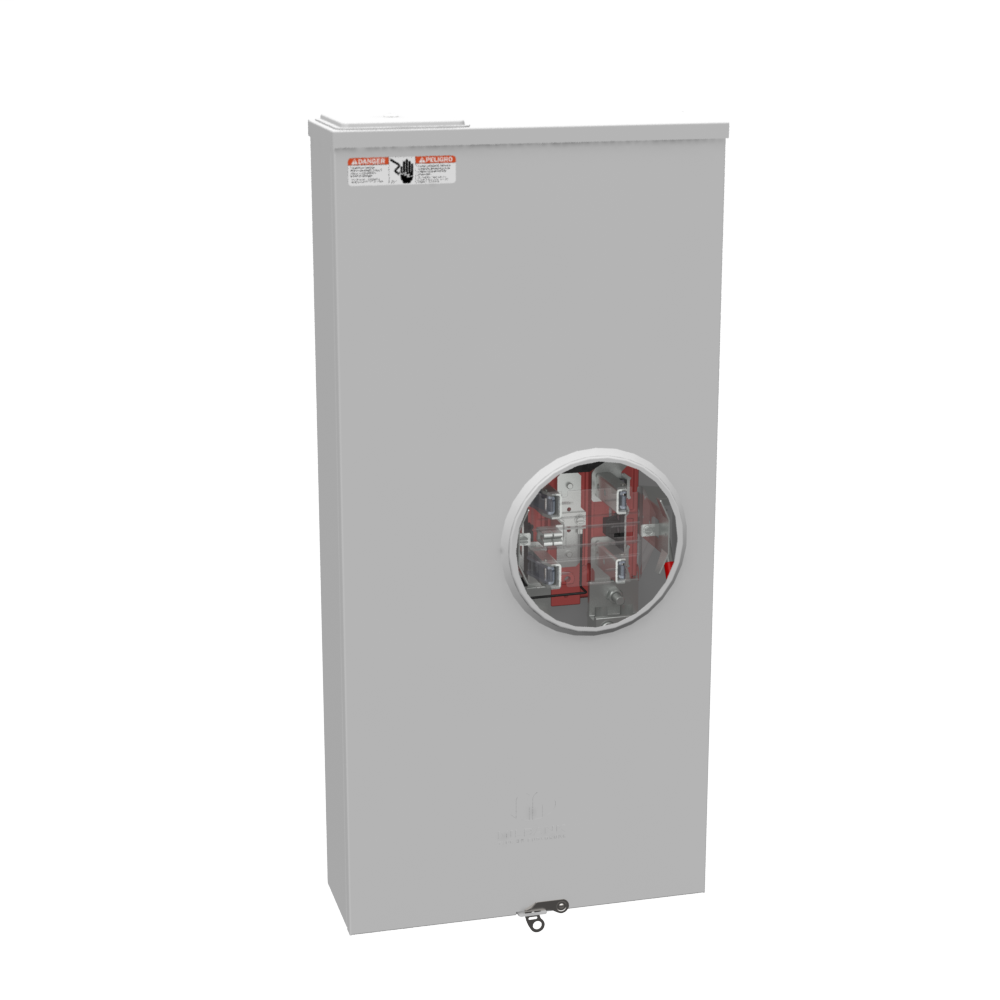

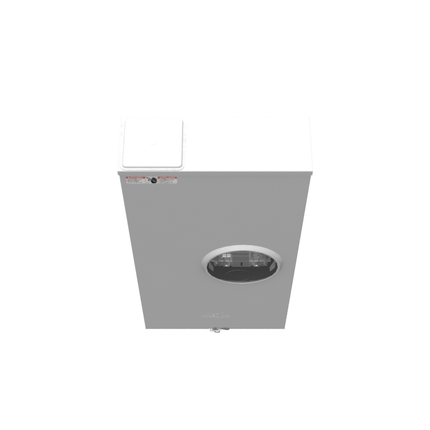

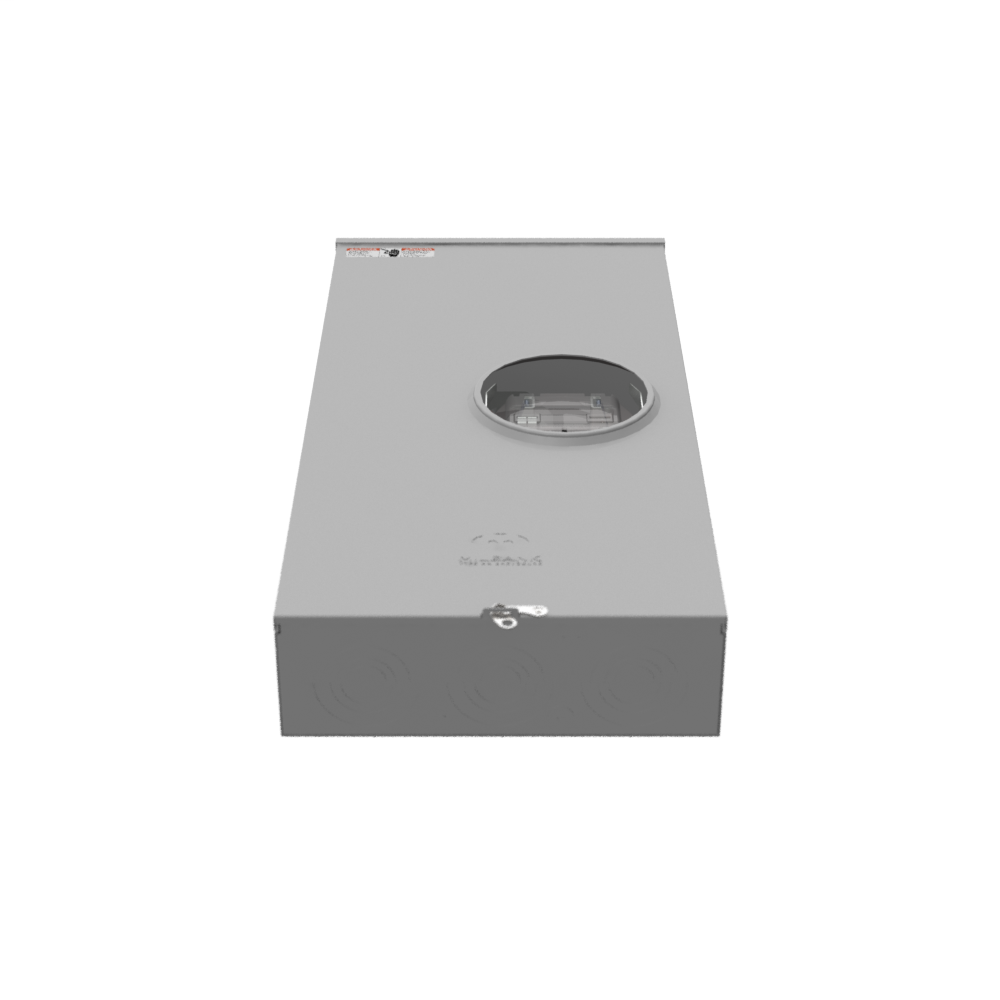

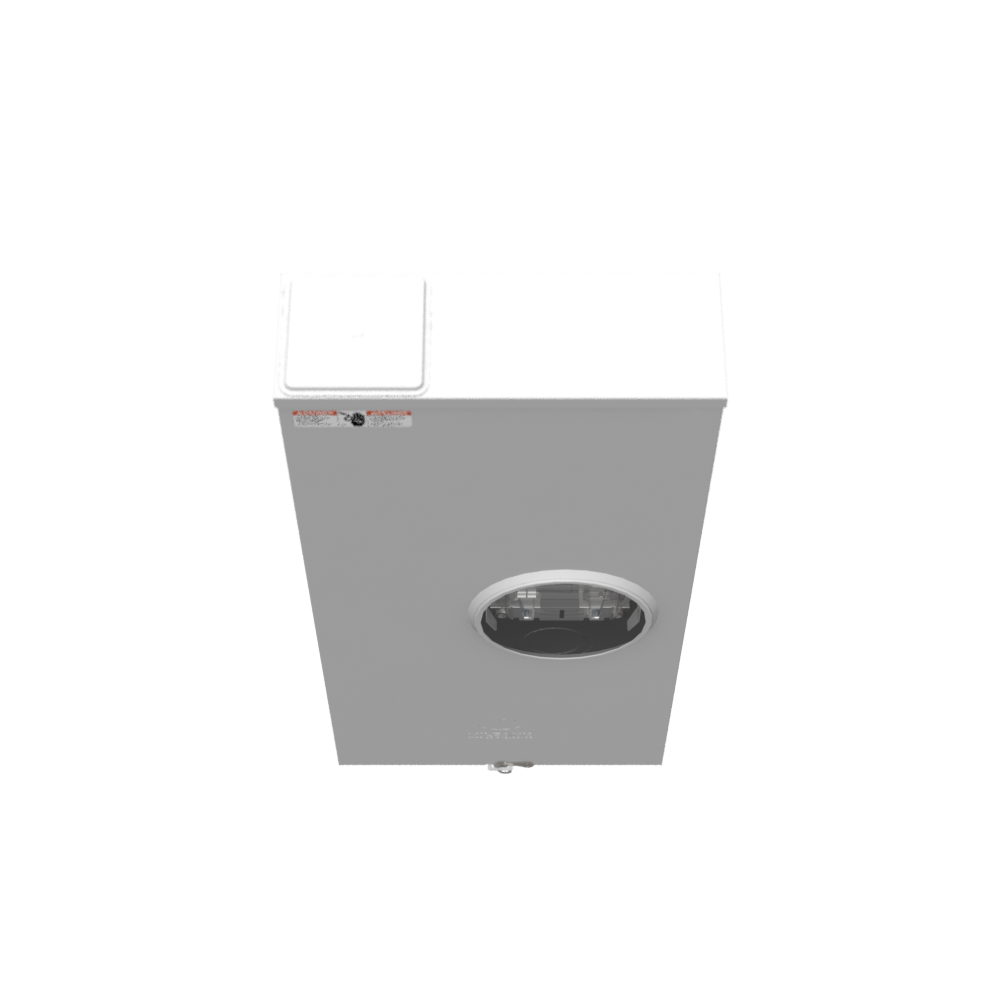

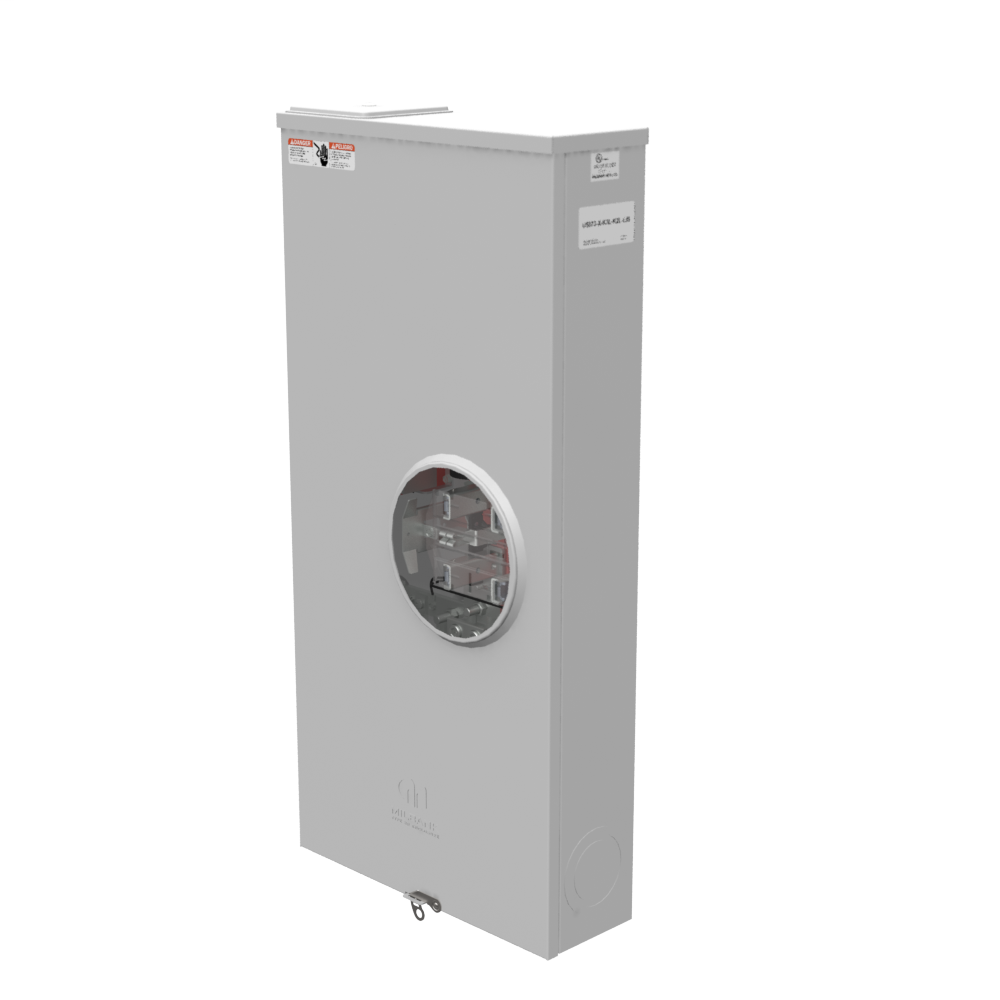

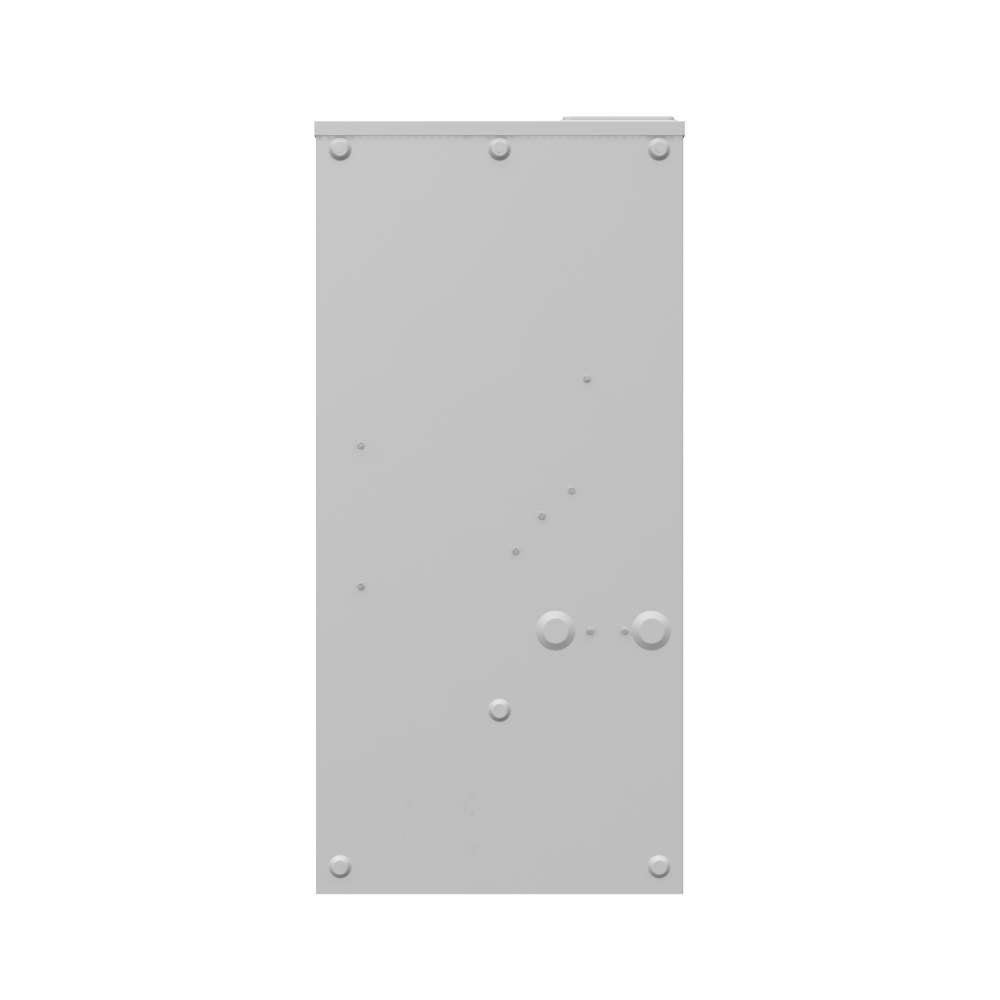

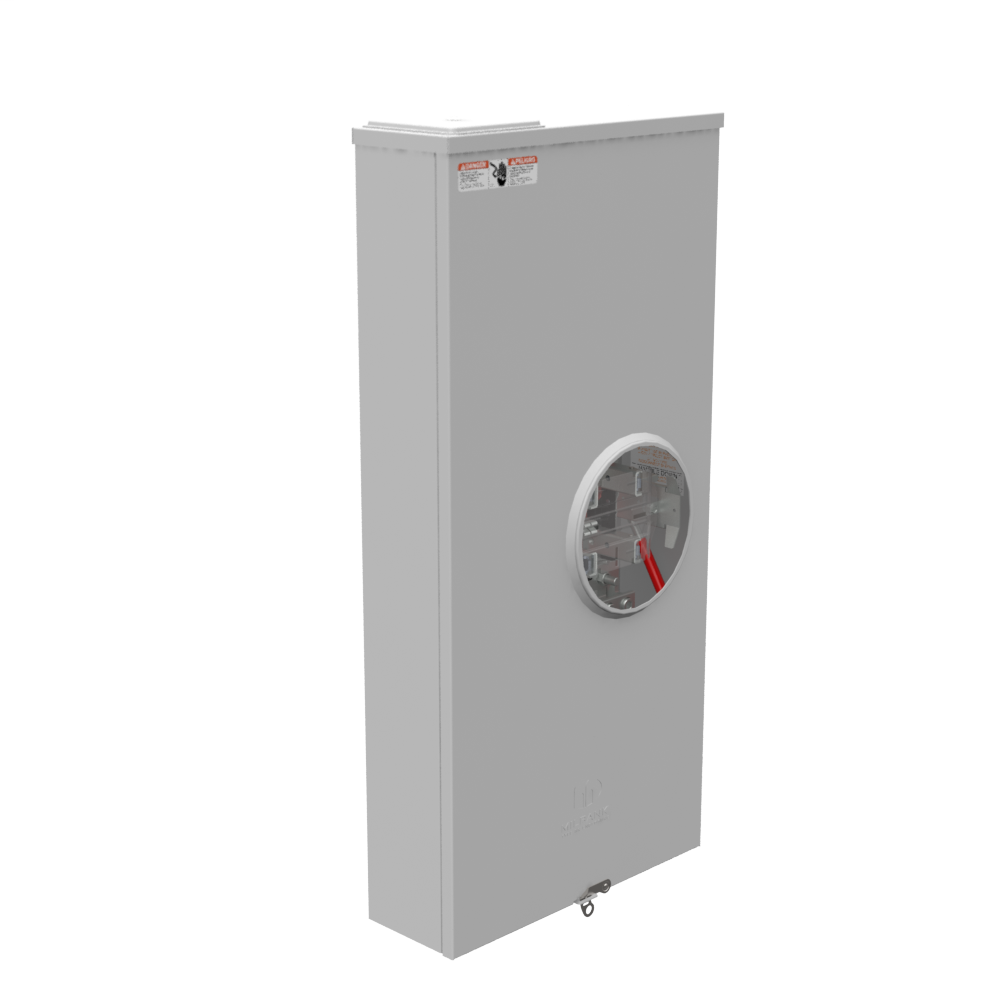

This product is a surface mount electrical enclosure designed for use in wire and cable applications, suitable for overhead, underground, and side wireway cable entry. It is intended for single-phase electrical distribution with a 320 amperes rating and operates at 60 hertz frequency. The enclosure features a large closing plate hub style and utilizes glass polyester insulation for enhanced durability. Constructed from G90 galvanized steel with a powder coat finish, it offers reliable protection and longevity for electrical installations.
Specifications
- Amperage: 320 amperes
- Frequency: 60 hertz
- Hub Style: Large Closing Plate
- Cable Entry: Overhead And Underground And Side Wireway
- Mounting Type: Surface Mount
- Insulation Type: Glass Polyester
- Number of Phases: 1
- Number of Terminations: 4
- Material: G90 Galvanized Steel With Powder Coat Finish
- Product Weight: 33.0000 lbs
Features
- Locking single connector for 4-600 kcmil wire
- Double connector locking for 6-350 kcmil wire
- Lever bypass mechanism for operational reliability
- Ringless design for simplified installation
- Durable galvanized steel construction with powder coat finish
