5 Terminal Ringless 2 Large Closing Plates Lever Bypass 4 Position Long Island Lighting Company - Electrical Distributor Switchgear

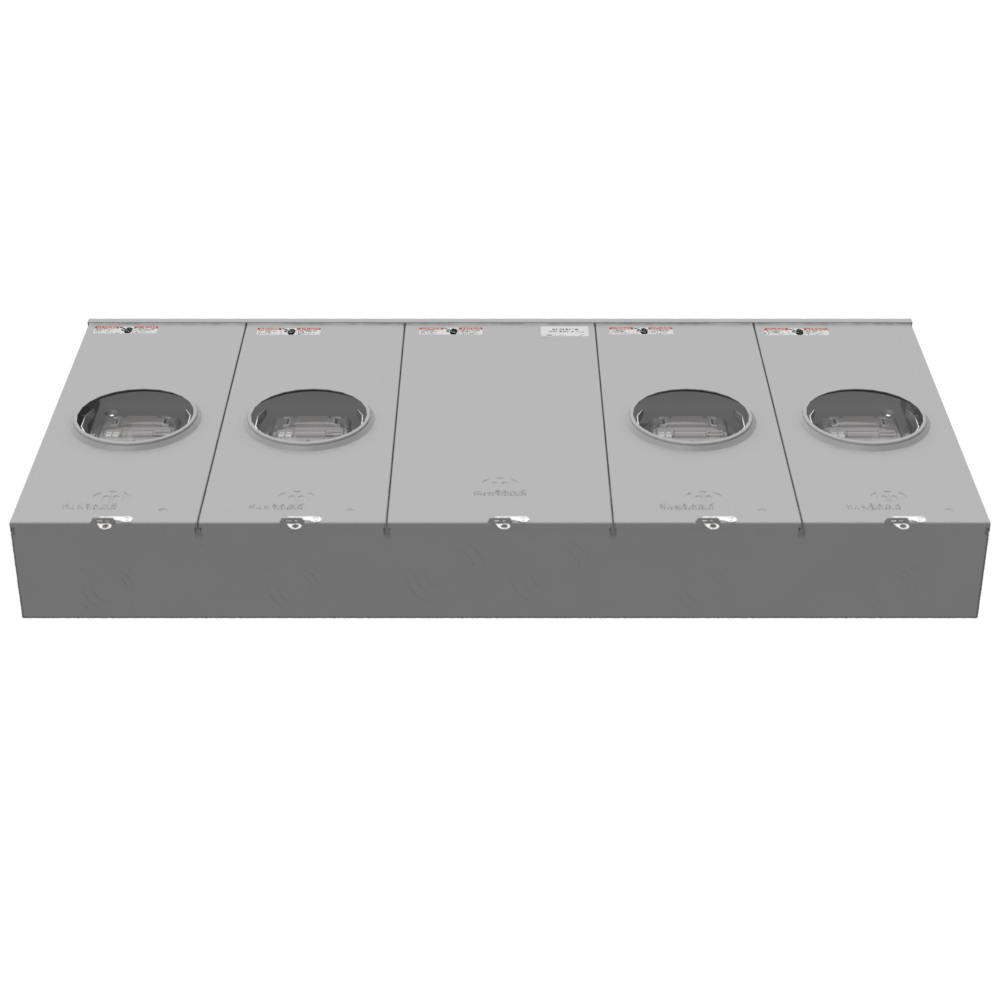

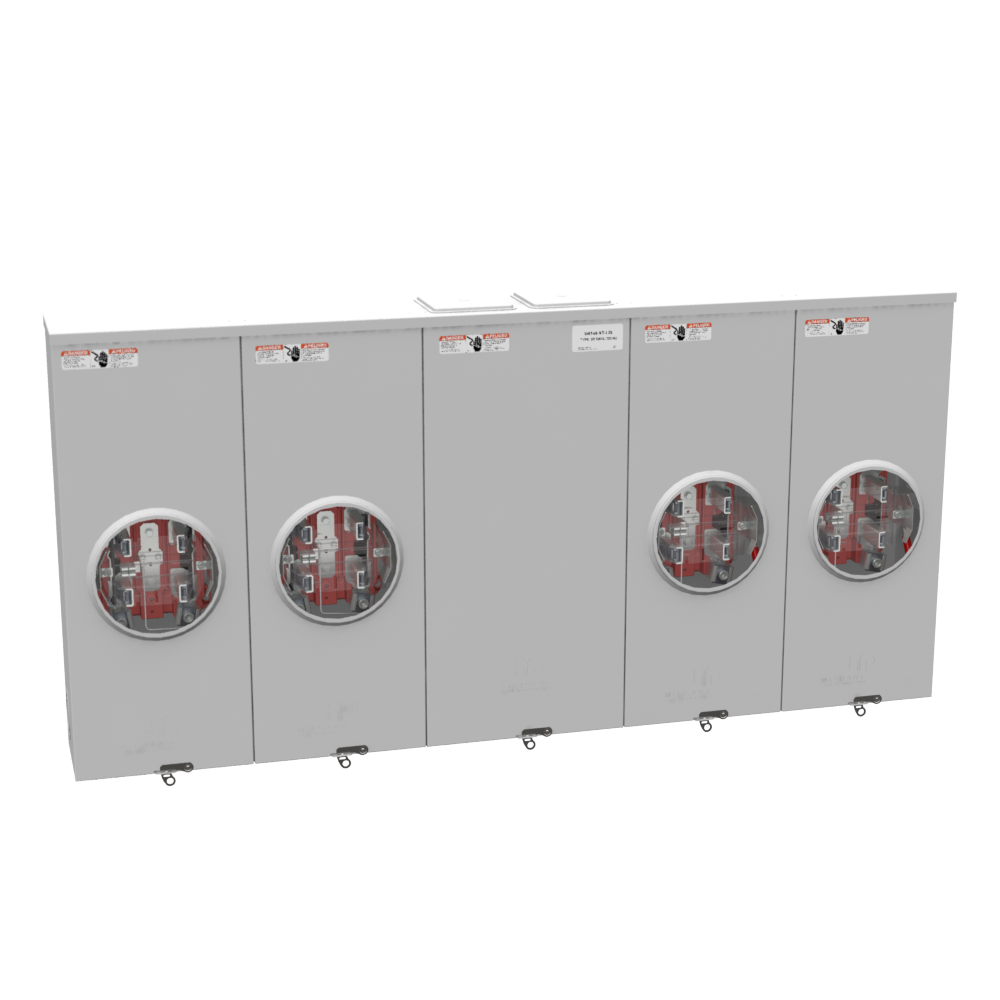

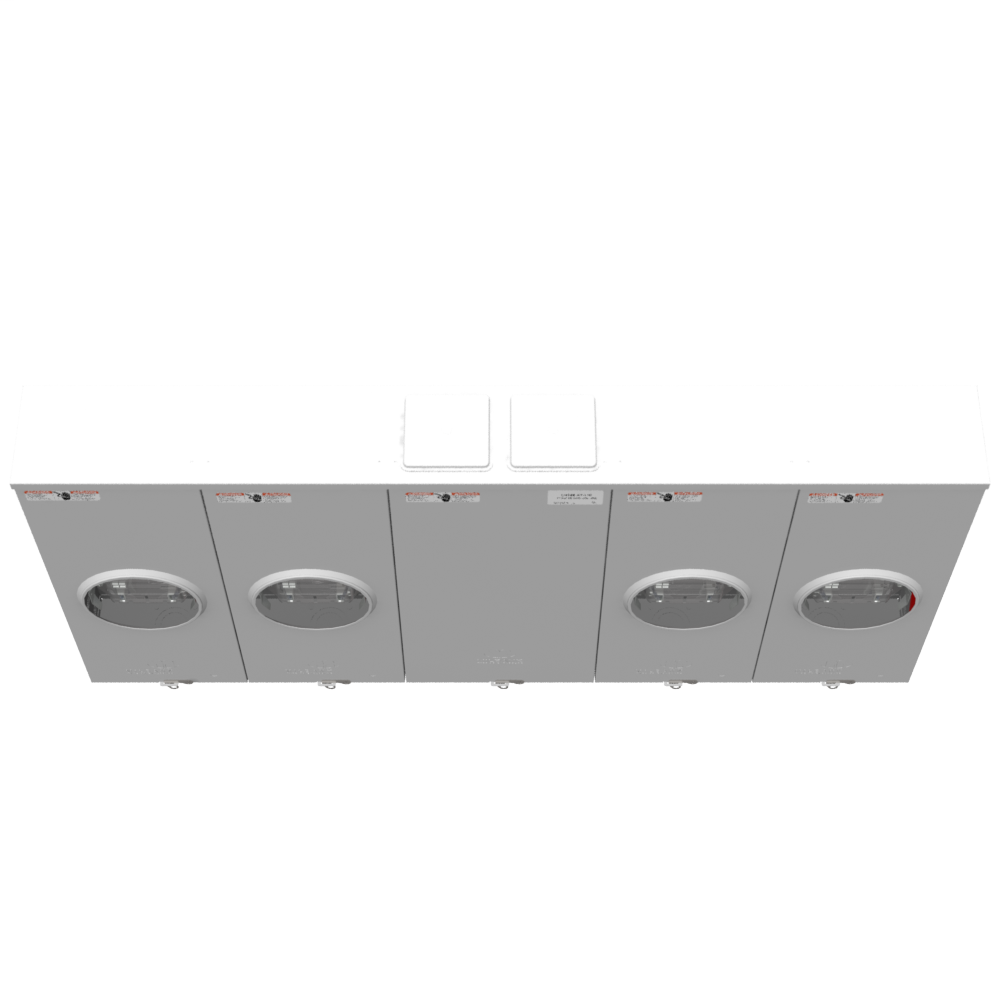

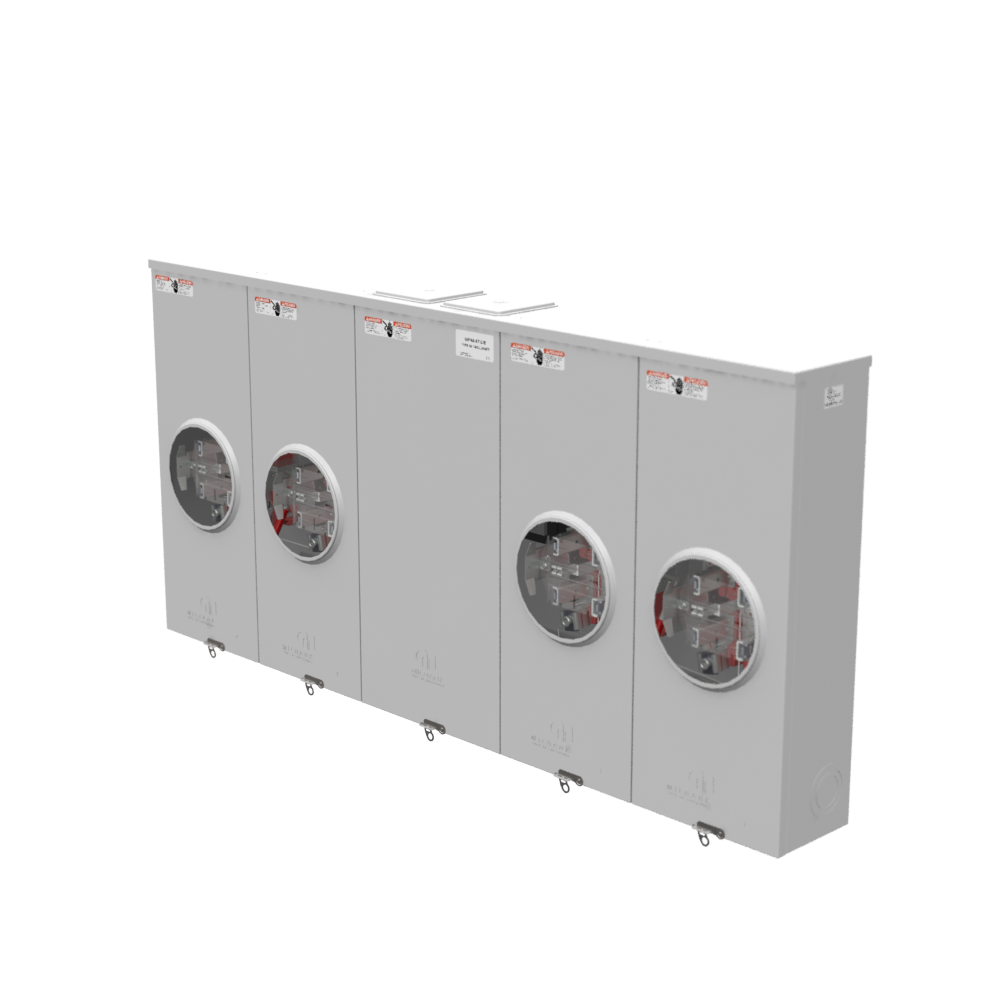

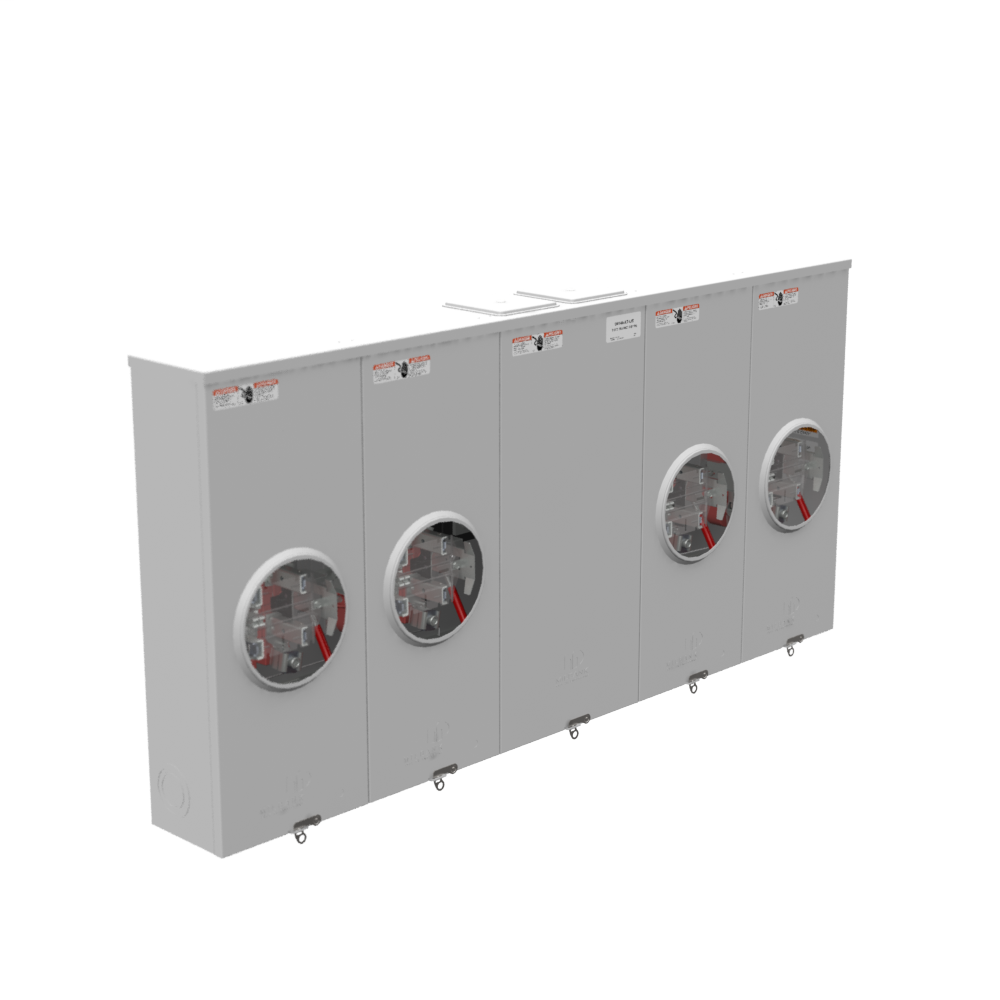

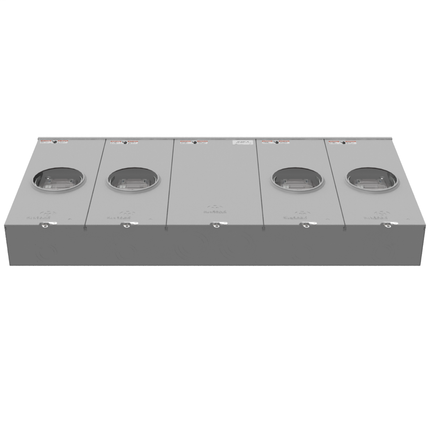

This 5 Terminal Ringless unit by Milbank is designed for residential and commercial electrical distribution applications. It features a lever bypass mechanism with two large closing plates, supporting 4 positions for flexible wiring configurations. Suitable for surface mounting, it accommodates overhead or underground cable entry through a center wireway. This switchgear component is constructed from durable G90 galvanized steel with a powder coat finish, ensuring longevity and corrosion resistance in various environments. It operates at 200 amperes and 60 hertz frequency, supporting single-phase electrical systems with five terminations.

Specifications

• Amperage: 200 amperes
• Frequency: 60 hertz
• Number of Phases: 1
• Number of Terminations: 5
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting Type: Surface Mount
• Cable Entry: Overhead Or Underground With Center Wireway
• Insulation Type: Glass Polyester
• Hub Style: Twin Large Closing Plates
• Product Weight: 107 lbs
• Manufacturer Part #: U4144-XT-LIS

Features

• Lever bypass provides clamping action on meter spades and operates the bypass device
• Ringless design supports multiple position configurations for flexible installation
• Durable construction suitable for both overhead and underground cable entry
• Powder coat finish enhances corrosion resistance for outdoor applications
