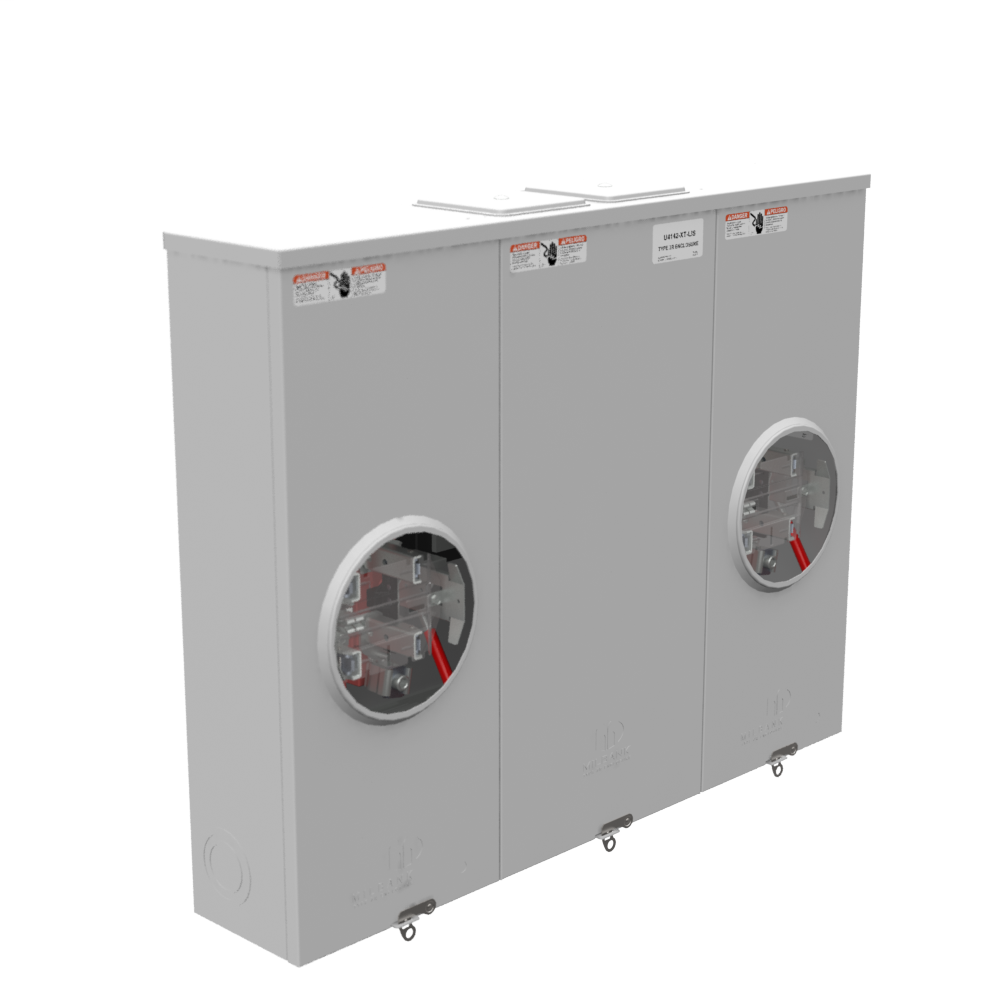

5 Terminal Ringless 2 Large Closing Plates Lever Bypass 2 Position Long Island Lighting Company - Multi-Position Socket

This 5 Terminal Ringless Multi-Position Socket is designed for residential and commercial electrical distribution applications. It supports 200 amperes and operates at 60 hertz frequency, suitable for single-phase power systems. Manufactured by Milbank, this surface mount socket features a lever bypass mechanism and twin large closing plates hub style, providing reliable clamping action on meter spades and bypass operation. It accommodates overhead or underground cable entry with a center wireway and is constructed from G90 galvanized steel with a powder coat finish for durability and corrosion resistance. The insulation type is glass polyester, ensuring electrical safety and performance.

Specifications

• Amperage: 200 amperes
• Frequency: 60 hertz
• Number of Phases: 1
• Number of Terminations: 5
• Material: G90 Galvanized Steel With Powder Coat Finish
• Mounting Type: Surface Mount
• Hub Style: Twin Large Closing Plates
• Cable Entry: Overhead Or Underground With Center Wireway
• Insulation Type: Glass Polyester
• Product Weight: 63 lbs
• Manufacturer Part #: U4142-XT-LIS

Features

• Lever bypass supplies clamping action on meter spades and operates the bypass device
• Ringless design suitable for multi-position installation
• Durable powder coat finish enhances corrosion resistance
• Supports both overhead and underground cable entry with a center wireway
• Equipped with two large closing plates for secure connections
