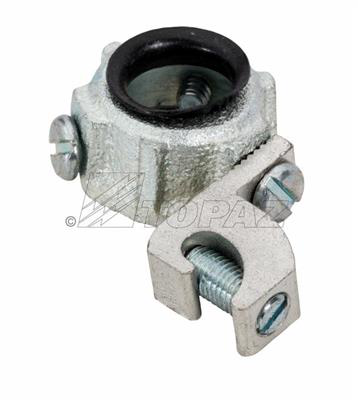

5" Insulated Malleable Iron Metallic Grounding Bushings Threadless – Grounding Solutions

This 5" insulated metallic grounding bushing is designed for use with aluminum lay-in grounding lugs to terminate conduit service. It is suitable for applications involving copper or aluminum bare ground connectors, providing reliable grounding in electrical systems. The product is ideal for electrical distributors and switchgear suppliers requiring durable grounding components compatible with rigid or IMC conduit systems.

Specifications

• Material: Malleable Iron
• Connection: Female Threaded
• Product Weight: 1.37 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 340AMSS
• Size: 5"
• Grounding Lug Wire Size Range: 6 AWG to 250 MCM
• Dimensions (inches): A = 6.10, B = 1.14
• UL Listed

Features

• Protective thermoplastic throat liner rated to 105°C prevents wire insulation damage
• Set-screw, threadless design allows locking the bushing in any desired position
• Constructed with high-grade malleable iron for durability
• Suitable for use on threaded or threadless rigid conduit or IMC
• Plastic liner and round surface prevent damage to wire insulation
• Recommended for indoor or outdoor use with lay-in lug and locknut to terminate service conduit to cabinets

Downloads & Links

• Spec Sheet
