5 INCH X 3 INCH INTERMEDIATE SPACER
SKU: #17217
Part: #S289PLN
UPC: 034481004578
5 INCH X 3 INCH INTERMEDIATE SPACER
SKU: #17217
Part: #S289PLN
UPC: 034481004578
Description

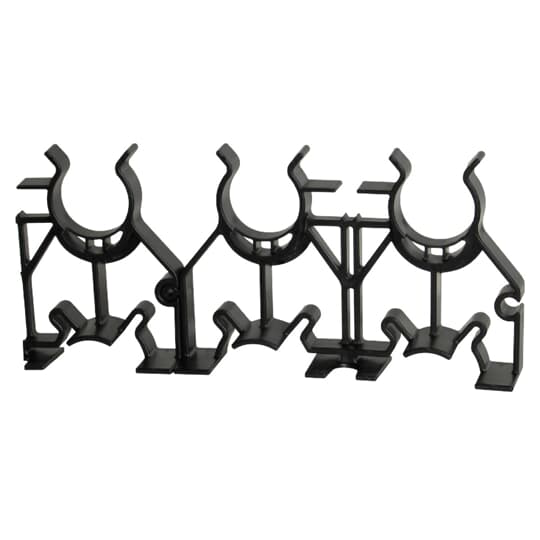

5 INCH X 3 INCH INTERMEDIATE SPACER - Snap-Loc Spacer
The Carlon 5 Inch x 3 Inch Snap-Loc Styrene Intermediate Spacer is designed to provide stability and consistent separation for conduit and duct materials. It is used primarily in electrical installations requiring precise spacing and support, especially in concrete encasement and direct burial applications. This product is suitable for electrical distributors and switchgear suppliers seeking reliable wire and cable management solutions. The Snap-Loc design facilitates easy side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability.
Specifications
- Manufacturer: Carlon
- Manufacturer Part Number: S289PLN
- Material: Non-Metallic (Styrene)
- Size: 5 x 3 Inches
- Product Weight: 10.2 lbs
- UPC: 034481004578
- Country of Origin: United States
- Package Quantity: 30 units per package
- RoHS Status: Compliant with EU Directive 2011/65/EU and Amendment 2015/863
Features
- Side dovetail rail-and-groove design enables side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability
- Locking key ways incorporated into intermediate spacers eliminate the need for costly top spacers
- Compatible with 1 in. and 2 in. Snap-Loc reducers for fixture of smaller conduit sizes inside larger spacers
- Designed specifically for use with nonmetallic duct with maximum outer diameter dimensions per NEMA TC-2, TC-6 and 8, TC-10, and ASTM F512
- Tapered joining slots with maximum tolerances allow easy job site assembly
