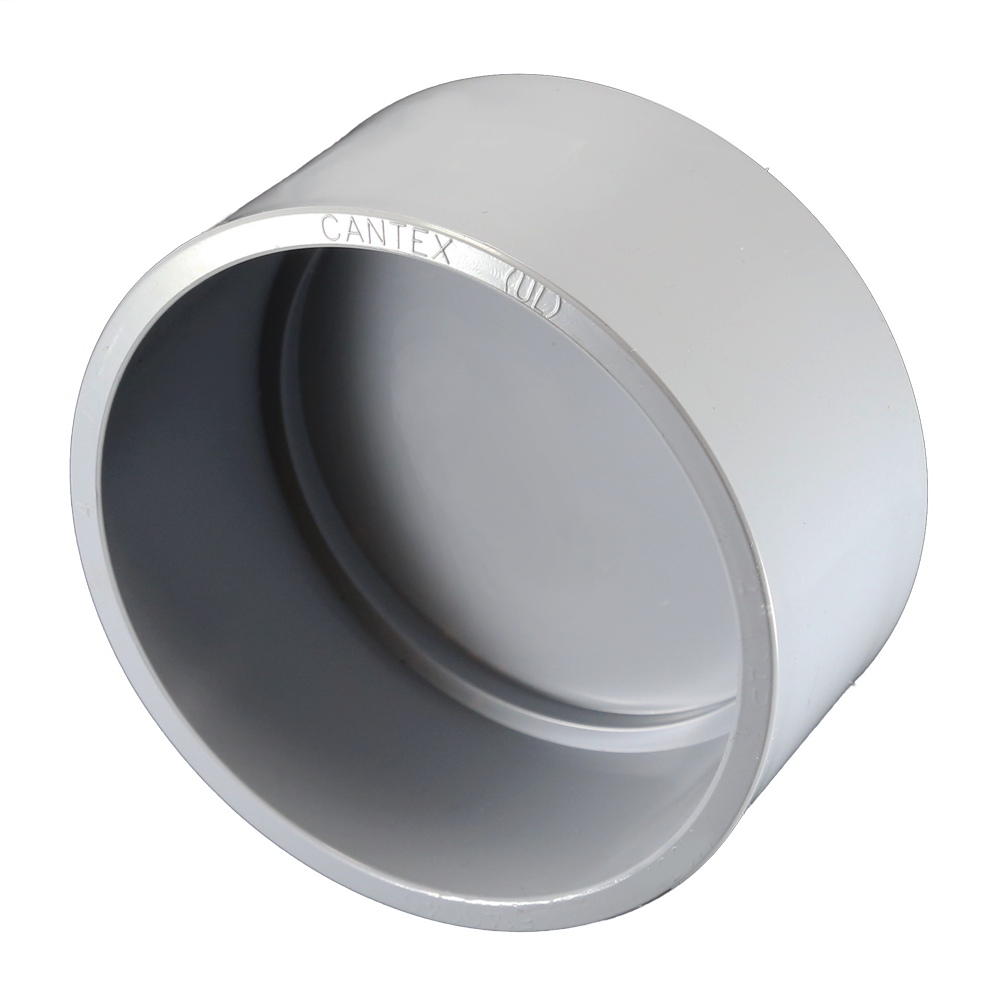

5 in. End Cap - PVC Conduit Fitting for Electrical Applications

The 5 in. End Cap by Cantex is designed to securely cap off PVC conduit ends, either temporarily or permanently, using PVC solvent cement. This product is suitable for electrical distributors and lighting solutions providers requiring reliable conduit closures to protect wiring and cable installations.

Specifications

• Manufacturer: Cantex
• Manufacturer Part #: 5140041
• Size: 5 inches
• Material: Rigid PVC
• Weight: 0.78 lbs
• Carton Quantity: 25
• UPC: 088700527713
• UL Listed (File # E81590)
• Meets NEMA TC3 Requirements
• Dimensions (from technical drawing on page 1 of the PDF):
  • "A" (Height): 5 9/16"
  • "B" (Inner Diameter): 2 1/2"
  • "C" (Outer Diameter): 2 1/2"
  • "D" (Wall Thickness): 5 9/16"
  • "E" (Diameter): 6 1/8"

Features

• Designed for capping PVC conduit ends securely
• Compatible with PVC solvent cement for permanent or temporary installation
• Constructed from durable, rigid PVC material
• UL Listed for safety and compliance
• Flat top design suitable for 5-inch conduit
• Meets industry standards for electrical conduit fittings

Downloads & Links

• Tech Drawing
• Safety Data Sheet
