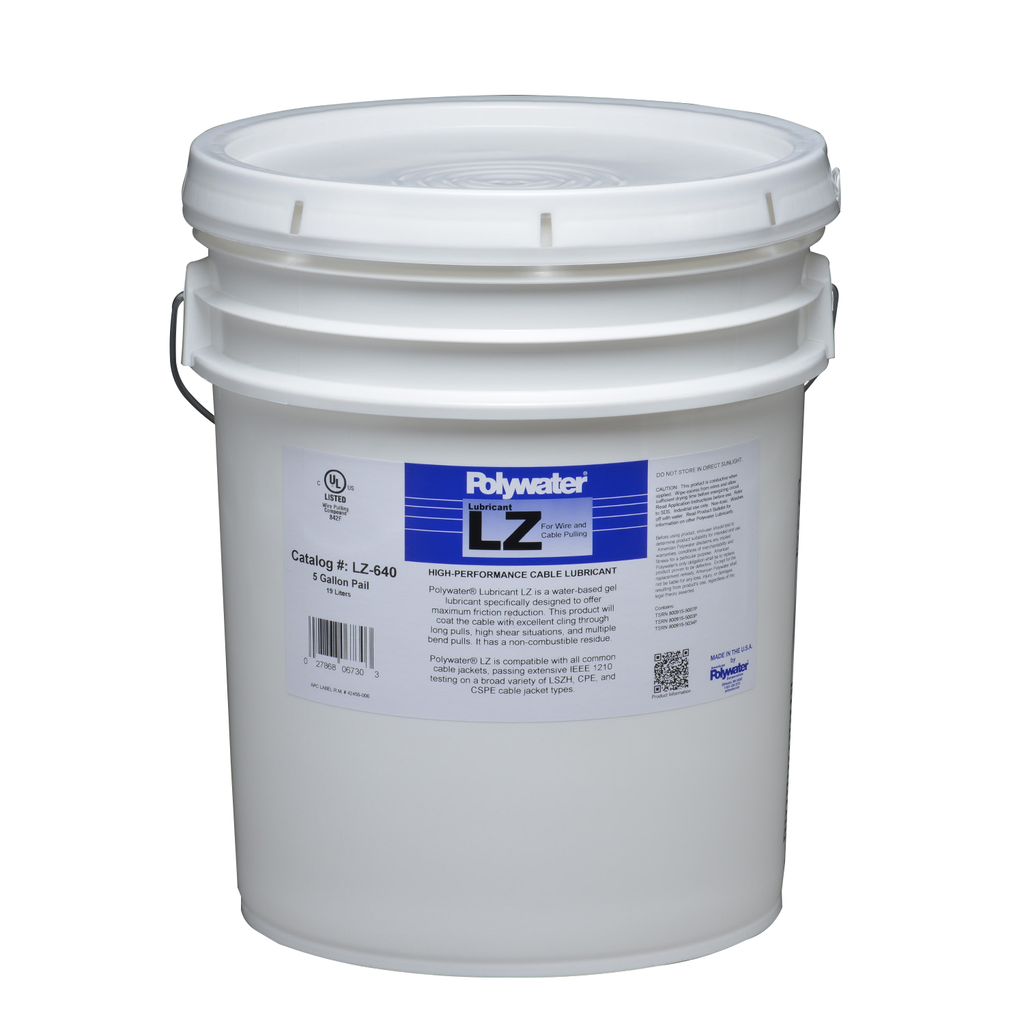

5-Gal Polywater® Lubricant LZ – Cable Pulling Lubricant

Polywater® LZ Lubricant is a high-performance cable pulling lubricant designed for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers. It is compatible with a broad variety of cable jackets, including LSZH/LSHF, CSPE, CPE, XLPE, LLDPE, and PVC, providing excellent tension reduction for all types of cable pulling applications. The lubricant is slow drying, leaves a thin, slippery, nonconductive, and noncombustible residue, and is UL listed for safety compliance.

Specifications

• Manufacturer: American Polywater
• Manufacturer Part #: LZ-640
• Appearance: White, stringy gel
• Viscosity: 35,000‚Äì50,000 cps @ 10 rpm
• pH: 6.5 to 7.5
• VOC Content: 0 g/L
• Package Size: 5-gallon pail (18.9 liters)
• Product Weight: 44 lbs
• Compatible Cable Jackets: LSZH, CSPE, LLDPE, XLPE, CPE, PVC
• Temperature Use Range: 20¬∞F to 120¬∞F (-5¬∞C to 50¬∞C)
• UL Listed and meets Canadian safety standards

Features

• Low Friction Coefficient: Provides maximum tension reduction on all cable jacket types
• Universal Compatibility: Suitable for power, control, and instrumentation cables
• Extensively Tested: Compatible with a broad range of LSZH/LSHF thermoplastic and thermoset jackets
• Slow Drying: Retains lubricity for months after application
• Noncombustible Residue: Does not sustain flame and leaves minimal residue
• Application Flexibility: Can be applied by hand, pumped using Polywater‚Äôs LP-D5 pump, or used with Front End Pack‚Ñ¢ prelubrication bags
• Safe and Environmentally Friendly: Passes aquatic toxicity tests and contains no reportable hazardous components
• Stable: Does not separate or phase out after freeze/thaw cycles or exposure to elevated temperatures

Downloads & Links

• Safety Data Sheet
• Spec Sheet
