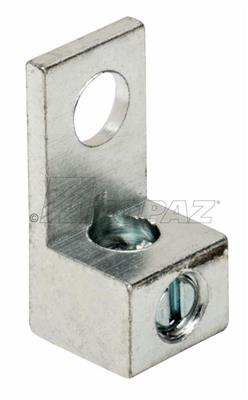

5/16" Mechanical Lug Single, Aluminum #6 - 350 MCM – Mechanical Lug

This 5/16" single-hole mechanical lug by Southwire is designed for terminating electrical conductors ranging from 6 AWG to 350 MCM. Constructed from high-strength aluminum alloy, it provides maximum conductivity with low contact resistance. Rated for use in environments up to 90°C, this lug is suitable for grounding and wire applications in load centers or metal enclosures. It is UL listed and backed by a lifetime guarantee, making it a reliable component for electrical distributors and switchgear suppliers.

Specifications

• Material: Aluminum
• Cable Size: 6 AWG to 350 MCM
• Number of Holes: 1
• Temperature Rating: 90°C
• Recommended Torque: Up to 600 lbs.
• Manufacturer Part #: 817
• Product Weight: 0.1400 lbs

Features

• Single hole assembly for efficient mechanical connection
• High strength aluminum alloy ensures low contact resistance
• Provides positive grounding points in electrical enclosures
• UL listed for safety and reliability
• Backed by Topaz lifetime guarantee

Downloads & Links

• Spec Sheet
