4IN EVO 1/2 GANG 20A DUP REC/PLT-25 25 FOOT LEADS Poke-Thru Device

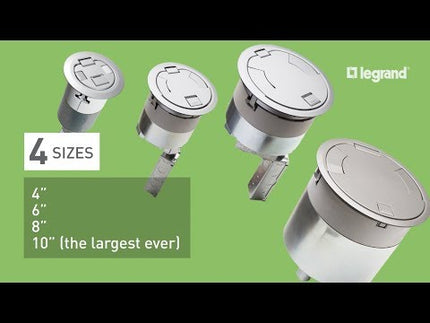

Designed for retrofit and new construction, the Wiremold Evolution Series 4” Poke-Thru device provides recessed access to power, communications, and audio/video services below floor level, ensuring maximum device protection. Ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers servicing commercial buildings, healthcare facilities, classrooms, and open-space architecture environments.

Specifications

• Manufacturer: Wiremold
• Manufacturer Part #: 4REC-25
• Device Type: 4" Poke-Thru, 1/2 gang
• Receptacle: Proprietary Tamper-Resistant 20A Duplex Receptacle
• Leads Length: 25 feet
• Recess Depth: 3 3/4" (95mm) below floor surface level
• Conduit Bottom Feed: One 3/4" trade size conduit stub located below receptacle
• Order Minimum: 1 unit
• Product Weight: 1.662 lbs
• Country of Origin: United States
• Made in USA: Yes
• UL Fire Classified: Up to 2-hour rated floors
• UL Listed and Classified to U.S. and Canadian safety standards

Features

• Recessed design with two compartments for power and low voltage devices, providing maximum protection and device longevity
• Die-cast aluminum cover assembly available in multiple finishes (powder coated and durable finishes) with sliding doors to protect cables and reduce trip hazards
• Pre-pour sleeve option for easy installation and to eliminate coring labor costs
• TopGuard‚Ñ¢ Protection meeting UL scrub water exclusion requirements for tile, carpet, and wood floors
• Meets ADA Accessibility Guidelines with beveled trim flange slope no greater than 1:2 ratio
• Suitable for use in air handling spaces per National Electrical Code Sec 300-22(C)
• Flush tile version cover available for tile applications, adjustable to floor covering height

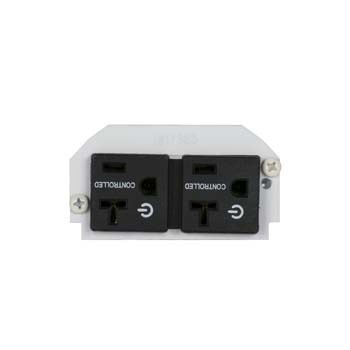

• Includes proprietary tamper-resistant duplex receptacle with 25-foot leads for flexible wiring options

Downloads & Links

• Evolution Series 4"" Poke-Thru Devices"
• Evolution Series Poke-Thru Devices Brochure
• Open Spaces Brochure
• Spec Sheet
• Evolution Series 4"" Poke-Thru Devices"
• Evolution Series Sell Sheet
• Evolution Series Poke Thru Device Sell Sheet
• Evolution Series 4"" Poke-Thru Devices"
• 26 27 26.13- Recessed Outlet Poke-Thru Devices
• 16141- Recessed Outlet Poke-Thru Devices
• Poke-Thru Flip Covers Brochure
