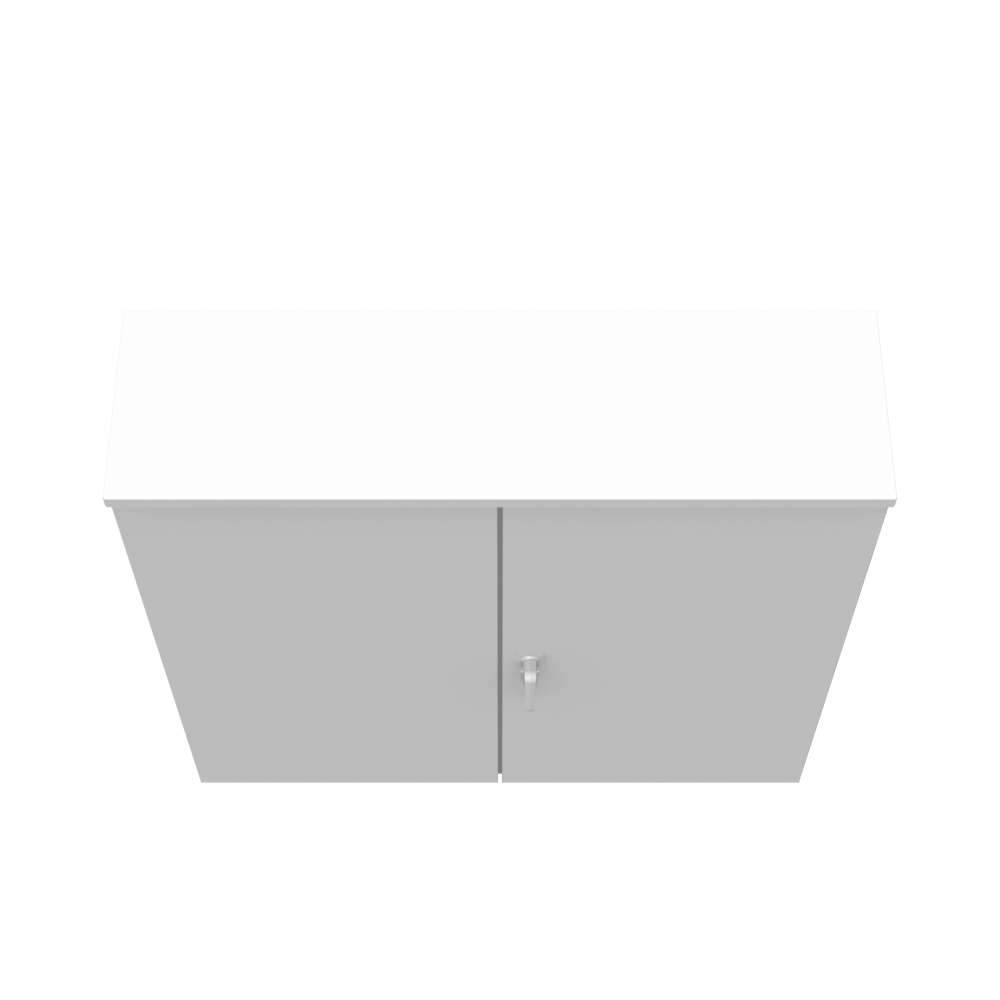

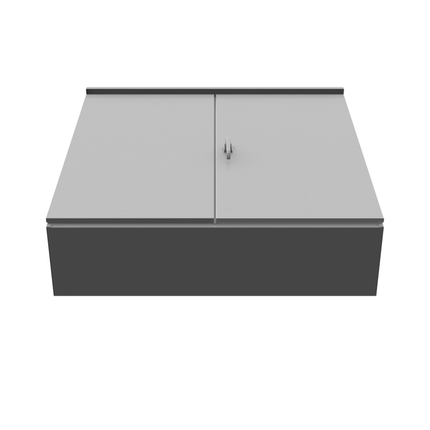

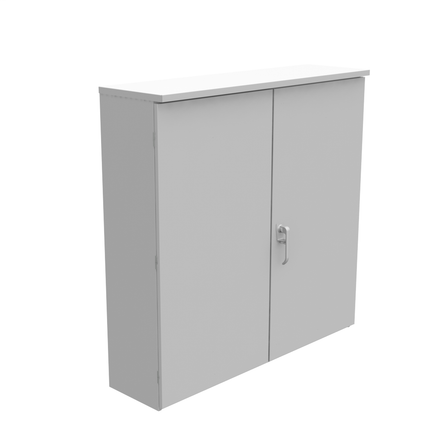

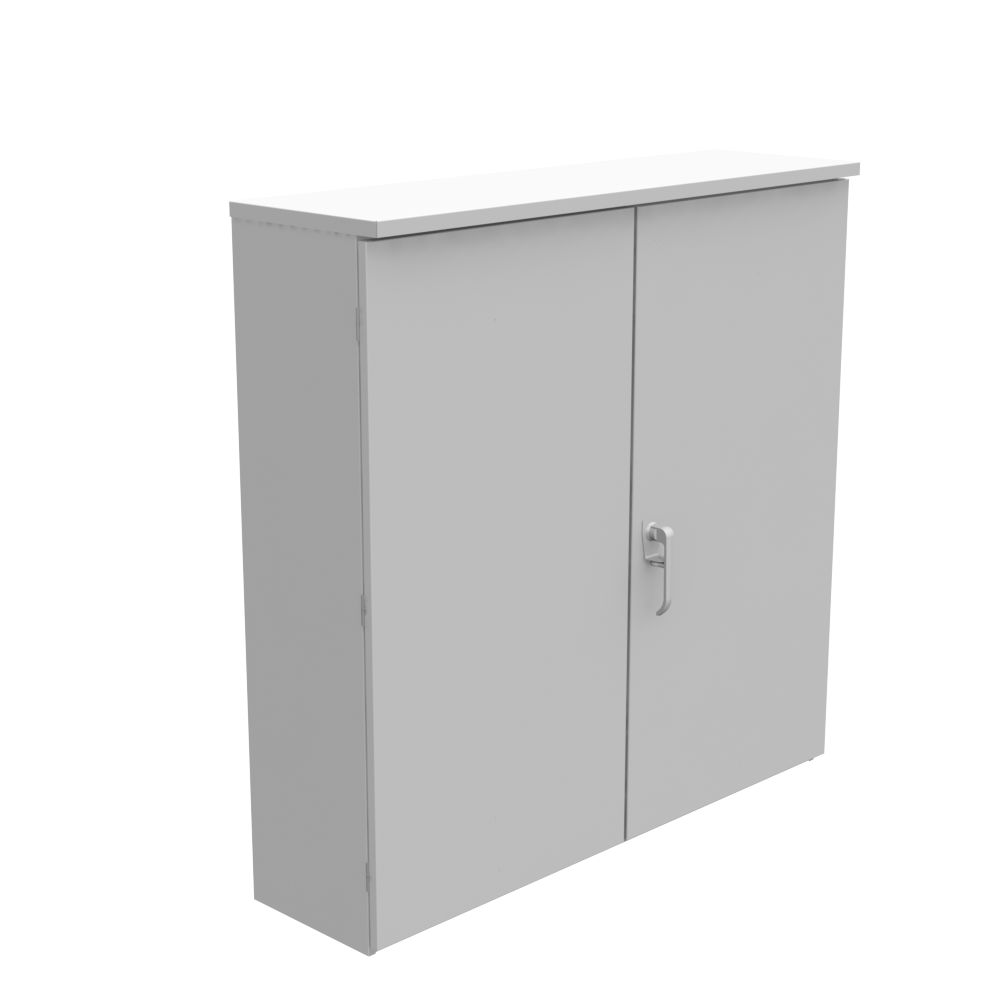

48x12x48 Hinge Cover Type 3R Steel Current Transformer Enclosure

This Milbank 48x12x48 Hinge Cover Type 3R Steel enclosure is designed as a current transformer cabinet suitable for outdoor and indoor use, providing protection against rain, sleet, snow, and dripping water. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers, this enclosure offers robust housing for current transformers and related electrical components.

Specifications

• Application: Current Transformer Enclosure
• Dimensions: 48" W x 12" D x 48" H
• Material: G90 Galvanized Steel with Powder Coat Finish
• Color: ANSI 61 Gray
• NEMA Rating: Type 3R (UL 50, CUL equivalent to CSA)
• Mounting: Pad Mount or Wall Mount
• Cable Entry: No Knockouts
• Weight: 210 lbs
• Doors: Double Doors, Overlapping with No Center Post
• Handle: Pad-lockable Three Point Handle
• Cover: Hinge Cover with Galvanized Lift-off Hinges and Stainless Steel Pins

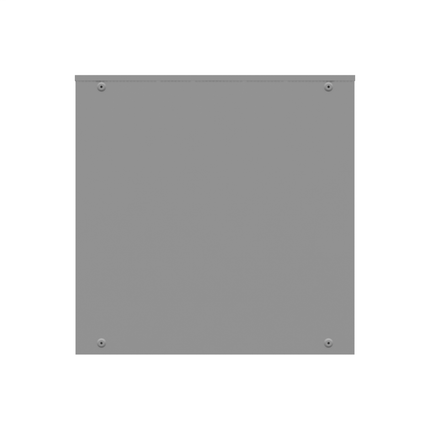

• Back Panel: Panel Mounting Studs Provided for Optional Back Panels
• Finish: ANSI 61 Gray Polyester Powder Coating over Phosphatized G90 Galvanized Steel

Features

• Designed to meet NEMA Type 3R standards for outdoor protection against weather conditions
• Seam-free sides, front, and back with a drip shield top to prevent water ingress
• Pad-lockable draw latch for secure access control
• Durable powder coat finish for corrosion resistance and long service life
• Overlapping doors without center post for easier access and installation
• Versatile mounting options: pad mount or wall mount
• Optional back panels available for enhanced installation flexibility
