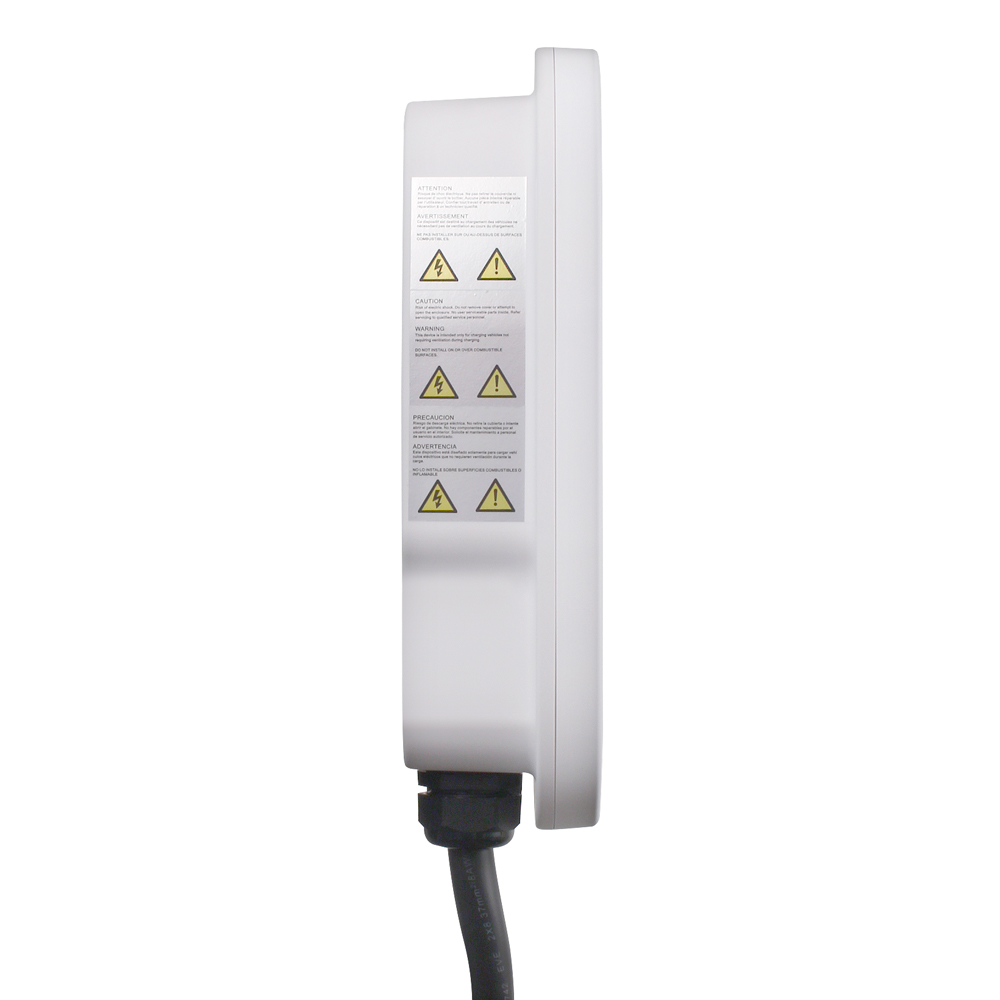

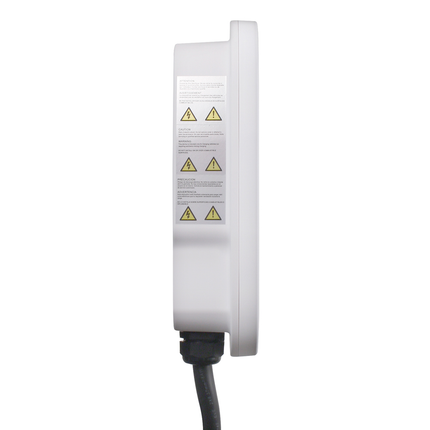

48 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi – EV Series Smart Home Charger

The Leviton 48 Amp Level 2 Electric Vehicle Charging Station is designed for residential applications, providing efficient and reliable electric vehicle (EV) charging. This hardwired charger delivers up to 48 amperes at 208/240 VAC with an 11.6 kW output, supporting SAE J1772 AC charging connectors compatible with all EVs including Tesla (with adapter). Ideal for electrical distributors and lighting solutions providers looking to expand into EV charging infrastructure, this station offers Wi-Fi connectivity for remote monitoring and control via the My Leviton app, enabling users to view charging status, receive fault notifications, and schedule charging sessions.

Specifications

• Amperage: 48 amperes
• Voltage: 208/240 VAC, Single Phase
• Power Output: 11.6 kW

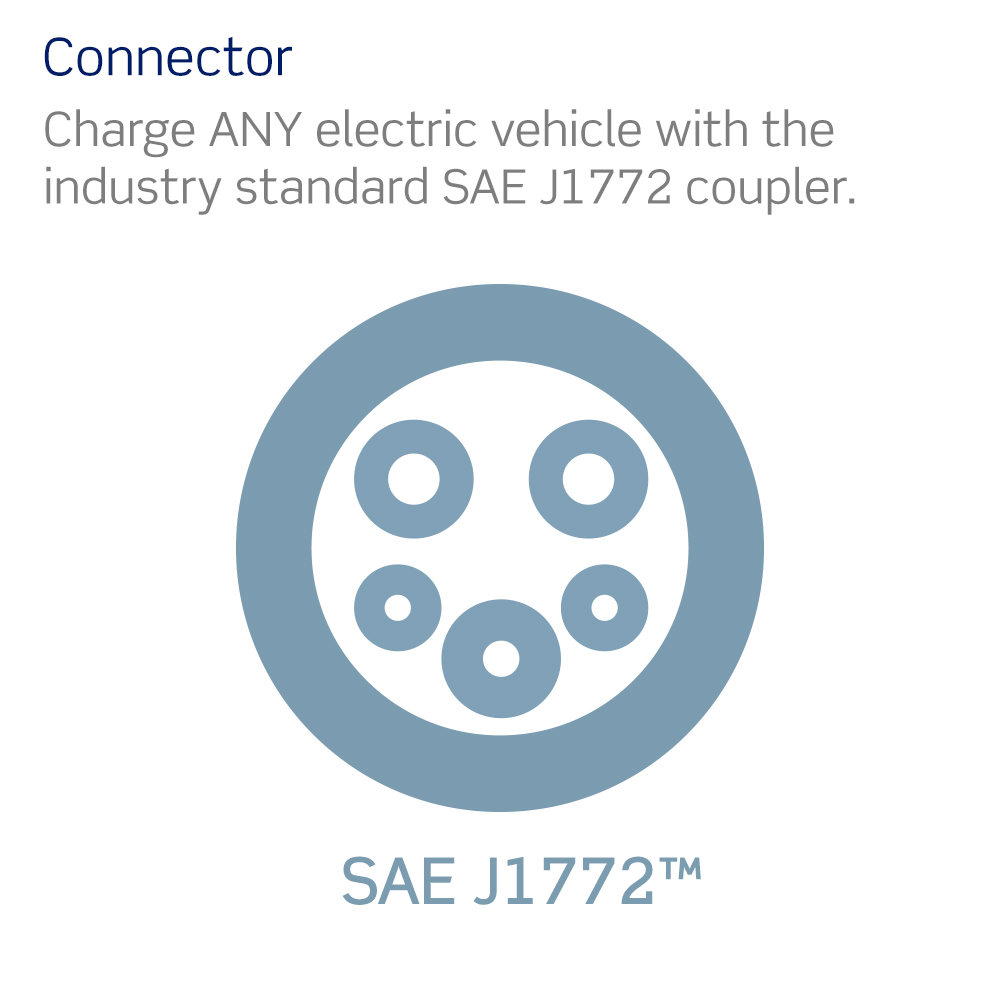

• Charge Connector: SAE J1772
• Cord Length: 18 feet
• Operating Temperature: -30¬∞C to 50¬∞C (-22¬∞F to 122¬∞F)
• Protection Level: IK08 & IP54
• Installation Type: Wall mount or pedestal mount
• Wi-Fi Function: 802.11 b/g/n compatible
• Weight: Approximately 6.5 kg (14.3 lbs)
• Dimensions: 360.5 mm x 249.94 mm x 86.94 mm (14.2 in x 9.8 in x 3.4 in)
• Manufacturer Part #: EV48W
• Country of Origin: China

Features

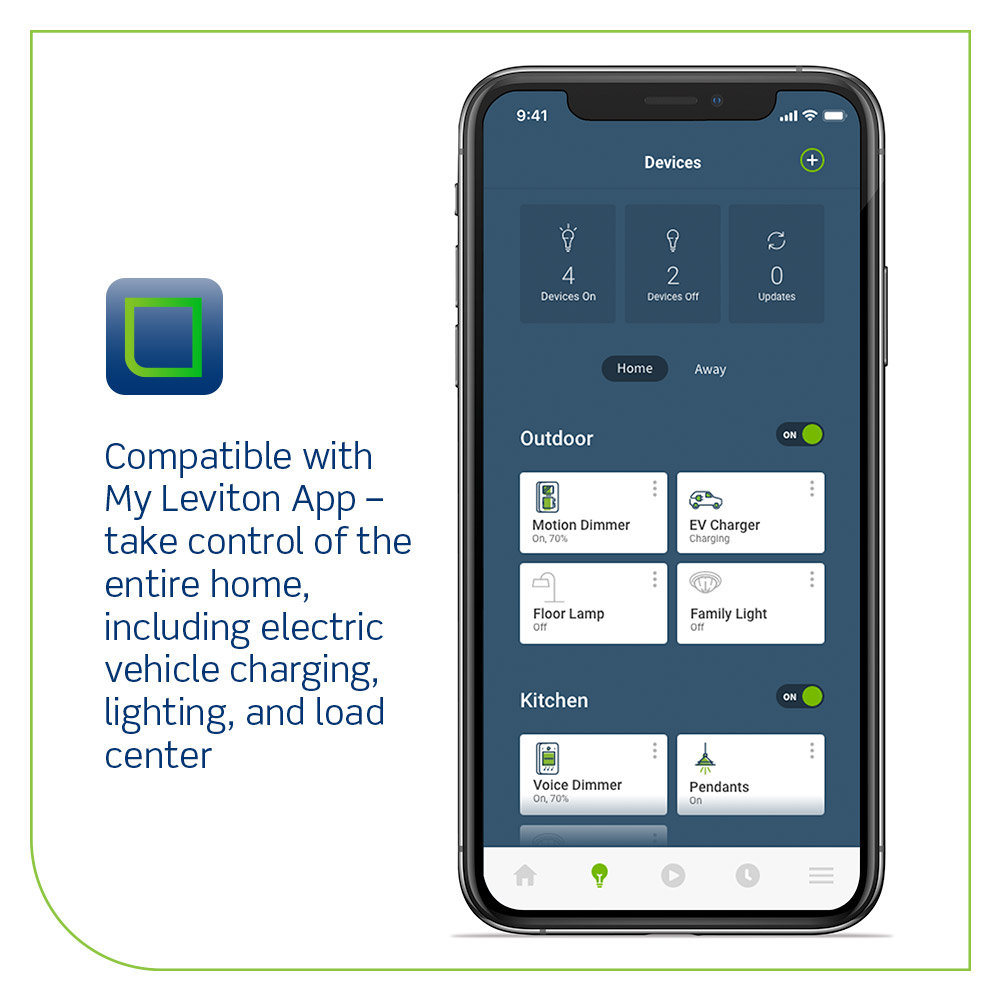

• Wi-Fi enabled for remote monitoring and control via My Leviton app

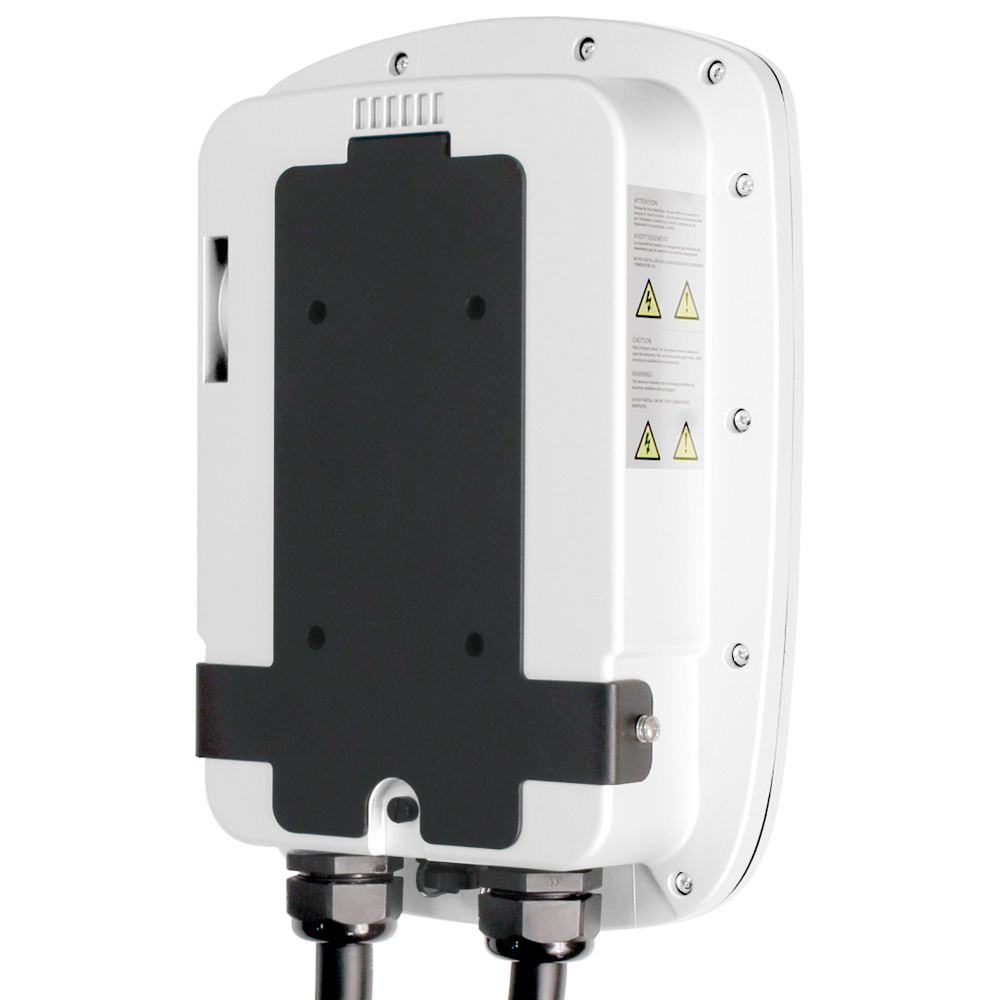

• Includes mounting bracket and pre-attached input cable for easy installation
• Optional RFID control for user access management
• Hardwired installation ensures secure and stable power delivery
• Compatible with all EVs using SAE J1772 connectors

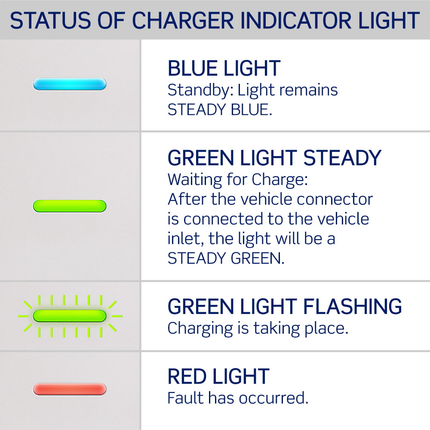

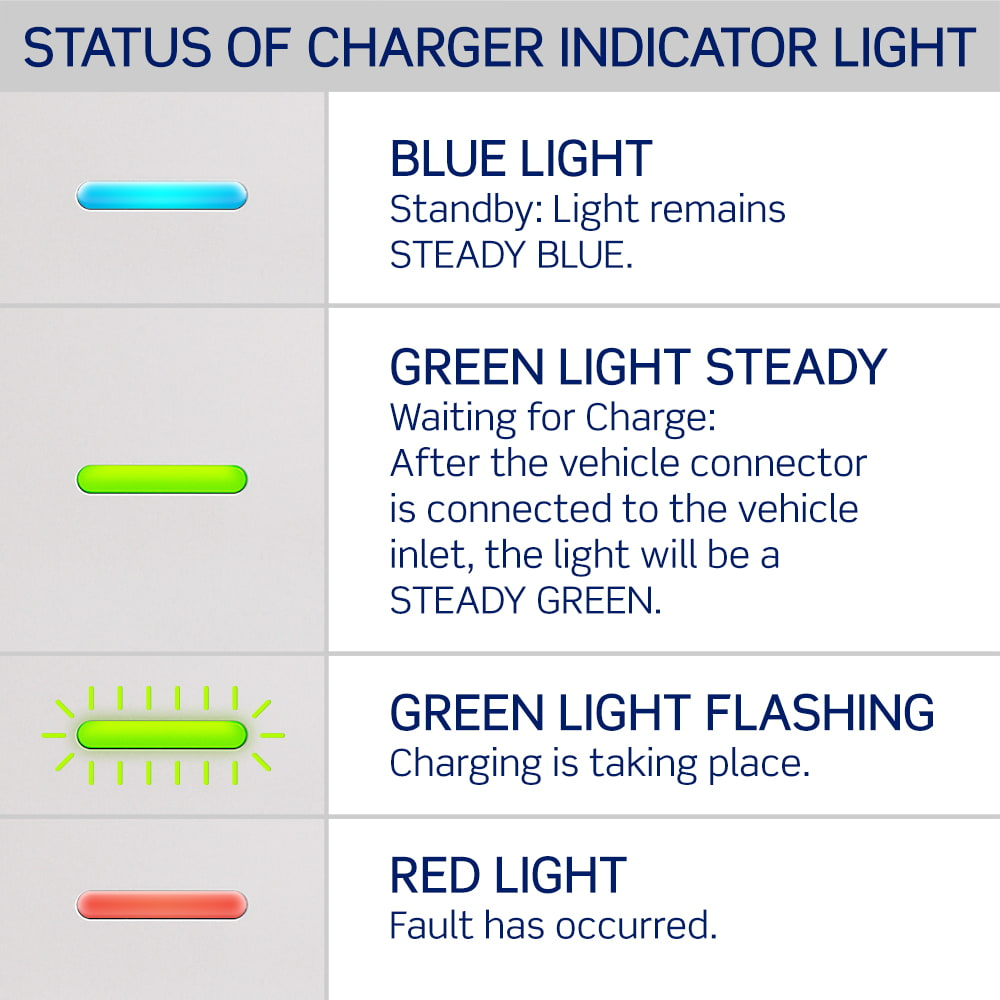

• LED status indicators provide clear charging status and fault alerts
• Designed for residential use with robust build and weather resistance
• Supports scheduling for off-peak charging to optimize energy costs
