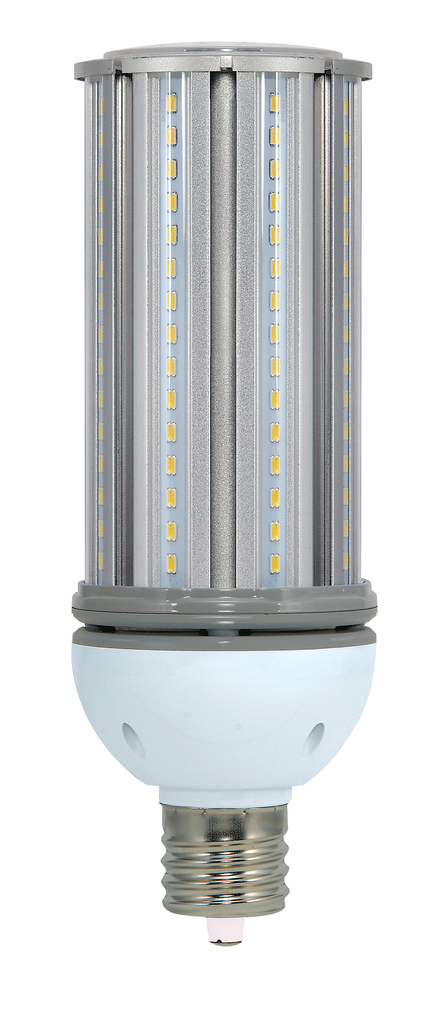

45 Watt LED HID Replacement 4000K Mogul Extended Base Lighting Solution

This 45 Watt LED HID Replacement lamp by Satco is designed for efficient lighting applications requiring a cool white 4000K color temperature. It is suitable for direct wiring in electrical distribution setups and lighting solutions where HID replacement is needed. The lamp features a Mogul extended base (EX39) and operates within a wide voltage range of 100-277 volts, making it compatible with various commercial and industrial switchgear and lighting systems.

Specifications

• Manufacturer: Satco
• Manufacturer Part #: S29673
• Wattage: 45W
• Incandescent Equivalent: 300 watts
• Lumens: 5850 lumens
• Color Temperature: 4000 kelvins (Cool White)
• Beam Spread: 300¬∞
• Base Type: Mogul Extended (EX39)
• Operating Voltage: 100-277V AC
• Amperage: 0.450-0.162 amperes
• Rated Life: 50,000 hours
• IP Rating: IP65 (suitable for wet locations)
• Operating Temperature Range: -20¬∞C to +40¬∞C (-4¬∞F to +104¬∞F)
• Dimensions: Length 10.75 in, Diameter 3.69 in
• Weight: 2.15 lbs
• Finish: Clear lens with gray housing
• Dimmable: No
• Safety Listing: cULus
• RoHS and FCC Compliant
• DLC Approved
• Rated for Enclosed Fixtures: Yes

Features

• LED technology provides energy-efficient replacement for 300W incandescent and 175W HID lamps
• Ballast bypass design for direct wiring (100-277V), eliminating the need for existing ballasts
• High lumen output of 5850 lumens for bright, consistent lighting
• Durable IP65-rated construction suitable for wet and outdoor environments
• Long rated life of 50,000 hours reduces maintenance and replacement frequency
• Clear lens and wide 300¬∞ beam spread for broad light distribution
• Compatible with up or down burning positions
• Meets industry safety and environmental standards including cULus listing and RoHS compliance

Downloads & Links

• Spec Sheet
