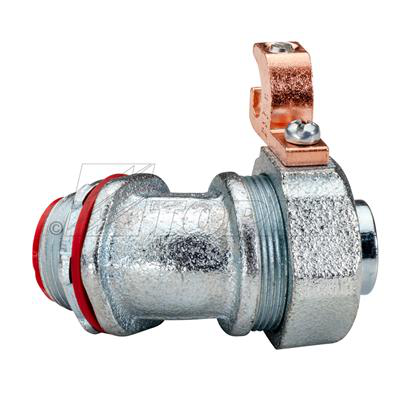

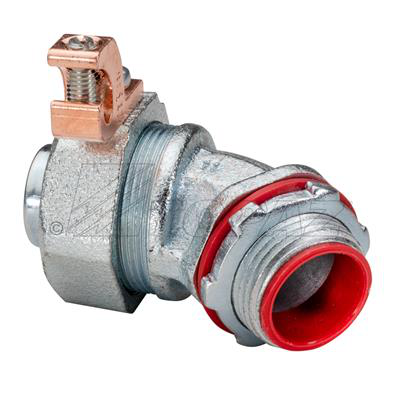

45° Liquidtight Connector with Copper Grounding Lug 1-1/4"
SKU: #172105
Part: #234CSGR
UPC: 751338033467
45° Liquidtight Connector with Copper Grounding Lug 1-1/4"
SKU: #172105
Part: #234CSGR
UPC: 751338033467
Next day delivery
Description
45° Liquidtight Connector with Copper Grounding Lug 1-1/4" – Liquidtight Conduit Fitting
This 45° liquidtight connector with copper grounding lug is designed to connect liquidtight conduit and terminate an external bonding conductor running parallel to the conduit. Manufactured from malleable iron with a zinc electroplated finish, it provides durability and corrosion resistance. The insulated throat protects conductors from abrasion damage. This product is UL listed and suitable for use in hazardous locations as specified by NEC codes, making it a reliable choice for electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers.
Specifications
- Conduit Size: 1-1/4"
- Material: Malleable iron with zinc electroplated finish
- Grounding Lug: Copper lay-in grounding lug
- Weight: 1.94 lbs
- UL Listing: UL 467, UL 486A
- Standards: Fed. Spec W-S-610E, NEMA GR 1-2017
Features
- Liquidtight, raintight, and oiltight design
- Insulated throat to protect conductors from abrasion
- Copper lay-in grounding lug for effective grounding
- Zinc electroplated finish for enhanced durability
- Suitable for hazardous locations under NEC 501-4(b), 502-4(a), (2)503-3(a) Class 1 Div.2, Class II Div.1 and 2, Class III Div.1 and 2
- Meets grounding requirements for sizes 3/8" through 1-1/2" under NEC 351-I
