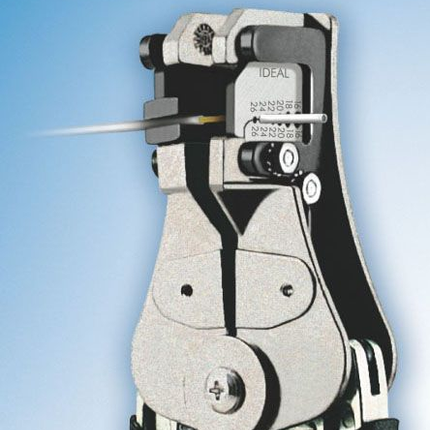

45-639, Wire Stripper – Precision Wire Stripping Tool

The 45-639 Wire Stripper from IDEAL Industries is a precision tool designed for stripping 20-26 AWG solid or stranded wire, specifically meeting MIL-W-16878 Type EE specifications. This lightweight wire stripper is engineered for improved operator comfort and durability, making it suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable preparation tools in lighting solutions and electrical installations.

Specifications

• Application: 20-26 AWG Grit pad. Strips solid or stranded wire. For MIL-W-16878 Type EE
• Body Material: Die-Cast Zinc
• Length: 3/4 Inch
• Product Weight: 0.4500 lbs
• Manufacturer: IDEAL Industries
• Manufacturer Part #: 45-639
• UPC: 783250456390

Features

• Light-weight design weighing 50% less than full-sized counterparts for enhanced mobility and operator comfort
• Precision counter-bored die-type blades that meet military stripping specifications, ensuring nick-free wire stripping
• One-step spring-action mechanism reduces hand pressure by one-third per strip actuation
• Optional short-stop latch and transparent wire stop for consistent strip lengths and wire strand protection
• Sturdy die-cast zinc frame with cushioned plastic grips for durability and ease of use
