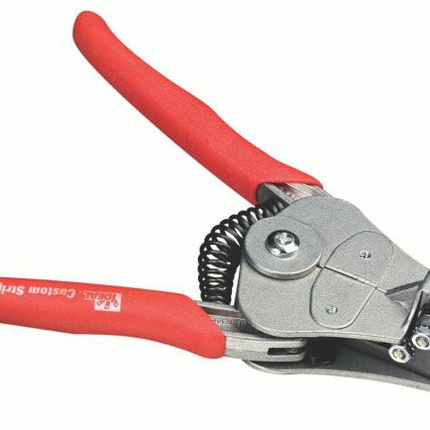

45-2776, Wire Stripper - Precision Wire Stripper

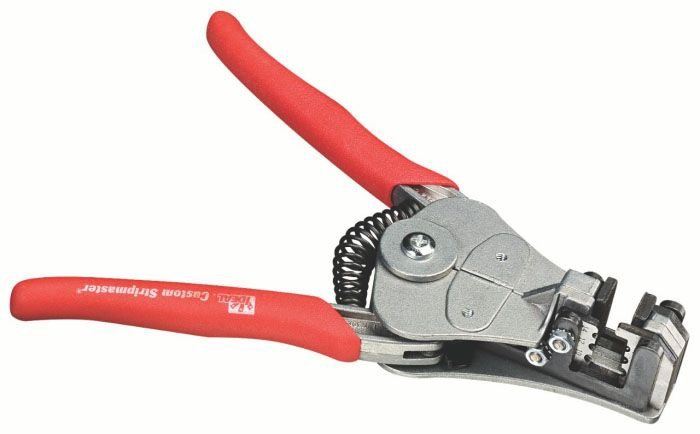

The 45-2776 Wire Stripper, part of the Custom Stripmaster® Lite Wire Strippers by IDEAL Industries, is a lightweight, precision tool designed for accurate wire stripping in electrical distributor and lighting solutions applications. It is engineered to strip 12 to 14 AWG solid or stranded wire with reduced hand pressure, improving operator comfort and productivity. Constructed from sturdy die-cast zinc, this wire stripper is 50% lighter than full-sized models, making it suitable for tasks requiring mobility and precision in wire and cable handling.

Specifications

• Manufacturer Part #: 45-2776
• Body Material: Die-Cast Zinc
• Wire Range: 12 to 14 AWG solid or stranded wire
• Product Weight: 0.9 lbs
• Meets SAE-AS5768 Standards

Features

• Precision counter-bored die-type blades meet Military Stripping Specifications, ensuring nick-free wire stripping
• One-step spring-action design reduces hand pressure by one-third per strip
• Optional short-stop latch and transparent wire stop for consistent strip lengths
• Compact size fits comfortably in the hand, enhancing productivity
• Gripper pads hold wire securely in centerline alignment with the blade
• Cushioned plastic grips for operator comfort
• Durable die-cast zinc frame construction
