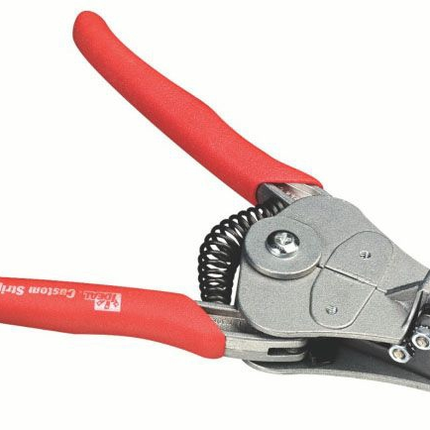

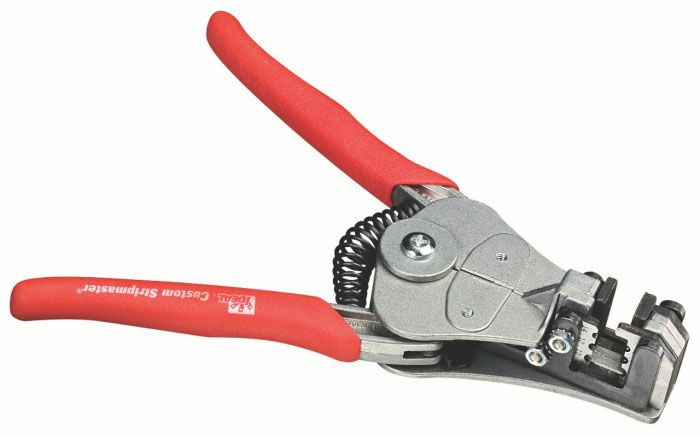

45-2565, Wire Stripper - Precision Wire Stripping Tool

The 45-2565 Wire Stripper by IDEAL Industries is a precision hand-held tool designed for fast and accurate wire stripping in commercial and precision electrical applications. Constructed from durable die-cast zinc, this lightweight wire stripper provides mobility and high productivity for electrical distributors and switchgear suppliers requiring reliable wire and cable preparation. Its one-step, squeeze-action stripping mechanism, combined with precision counter-bored die-type blades, ensures nick-free stripping of solid and stranded wire from 10 to 30 AWG. The spring-action mechanical design offers extra leverage, reducing operator effort and enhancing efficiency in lighting solutions and other electrical installations.

Specifications

• Manufacturer: IDEAL Industries
• Manufacturer Part #: 45-2565
• Body Material: Die-Cast Zinc
• Wire Range: 10 to 30 AWG solid and stranded wire
• Product Weight: 0.9 lbs
• UPC: 783250422845
• Meets SAE-AS5768 Standards

Features

• One-step, squeeze-action stripping for fast and accurate wire insulation removal
• Precision counter-bored die-type blades that cut insulation without damaging the conductor
• Spring-action mechanical design reduces hand pressure and operator fatigue
• Customizable with interchangeable gripper pads and blade sets to match stripping requirements
• Optional short-stop latch and transparent wire stop for consistent strip lengths
• Lightweight and sturdy die-cast zinc frame for maximum mobility and durability
