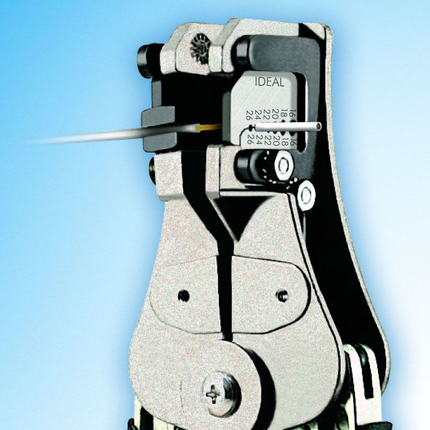

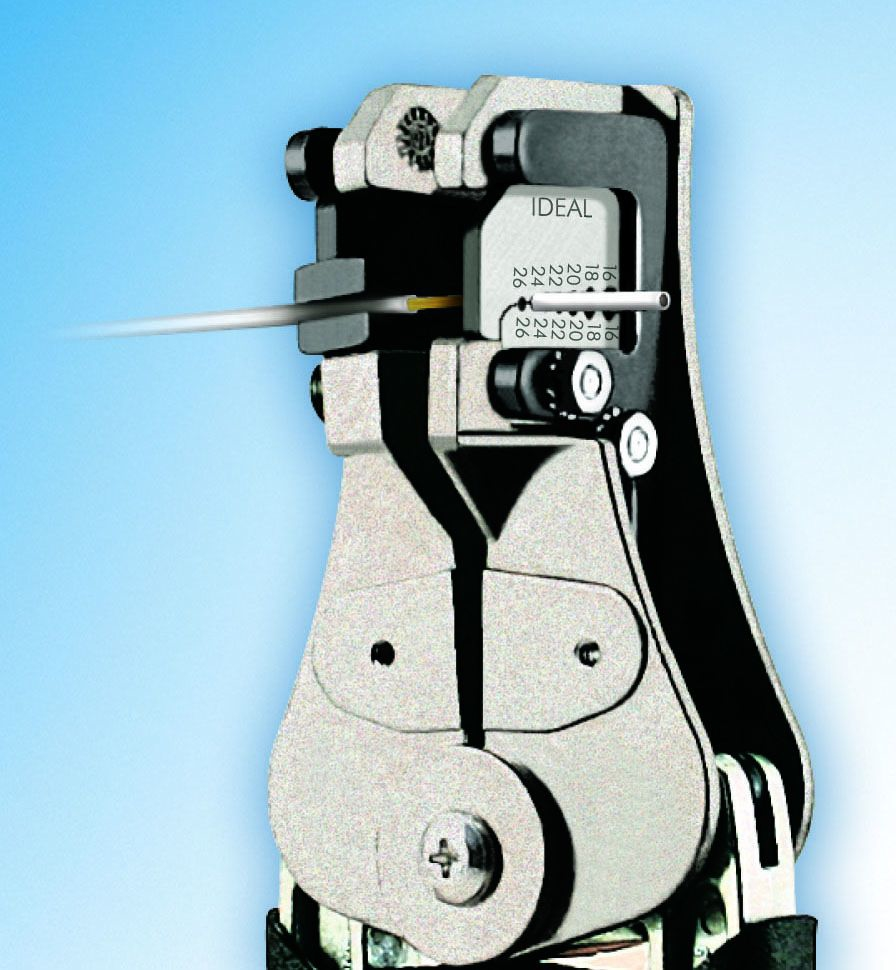

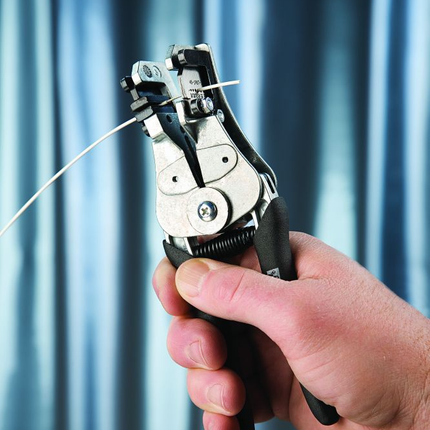

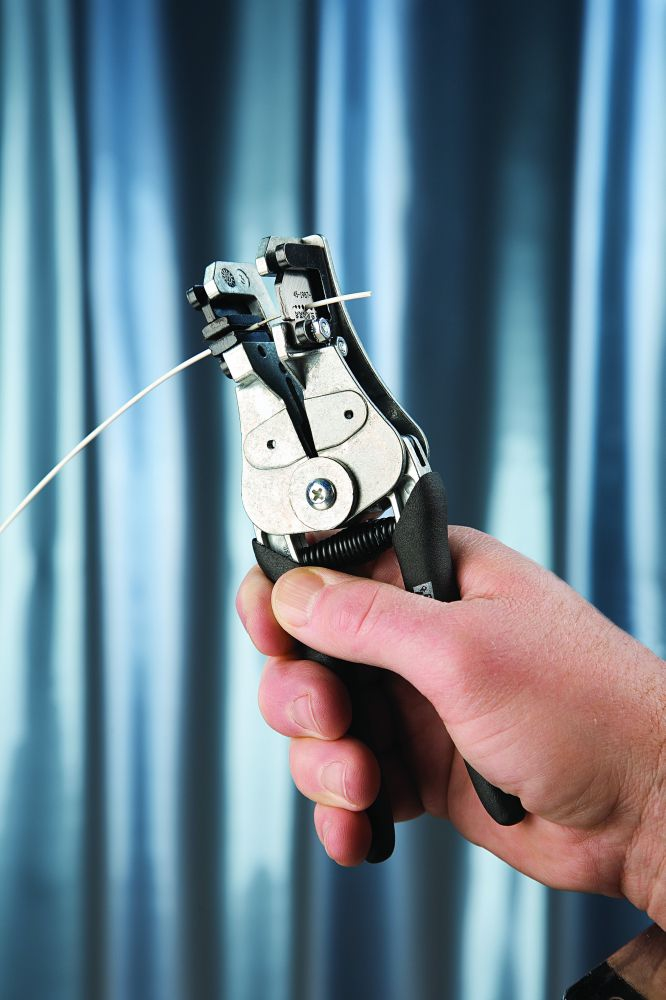

45-2125, Wire Stripper – Precision Wire Stripping Tool

The 45-2125 Wire Stripper from IDEAL Industries is a precision hand tool designed for efficient wire stripping in electrical distribution and lighting solutions applications. It is part of the Custom Stripmaster® Lite Wire Stripper series, engineered for improved operator comfort and durable performance. This lightweight tool is ideal for wire and cable preparation tasks requiring accuracy and ease of use, making it suitable for electrical distributors and switchgear suppliers focused on precision wiring.

Specifications

• Manufacturer: IDEAL Industries
• Manufacturer Part Number: 45-2125
• Body Material: Die-Cast Zinc
• Length: 3/4 Inch
• Product Weight: 0.4 lbs
• Wire Range: 16 to 24 AWG (according to MIL-SPEC application guide)

Features

• Lightweight design weighs 50% less than full-sized counterparts for improved operator comfort
• Precision die-type blades with counter-bored holes to cut insulation without damaging conductors
• One-step spring-action mechanical design reduces hand pressure required for stripping
• Optional short-stop latch and transparent wire stop for consistent strip lengths
• Sturdy die-cast zinc frame ensures durability and high productivity
• Compatible with a wide selection of precision blade configurations to match specific stripping needs
